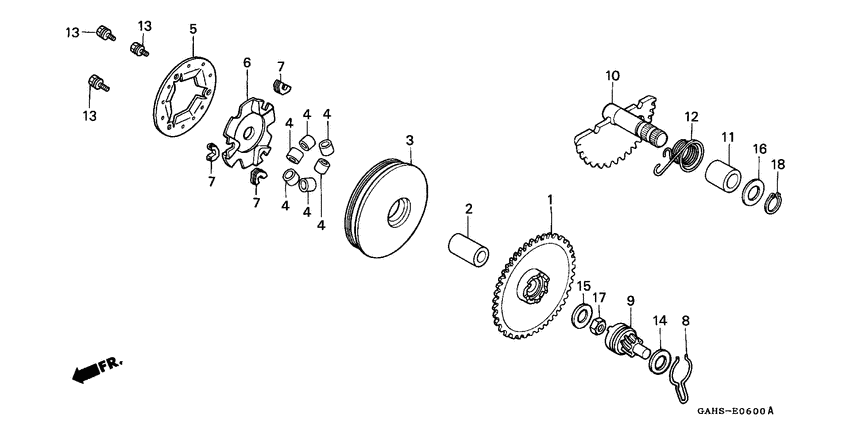

Drive face/ kick starter spindle Diagram Honda SK50
- Year
- 1993
- Model code
- SK50MP
- Sales region
- Spain
- Frame
- VTMAF27900E000002 - VTMAF27900E006201
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22102-GAH-720 Face comp.,drive |
22102-GAH-720 |
from US $41.41 |
||
|
2
|
2
22105-GAH-720 Boss,drive face |
22105-GAH-720 |
from US $15.14 |
||
|
3
|
3
22110-GW0-000 Face comp.,movabl |
22110-GW0-000 |
US $67.18 |
||
|
4
|
4
22123-GZ0-000 Roller set,weight |
22123-GZ0-000 |
from US $17.86 |
||
|
5
|
5
22126-GAH-600
Seal
|
22126-GAH-600 |
— | ||
|
6
|
6
22131-GAH-720 Plate,ramp |
22131-GAH-720 |
US $16.59 |
||
|
7
|
7
22011-GW0-000 Slide piece set |
22011-GW0-000 |
from US $7.99 |
||
|
8
|
8
28223-GAH-720 Spg,kick driven g |
28223-GAH-720 |
from US $4.22 |
||
|
9
|
9
28230-GAH-720 Gear comp.,kick d |
28230-GAH-720 |
from US $18.77 |
||
| replacement | |||||
|
9
|
9
28230-GBL-870
Gear, starter idle
|
28230-GBL-870 |
— | ||
|
10
|
10
28250-GN2-601 Spindle comp,kick |
28250-GN2-601 |
from US $38.08 |
||
|
11
|
11
28253-GN2-601 Bush, kick spindle |
28253-GN2-601 |
from US $5.03 |
||
|
11
|
11
28253-GBL-003 Bush, kick spindle |
28253-GBL-003 |
from US $4.74 |
||
|
12
|
12
28281-GN2-602 Spring kick retur |
28281-GN2-602 |
from US $8.14 |
||
|
13
|
13
90005-GAH-600 Bolt-washer (4x10) |
90005-GAH-600 |
from US $2.29 |
||
|
14
|
14
90412-329-000 Washer, thrust, 10mm |
90412-329-000 |
from US $0.37 |
||
| replacement | |||||
|
14
|
14
90412-KZL-840 WASHER, THRUST (10MM) |
90412-KZL-840 |
from US $0.70 |
||
|
15
|
15
90426-KBN-900 Washer (12mm) |
90426-KBN-900 |
from US $2.66 |
||
|
16
|
16
90451-GN2-600 Washer,kick spind |
90451-GN2-600 |
from US $2.84 |
||
| replacement | |||||
|
16
|
16
90451-GBL-870 Washer (14mm) |
90451-GBL-870 |
from US $2.44 |
||
|
17
|
17
94001-122-000-S NutHEX., 12MM |
94001-122-000-S |
from US $0.59 |
||
|
18
|
18
9451114000 Circlip, external, 14mm |
9451114000 |
from US $0.44 |
||
