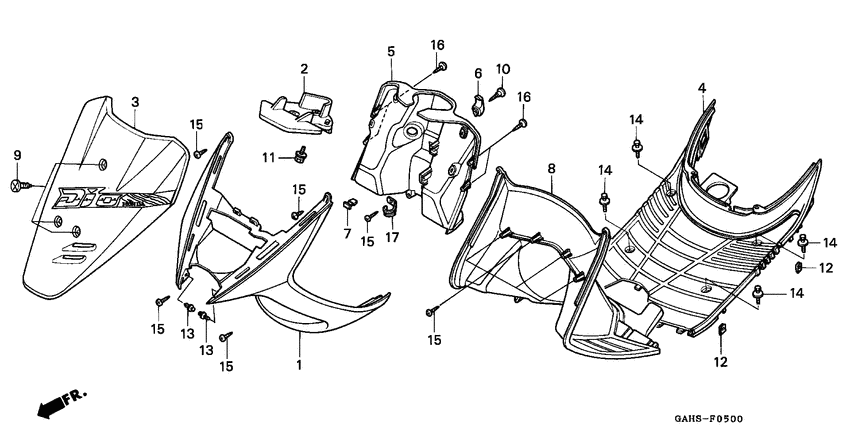

Front fender/step floor Diagram Honda SK50
- Year
- 1993
- Model code
- SK50MP
- Sales region
- Spain
- Frame
- VTMAF27900E000002 - VTMAF27900E006201
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61100-GAH-000ZP
Fender,fr.*nh158*
|
61100-GAH-000ZP |
— | ||
|
2
|
2
61110-GW0-730 Fender,fr.inner |
61110-GW0-730 |
US $32.10 |
||
|
3
|
3
64300-GAH-600ZD Cover set front n |
64300-GAH-600ZD |
US $85.32 |
||
|
3
|
3
64300-GAH-600ZE Cover set front p |
64300-GAH-600ZE |
US $89.85 |
||
|
3
|
3
64300-GAH-600ZF
Cover set front nh19
|
64300-GAH-600ZF |
— | ||
|
4
|
4
64310-GAH-000ZQ Floor,step*nh154* |
64310-GAH-000ZQ |
US $56.88 |
||
|
5
|
5
81131-GAH-000ZQ
Cover,fr.i*nh154*
|
81131-GAH-000ZQ |
— | ||
|
6
|
6
81132-GAH-000ZV
Hook,lugga*nh154*
|
81132-GAH-000ZV |
— | ||
|
7
|
7
81133-GAH-000 Stopper,luggage |
81133-GAH-000 |
US $1.48 |
||
|
8
|
8
81141-GAH-000ZQ
Cover,fr.i*nh154*
|
81141-GAH-000ZQ |
— | ||
|
9
|
9
90110-GAH-000 Screw (6x14) |
90110-GAH-000 |
from US $1.55 |
||
|
10
|
10
90164-MR4-900 Screw, special (6mm) |
90164-MR4-900 |
from US $2.74 |
||
|
11
|
11
90302-GR2-000 Bolt-washer,5x16 |
90302-GR2-000 |
from US $2.15 |
||
|
12
|
12
90677-GR1-003 Nut, clip (5mm) |
90677-GR1-003 |
from US $3.18 |
||
|
13
|
13
90683-GR1-003 Clip, body cover |
90683-GR1-003 |
from US $2.29 |
||
|
14
|
14
93404-060-450-7 Bolt-washer6X45 |
93404-060-450-7 |
US $0.74 |
||
|
15
|
15
93903-34310 ScrewTAPPING, 4X12 |
93903-34310 |
from US $0.38 |
||
|
16
|
16
93903-34380 ScrewTAPPING, 4X12 |
93903-34380 |
from US $0.41 |
||
|
17
|
17
94591-47000 Clip4X70 |
94591-47000 |
from US $1.33 |
