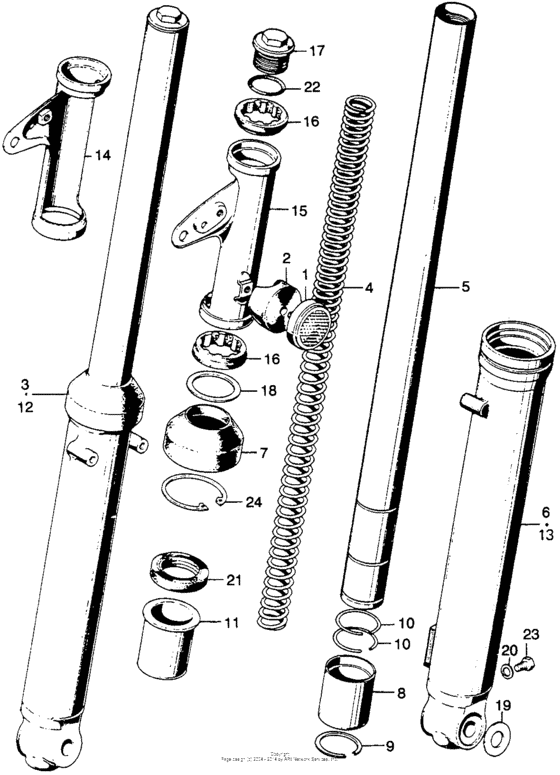

Front fork Diagram Honda SL125
- Model code
- SL125 A
- Sales region
- USA
- Frame
- SL125S1000001 - SL125S1038068
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33741-315-000 Reflexreflector |
33741-315-000 |
from US $27.06 |
||
|
2
|
2
33744-045-670 Base,refrector |
33744-045-670 |
US $7.40 |
||
|
3
|
3
51400-331-670
Fork assy,r front
|
51400-331-670 |
— | ||
|
4
|
4
51401-074-000
Spring fr cushion
|
51401-074-000 |
— | ||
| replacement | |||||
|
4
|
4
51401-074-010
Spring fr cushion
|
51401-074-010 |
— | ||
|
4
|
4
51401-074-010
Spring fr cushion
|
51401-074-010 |
— | ||
|
5
|
5
51410-074-000
Pipe front fork
|
51410-074-000 |
— | ||
|
6
|
6
51420-331-670
Case,r fork bot
|
51420-331-670 |
— | ||
|
7
|
7
91254-436-003 Dust seal,fr,fork |
91254-436-003 |
from US $16.86 |
||
|
8
|
8
51442-110-000
Piston, fr. fork
|
51442-110-000 |
— | ||
|
9
|
9
51445-216-000
Ring, fr.
|
51445-216-000 |
— | ||
|
10
|
10
51447-216-000
Ring, fr.
|
51447-216-000 |
— | ||
|
11
|
11
51451-110-000
Guide,f.fork pipe
|
51451-110-000 |
— | ||
|
12
|
12
51500-331-670
Fork assy,l front
|
51500-331-670 |
— | ||
|
13
|
13
51520-331-670
Case,l fork bot
|
51520-331-670 |
— | ||
|
14
|
14
61311-331-670XW
Stay, r. *mrcr2*
|
61311-331-670XW |
— | ||
|
15
|
15
61312-331-670XW
Stay, l. *mrcr2*
|
61312-331-670XW |
— | ||
|
16
|
16
61315-110-000
Cushion,light
|
61315-110-000 |
— | ||
|
17
|
17
9460527101 Bolt d1, fork |
9460527101 |
from US $5.18 |
||
|
18
|
18
90502-110-000
Washer,32mm
|
90502-110-000 |
— | ||
|
19
|
19
90528-110-000
Washer,12mm
|
90528-110-000 |
— | ||
|
20
|
20
51495-331-405 Oil seal set |
51495-331-405 |
from US $17 |
||
|
20
|
20
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.37 |
||
|
20
|
20
91255-331-671
Oil seal,31x43x12
|
91255-331-671 |
— | ||
| replacement | |||||
|
20
|
20
51495-331-405 Oil seal set |
51495-331-405 |
from US $17 |
||
|
21
|
21
9460830000 O-ring (23x2.4) |
9460830000 |
from US $0.89 |
||
|
22
|
22
9460830000 O-ring (23x2.4) |
9460830000 |
from US $0.89 |
||
|
23
|
23
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
24
|
24
94521-45000
Cir,clip,in.45mm
|
94521-45000 |
— | ||
