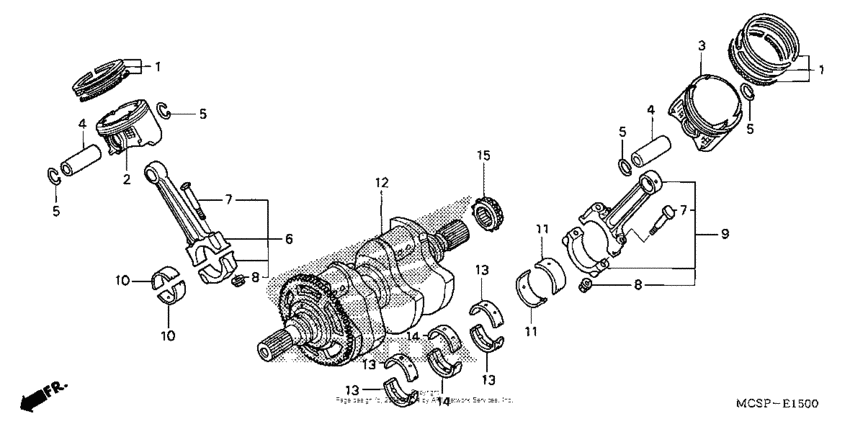

Crankshaft + piston Diagram Honda ST1300 Pan-European Police
- Year
- 2011
- Model code
- ST1300PA A
- Sales region
- USA
- Frame
- JH2SC517*BK700001 - JH2SC517*BK799999
- Engine Capacity
- 1300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13011-MCS-305 Ring set (std) |
13011-MCS-305 |
from US $52.09 |
||
|
1
|
1
13021-MCS-305 Ring set (os 0.25)(Optional). |
13021-MCS-305 |
US $59.11 |
||
|
1
|
1
13031-MCS-305 Ring set (os 0.50)(Optional). |
13031-MCS-305 |
US $59.11 |
||
|
2
|
2
13101-MCS-000 Piston, r |
13101-MCS-000 |
from US $83.79 |
||
|
2
|
2
13103-MCS-305 Piston, r. (os 0.25)(Optional). |
13103-MCS-305 |
US $103.48 |
||
|
2
|
2
13104-MCS-305 Piston, r. (os 0.50)(Optional). |
13104-MCS-305 |
US $103.48 |
||
|
3
|
3
13102-MCS-000 Piston, l. |
13102-MCS-000 |
from US $73.23 |
||
|
3
|
3
13105-MCS-305 Piston, l. (os 0.25)(Optional). |
13105-MCS-305 |
US $103.48 |
||
|
3
|
3
13106-MCS-305 Piston, l. (os 0.50)(Optional). |
13106-MCS-305 |
US $103.48 |
||
|
4
|
4
13111-MCS-000 Pin, piston |
13111-MCS-000 |
from US $13.29 |
||
|
5
|
5
13112-MAT-000 Clip (19mm) |
13112-MAT-000 |
from US $1.85 |
||
|
6
|
6
13210-MCS-000 Rod, r. connecting |
13210-MCS-000 |
from US $180.24 |
||
|
7
|
7
13213-MCS-003 Bolt, connecting rod |
13213-MCS-003 |
from US $5.56 |
||
|
8
|
8
13215-ML7-000 Nut, connecting rod |
13215-ML7-000 |
from US $4.44 |
||
|
9
|
9
13220-MCS-000 Rod, l. connecting |
13220-MCS-000 |
from US $180.24 |
||
|
10
|
10
13224-MCS-003 Bearing a, r. |
13224-MCS-003 |
from US $11.25 |
||
|
10
|
10
13225-MCS-003 Brg b, r. conn rod |
13225-MCS-003 |
from US $12.28 |
||
|
10
|
10
13226-MCS-003 Brg c, r. conn rod |
13226-MCS-003 |
from US $10.64 |
||
|
10
|
10
13227-MCS-003 Brg d, r. conn rod |
13227-MCS-003 |
from US $10.64 |
||
|
10
|
10
13228-MCS-003 Brg e, r. conn rod |
13228-MCS-003 |
from US $12.28 |
||
|
11
|
11
13234-MCS-003 Bearing a, l. |
13234-MCS-003 |
from US $12.28 |
||
|
11
|
11
13235-MCS-003 Brg b, l. conn rod |
13235-MCS-003 |
from US $10.64 |
||
|
11
|
11
13236-MCS-003 Brg c, l. conn rod |
13236-MCS-003 |
from US $10.64 |
||
|
11
|
11
13237-MCS-003 Brg d, l. conn rod |
13237-MCS-003 |
from US $10.64 |
||
|
11
|
11
13238-MCS-003 Brg e, l. conn rod |
13238-MCS-003 |
from US $10.64 |
||
|
12
|
12
13300-MCS-000 Crankshaft |
13300-MCS-000 |
from US $1,188.13 |
||
|
13
|
13
13313-MCS-003 BEARING A |
13313-MCS-003 |
from US $11.25 |
||
|
13
|
13
13314-MCS-003 BEARING B, CRANKSHAFT |
13314-MCS-003 |
from US $10.64 |
||
|
13
|
13
13315-MCS-003 BEARING C, CRANKSHAFT |
13315-MCS-003 |
from US $10.64 |
||
|
13
|
13
13316-MCS-003 BEARING D, CRANKSHAFT |
13316-MCS-003 |
from US $10.64 |
||
|
13
|
13
13317-MCS-003 BEARING E, CRANKSHAFT |
13317-MCS-003 |
from US $10.64 |
||
|
14
|
14
13363-MCS-003 BEARING A |
13363-MCS-003 |
from US $12.28 |
||
|
14
|
14
13364-MCS-003 Bearing b |
13364-MCS-003 |
from US $10.64 |
||
|
14
|
14
13365-MCS-003 Bearing c |
13365-MCS-003 |
from US $10.64 |
||
|
14
|
14
13366-MCS-003 Bearing d |
13366-MCS-003 |
from US $10.64 |
||
|
14
|
14
13367-MCS-003 Bearing e |
13367-MCS-003 |
from US $10.64 |
||
|
15
|
15
13371-MCS-000 Sprocket (22t) |
13371-MCS-000 |
US $50.46 |
