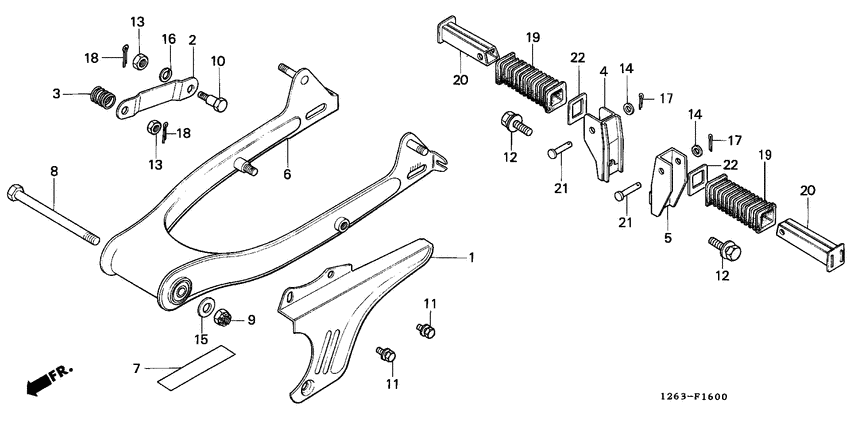

Rear fork/chain case (ST50C) Diagram Honda ST50 DAX
- Year
- 1982
- Model code
- ST50C
- Sales region
- Total (km / h)
- Frame
- ST506400001 - ST506400720
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
40510-098-000ZA
Case,chain*yr-26*
|
40510-098-000ZA |
— | ||
| replacement | |||||
|
1
|
1
40510-098-000ZC Case,chain*nh-1* |
40510-098-000ZC |
US $47.06 |
||
|
1
|
1
40510-098-000ZE Case,chain*r-4c* |
40510-098-000ZE |
US $28.86 |
||
|
2
|
2
43431-124-740 Link,rear brake |
43431-124-740 |
US $7.25 |
||
|
3
|
3
43434-250-000 Spring |
43434-250-000 |
from US $2.59 |
||
|
4
|
4
50701-098-010-B Bracket,r step |
50701-098-010-B |
US $11.41 |
||
|
5
|
5
50711-098-000-B
Bracket,l,step
|
50711-098-000-B |
— | ||
|
6
|
6
52100-098-020ZA
Fork,rr. *yr-26*
|
52100-098-020ZA |
— | ||
|
6
|
6
52100-098-020ZG
Fork comp*nh-26m*
|
52100-098-020ZG |
— | ||
|
7
|
7
87505-126-790 Mark,tire caution |
87505-126-790 |
US $5.10 |
||
|
8
|
8
90121-098-970 Bolt,rr.forkpivot |
90121-098-970 |
US $7.70 |
||
|
9
|
9
90351-268-000 Nut (10mm) |
90351-268-000 |
from US $4.11 |
||
|
10
|
10
9281110000 Bolt a |
9281110000 |
from US $1.85 |
||
|
11
|
11
93481-06012 Bolt-washer, 6x12 |
93481-06012 |
US $0.52 |
||
| replacement | |||||
|
11
|
11
93401-0601200 Bolt-washer (6x12) |
93401-0601200 |
from US $0.52 |
||
|
12
|
12
93481-10020 Bolt-washer,10x20 |
93481-10020 |
US $0.74 |
||
|
13
|
13
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.44 |
||
|
14
|
14
94101-06000 WasherPLAIN, 6MM |
94101-06000 |
from US $0.25 |
||
| replacement | |||||
|
14
|
14
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
15
|
15
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
16
|
16
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
17
|
17
94201-16150 PinSPLIT, 1.6X15 |
94201-16150 |
from US $0.37 |
||
| replacement | |||||
|
17
|
17
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
18
|
18
94201-20150 Pin |
94201-20150 |
from US $0.37 |
||
|
19
|
19
95011-31000 Rubber,pillon |
95011-31000 |
from US $1.85 |
||
|
20
|
20
95015-61000 Step,pillion |
95015-61000 |
from US $7.70 |
||
|
21
|
21
9501581000 Pin a, pillion step |
9501581000 |
from US $1.48 |
||
|
22
|
22
95015-91000 Washer,pillion |
95015-91000 |
from US $0.89 |
||
