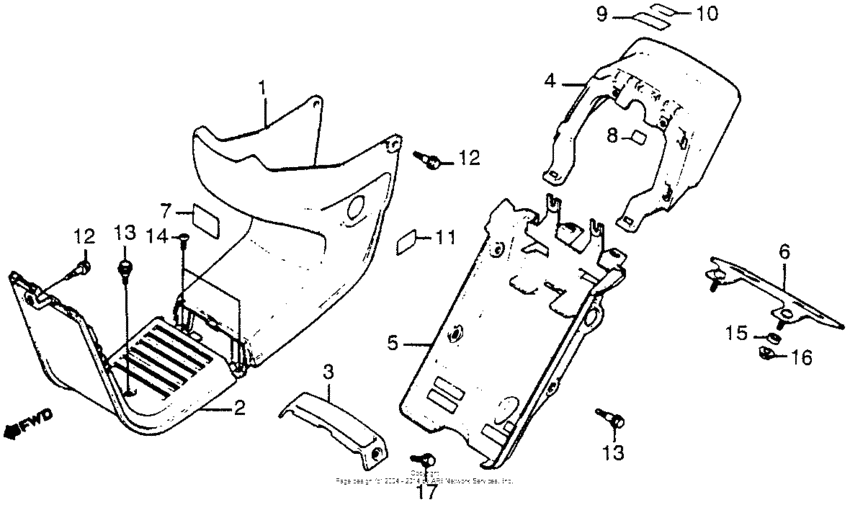

Center cover + rear cover Diagram Honda TG50
- Year
- 1986
- Model code
- TG50M A
- Sales region
- USA
- Frame
- JH2TB100*GS000009 -
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64308-GM8-000ZA
Cover a *nh105*
|
64308-GM8-000ZA |
— | ||
|
2
|
2
64309-GM8-000ZA
Cover b *nh105*
|
64309-GM8-000ZA |
— | ||
|
3
|
3
64315-GM8-670ZB
Cover c *nh105*
|
64315-GM8-670ZB |
— | ||
|
4
|
4
77221-GM8-670ZB
Cowl, rr. *r110*
|
77221-GM8-670ZB |
— | ||
|
5
|
5
81211-GM8-670ZA
Cover, rr. *nh105*
|
81211-GM8-670ZA |
— | ||
|
6
|
6
84701-GM8-670
Brkt, number plate
|
84701-GM8-670 |
— | ||
|
7
|
7
87505-GM8-670
Label, caution
|
87505-GM8-670 |
— | ||
|
8
|
8
87506-GM8-670
Label
|
87506-GM8-670 |
— | ||
|
9
|
9
87508-GK0-670
Label, rack weight
|
87508-GK0-670 |
— | ||
|
10
|
10
87510-147-670ZB
Label *nh0*
|
87510-147-670ZB |
— | ||
|
11
|
11
87511-323-670 Label, helmet holder |
87511-323-670 |
from US $2.96 |
||
|
12
|
12
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.18 |
||
|
13
|
13
90111-187-000 BoltFLANGE, 6MM |
90111-187-000 |
from US $2.56 |
||
|
14
|
14
90142-GC8-000 Bolt, cover setting |
90142-GC8-000 |
from US $3.40 |
||
|
15
|
15
90522-028-000 Washer, chain case setting |
90522-028-000 |
from US $1.92 |
||
|
16
|
16
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.50 |
||
|
17
|
17
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.58 |
