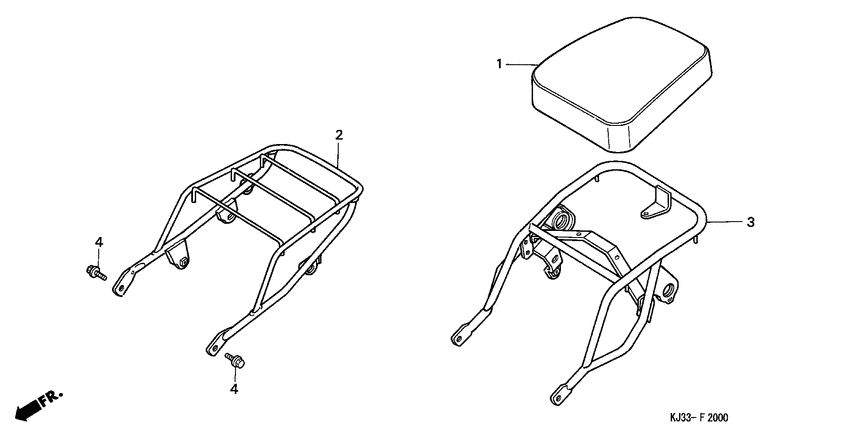

Carrier (TL125J) Diagram Honda TL125
- Year
- 1988
- Model code
- TL125J
- Sales region
- France
- Frame
- JD065100002 - JD065100481
- Engine Capacity
- 125
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77300-KJ3-810
Seat assy.
|
77300-KJ3-810 |
— | ||
|
2
|
2
81200-KJ3-000
Carrier comp.,rr.
|
81200-KJ3-000 |
— | ||
|
3
|
3
81200-KJ3-632ZA
Pipe,tail *pb109*
|
81200-KJ3-632ZA |
— | ||
|
4
|
4
96500-080-160-0 Bolt,flg dr 8x16 |
96500-080-160-0 |
from US $0.74 |
||
| replacement | |||||
|
4
|
4
96300-0801600 Bolt, flange (8x16) |
96300-0801600 |
from US $0.74 |
||
