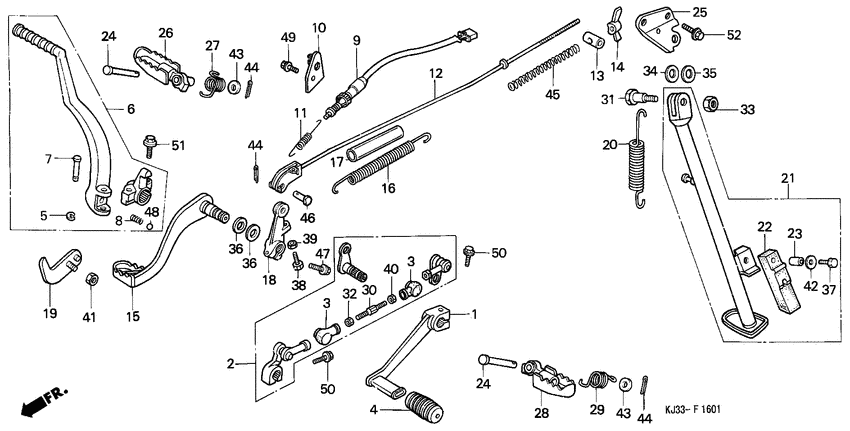

Pedal/kick starter arm (TL125J) Diagram Honda TL125
- Year
- 1988
- Model code
- TL125J
- Sales region
- France
- Frame
- JD065100002 - JD065100481
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-KJ3-000
Pedal, gearshift
|
24700-KJ3-000 |
— | ||
|
2
|
2
24720-KJ2-010
Link, gear chang
|
24720-KJ2-010 |
— | ||
|
3
|
3
24724-422-000 Cover, dust |
24724-422-000 |
from US $6.51 |
||
|
4
|
4
24781-449-000 Rubber, gearshift |
24781-449-000 |
from US $2.96 |
||
|
5
|
5
28293-124-000 Clip, kick starter arm |
28293-124-000 |
from US $2.44 |
||
|
6
|
6
28300-KJ2-670
Arm assy.,kick st
|
28300-KJ2-670 |
— | ||
| replacement | |||||
|
6
|
6
28300-KJ2-000 Arm, kick starter |
28300-KJ2-000 |
US $112.64 |
||
|
7
|
7
28321-427-770 Pin, kick starter |
28321-427-770 |
from US $4.51 |
||
|
8
|
8
28333-124-000 Spring |
28333-124-000 |
from US $2.44 |
||
|
9
|
9
35350-KJ2-671 Switch, rr. stop |
35350-KJ2-671 |
US $16.52 |
||
|
10
|
10
35351-KJ2-670ZB
Stay,stop *pb109*
|
35351-KJ2-670ZB |
— | ||
|
11
|
11
35357-KR3-670 Spring, stop switch |
35357-KR3-670 |
from US $4 |
||
|
12
|
12
43451-KJ2-000
Rod, rr. brake
|
43451-KJ2-000 |
— | ||
|
13
|
13
43454-KA4-700 Joint, brake arm |
43454-KA4-700 |
US $5.33 |
||
|
14
|
14
43459-434-000 Nut, brake adjust |
43459-434-000 |
from US $7.55 |
||
|
15
|
15
46500-KJ2-670ZA
Pedal, rr. *nh1*
|
46500-KJ2-670ZA |
— | ||
|
16
|
16
46514-KJ2-000
Spring, brake pedal
|
46514-KJ2-000 |
— | ||
|
17
|
17
46515-KB9-000 Tube.brk.pedal |
46515-KB9-000 |
US $4 |
||
| replacement | |||||
|
17
|
17
95005-1206030 *95005-12001-30m |
95005-1206030 |
US $4 |
||
|
18
|
18
46516-KJ2-000
Arm,rr.brk.middle
|
46516-KJ2-000 |
— | ||
| replacement | |||||
|
18
|
18
46516-KJ2-010
Arm, rr.
|
46516-KJ2-010 |
— | ||
|
19
|
19
50131-KJ2-010
Stopper, kick arm
|
50131-KJ2-010 |
— | ||
|
20
|
20
50535-429-000 Spring, side stand |
50535-429-000 |
from US $3.77 |
||
|
21
|
21
50540-KJ3-700ZA
Bar assy.,*pb109*
|
50540-KJ3-700ZA |
— | ||
|
22
|
22
50548-324-760 Rubber, stand |
50548-324-760 |
from US $7.40 |
||
|
23
|
23
50549-356-700 Collar |
50549-356-700 |
from US $2.96 |
||
|
24
|
24
50603-033-000 Pin, step bar joint |
50603-033-000 |
US $4.73 |
||
| replacement | |||||
|
24
|
24
50603-033-010 Pin, step bar joint |
50603-033-010 |
from US $3.70 |
||
|
25
|
25
50611-KJ2-670ZB
Braket,sid*pb109*
|
50611-KJ2-670ZB |
— | ||
|
26
|
26
50616-KJ2-000
Step.comp r
|
50616-KJ2-000 |
— | ||
| replacement | |||||
|
26
|
26
50616-428-000 Step comp.,R. |
50616-428-000 |
from US $30.33 |
||
|
27
|
27
50617-329-000 Spring,r step rtn |
50617-329-000 |
US $3.89 |
||
| replacement | |||||
|
27
|
27
50617-MM9-000 Spring, r |
50617-MM9-000 |
from US $3.77 |
||
|
28
|
28
50642-KJ2-000
Step, l.
|
50642-KJ2-000 |
— | ||
|
29
|
29
50644-329-000 Spring,l.step rtn |
50644-329-000 |
US $3.89 |
||
| replacement | |||||
|
29
|
29
50644-MM9-000 Spring, l |
50644-MM9-000 |
from US $3.77 |
||
|
30
|
30
90065-KC1-000 Bolt, tie rod |
90065-KC1-000 |
from US $6.66 |
||
|
31
|
31
90108-KV6-000 Screw |
90108-KV6-000 |
from US $5.62 |
||
|
32
|
32
90201-KC1-000 Nut, tie rod |
90201-KC1-000 |
from US $2.01 |
||
|
33
|
33
90203-MF9-710 Nut, side stand |
90203-MF9-710 |
from US $3.18 |
||
|
34
|
34
90501-MF9-710 Washer (24x13) |
90501-MF9-710 |
US $1.92 |
||
|
35
|
35
90502-MF9-710 Washer (24x10) |
90502-MF9-710 |
US $1.92 |
||
|
36
|
36
91251-444-000 Dust seal |
91251-444-000 |
from US $3.70 |
||
|
37
|
37
92000-06028-0A New Genuine Part- 5100451 |
92000-06028-0A |
from US $0.52 |
||
| replacement | |||||
|
37
|
37
92101-06028-0A Bolt, hex. (6x28)- 5100451 |
92101-06028-0A |
from US $0.51 |
||
|
38
|
38
92020-06020-0A Bolt, hex. (6x20) |
92020-06020-0A |
from US $0.44 |
||
| replacement | |||||
|
38
|
38
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
39
|
39
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
40
|
40
94002-060-700-S NutHEX., 6MM |
94002-060-700-S |
from US $0.44 |
||
|
41
|
41
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
42
|
42
94101-06000 WasherPLAIN, 6MM - 5100451 |
94101-06000 |
from US $0.37 |
||
| replacement | |||||
|
42
|
42
94101-06800 WasherPLAIN, 6MM - 5100451 |
94101-06800 |
from US $0.37 |
||
|
43
|
43
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
44
|
44
94201-16150 PinSPLIT, 1.6X15 |
94201-16150 |
from US $0.37 |
||
| replacement | |||||
|
44
|
44
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
45
|
45
9501473100 Spring a, brake rod |
9501473100 |
from US $0.74 |
||
|
46
|
46
9501552000 Pin b, brake rod joint |
9501552000 |
from US $1.48 |
||
|
47
|
47
95700-0602200 Bolt, flange, 6x22 |
95700-0602200 |
from US $0.59 |
||
| replacement | |||||
|
47
|
47
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
|
48
|
48
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
|
49
|
49
96500-0601000 Bolt, flange (6x10) |
96500-0601000 |
from US $0.59 |
||
| replacement | |||||
|
49
|
49
96300-0601000 Bolt, flange (6x10) |
96300-0601000 |
from US $0.59 |
||
|
50
|
50
96500-0602007 Bolt, flange (6x20) |
96500-0602007 |
US $0.59 |
||
| replacement | |||||
|
50
|
50
96300-0602007 Bolt, flange (6x20) |
96300-0602007 |
US $0.59 |
||
|
51
|
51
96500-080-250-0 Bolt,flange,8x25 |
96500-080-250-0 |
from US $0.81 |
||
| replacement | |||||
|
51
|
51
96300-0802500 Bolt, flange (8x25) |
96300-0802500 |
from US $0.81 |
||
|
52
|
52
96500-080-320-0 Bolt,flg,dr,8x32 |
96500-080-320-0 |
from US $0.81 |
||
| replacement | |||||
|
52
|
52
96300-0803200 Bolt, flange (8x32) |
96300-0803200 |
from US $0.81 |
||
