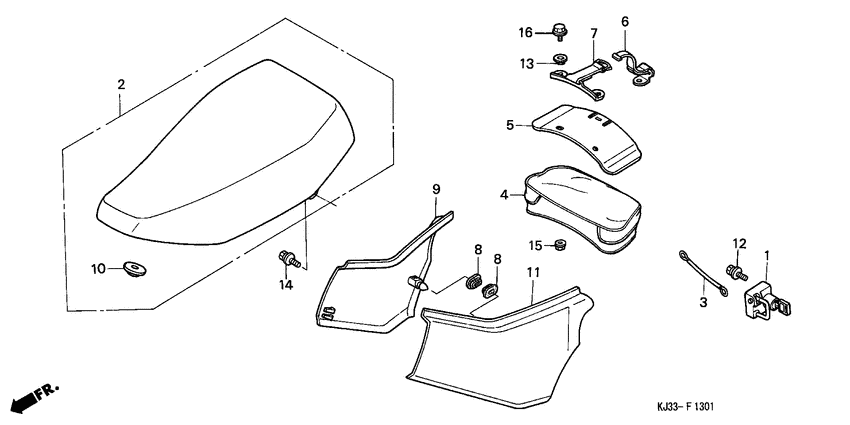

Seat/side cover (TL125J) Diagram Honda TL125
- Year
- 1988
- Model code
- TL125J
- Sales region
- France
- Frame
- JD065100002 - JD065100481
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50710-MG2-003
Holder assy., helmet
|
50710-MG2-003 |
— | ||
|
2
|
2
77100-KJ3-630ZA
Seat comp.*pb29l*
|
77100-KJ3-630ZA |
— | ||
|
3
|
3
77236-KV6-000 Cable, tail bag lock |
77236-KV6-000 |
from US $7.25 |
||
|
4
|
4
83501-KJ3-700ZA
Bag comp.,*pb29l*
|
83501-KJ3-700ZA |
— | ||
|
5
|
5
83502-KK0-000
Plate, tail bag
|
83502-KK0-000 |
— | ||
|
6
|
6
83506-KF0-000
Band b, carrier
|
83506-KF0-000 |
— | ||
|
7
|
7
83507-KK0-000
Band a, carrier
|
83507-KK0-000 |
— | ||
|
8
|
8
83551-376-000 Grommet, side cover |
83551-376-000 |
from US $4.52 |
||
|
9
|
9
83610-KJ2-000ZA
Cover,r.si*nh196*
|
83610-KJ2-000ZA |
— | ||
|
10
|
10
83618-323-000 Rubber, battery box |
83618-323-000 |
from US $1.40 |
||
|
11
|
11
83710-KJ2-000ZA
Cover,l.si*nh196*
|
83710-KJ2-000ZA |
— | ||
|
12
|
12
90106-428-000 Bolt b,special |
90106-428-000 |
US $5.18 |
||
| replacement | |||||
|
12
|
12
90107-195-860
Bolt b (6mm)
|
90107-195-860 |
— | ||
|
13
|
13
90563-045-000 Washer, number bracket mounting |
90563-045-000 |
from US $4.59 |
||
|
14
|
14
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
15
|
15
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
16
|
16
95700-0601600 Bolt, flange, 6x16 |
95700-0601600 |
from US $0.52 |
||
| replacement | |||||
|
16
|
16
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
