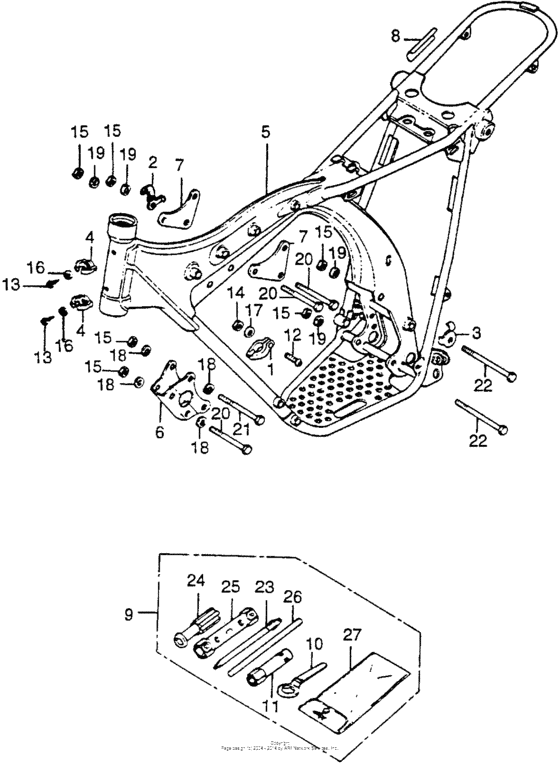

Frame + tool Diagram Honda TL125
- Year
- 1976
- Model code
- TL125S A
- Sales region
- USA
- Frame
- TL125S1000417 -
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22878-355-000
Clamper,clutch
|
22878-355-000 |
— | ||
|
2
|
2
32906-355-000
Clip, high tension cord
|
32906-355-000 |
— | ||
|
3
|
3
32907-331-000 Clip,a c gen cord |
32907-331-000 |
US $2.66 |
||
|
4
|
4
32985-355-000
Grommet,wire cord
|
32985-355-000 |
— | ||
|
5
|
5
50100-355-710-B
Frame *nh1*
|
50100-355-710-B |
— | ||
|
6
|
6
50351-355-000-B
Plate,fr.hunger
|
50351-355-000-B |
— | ||
|
7
|
7
50353-107-000
Plete.r.up.hanger
|
50353-107-000 |
— | ||
|
8
|
8
87504-028-670 Mark, caution |
87504-028-670 |
from US $4.57 |
||
|
9
|
9
89010-355-710
Tool set
|
89010-355-710 |
— | ||
|
10
|
10
89214-355-710
Wrench, eye (24mm)
|
89214-355-710 |
— | ||
|
11
|
11
89217-355-000 WrenchBOX (10MM) |
89217-355-000 |
from US $4.29 |
||
|
12
|
12
93500-050-200-A ScrewPAN, 5X20 |
93500-050-200-A |
from US $0.37 |
||
|
13
|
13
93901-14010 ScrewTAPPING, 4X6 |
93901-14010 |
US $0.37 |
||
|
14
|
14
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
15
|
15
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
16
|
16
94101-04000 WasherPLAIN, 4MM |
94101-04000 |
from US $0.37 |
||
|
17
|
17
94101-05000 WasherPLAIN, 5MM |
94101-05000 |
from US $0.37 |
||
|
18
|
18
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
19
|
19
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
20
|
20
95301-080-700-0 Bolt, hex. (8x70) |
95301-080-700-0 |
from US $0.81 |
||
|
21
|
21
95300-080-900-0 Bolt,hex.,8x90 |
95300-080-900-0 |
US $1.04 |
||
|
22
|
22
95300-0811100 Bolt, hex. (8x111) |
95300-0811100 |
from US $1.33 |
||
|
23
|
23
9900320000 Driver 2, plus screw (no.3) |
9900320000 |
from US $1.55 |
||
|
24
|
24
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
|
25
|
25
99004-18190 Wrench, box (p18x19) |
99004-18190 |
from US $4.29 |
||
|
26
|
26
9900501000 Bar a, handle |
9900501000 |
from US $1.48 |
||
|
27
|
27
99008-01600 BagTOOL, 160MM |
99008-01600 |
from US $2.29 |
