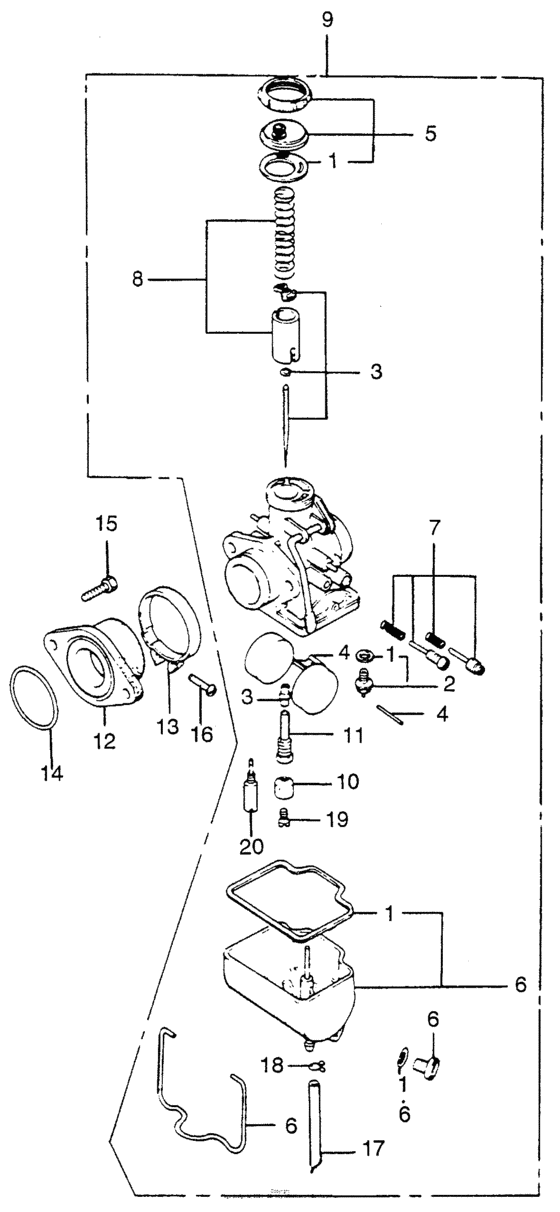

Carburetor Diagram Honda TL250
- Model code
- TL250 A
- Sales region
- USA
- Frame
- TL2501000001 - TL2501005276
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-107-305 Gasket set |
16010-107-305 |
from US $10.64 |
||
|
2
|
2
16011-375-004 Valve set, float |
16011-375-004 |
from US $22.40 |
||
|
3
|
3
16012-376-004
Needle set, jet
|
16012-376-004 |
— | ||
|
4
|
4
16013-312-004
Float set
|
16013-312-004 |
— | ||
|
5
|
5
16014-312-004
Top set
|
16014-312-004 |
— | ||
|
6
|
6
16015-376-004
Chamber set, float
|
16015-376-004 |
— | ||
|
7
|
7
16016-376-004
Screw set
|
16016-376-004 |
— | ||
|
8
|
8
16022-376-004
Valve set, throttle
|
16022-376-004 |
— | ||
|
9
|
9
16100-376-004
Carburetor assy.
|
16100-376-004 |
— | ||
|
10
|
10
16168-382-004
Holder,jet
|
16168-382-004 |
— | ||
|
11
|
11
16176-312-004
Holder, needle jet
|
16176-312-004 |
— | ||
|
12
|
12
16211-376-000
Insulator,carb.
|
16211-376-000 |
— | ||
|
13
|
13
16223-317-000
Band, insulator
|
16223-317-000 |
— | ||
|
14
|
14
91311-329-000
O-ring,38x2.4
|
91311-329-000 |
— | ||
|
15
|
15
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.47 |
||
|
16
|
16
93500-040200A Screw, pan, 4x20 |
93500-040200A |
from US $0.32 |
||
|
17
|
17
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
18
|
18
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
19
|
19
99114-246-1150 Jet,main #115 |
99114-246-1150 |
US $2.96 |
||
|
20
|
20
99124-300-0380
Jet,slow #38
|
99124-300-0380 |
— |
