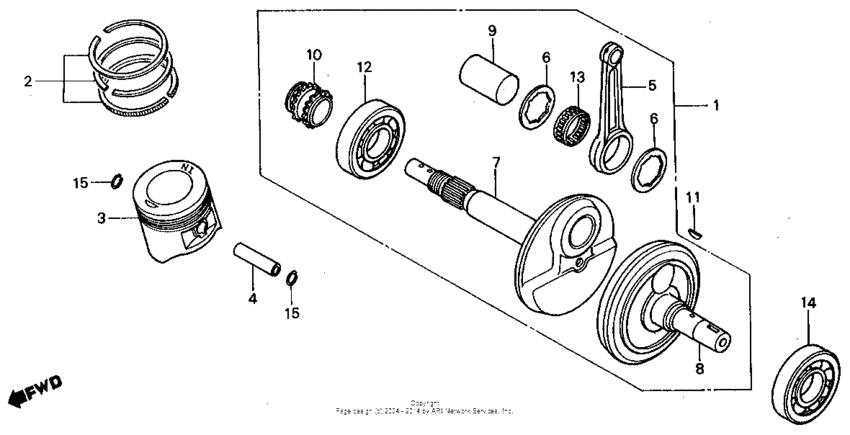

Crankshaft Diagram Honda TR200 Fat Cat
- Year
- 1987
- Model code
- TR200 A
- Sales region
- USA
- Frame
- JH2TE110*HK600001 - JH2TE110*HK608042
- Engine Capacity
- 200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-HB3-840
Crankshaft
|
13000-HB3-840 |
— | ||
|
2
|
2
13011-HB3-305
Ring set (std)
|
13011-HB3-305 |
— | ||
|
2
|
2
13021-HB3-305
Ring set (os) (0.25)
(Optional). |
13021-HB3-305 |
— | ||
|
2
|
2
13031-HB3-305 Ring set (os) (0.50)(Optional). |
13031-HB3-305 |
US $50.27 |
||
|
2
|
2
13041-HB3-305
Ring set (os) (0.75)
(Optional). |
13041-HB3-305 |
— | ||
|
2
|
2
13051-HB3-305
Ring set (1.00)
(Optional). |
13051-HB3-305 |
— | ||
|
3
|
3
13101-HB3-003
Superceded
|
13101-HB3-003 |
— | ||
| replacement | |||||
|
3
|
3
13101-HF1-670
Piston (std)
|
13101-HF1-670 |
— | ||
|
3
|
3
13101-HF1-670
Piston (std)
|
13101-HF1-670 |
— | ||
|
3
|
3
13102-HF1-670 Piston (os 0.25)(Optional). |
13102-HF1-670 |
US $83.18 |
||
|
3
|
3
13103-HF1-670
Piston (os 0.50)
(Optional). |
13103-HF1-670 |
— | ||
|
3
|
3
13104-HF1-670
Piston (0.75)
(Optional). |
13104-HF1-670 |
— | ||
|
3
|
3
13105-HF1-670 Piston (1.00)(Optional). |
13105-HF1-670 |
US $83.18 |
||
|
4
|
4
13111-425-000 Pin, piston |
13111-425-000 |
from US $17 |
||
|
5
|
5
13201-HB3-300
Rod, connecting
|
13201-HB3-300 |
— | ||
|
6
|
6
13202-958-300 Plate |
13202-958-300 |
from US $8.42 |
||
|
7
|
7
13311-HB3-840
Crankshaft, r.
|
13311-HB3-840 |
— | ||
|
8
|
8
13321-HB3-300 Crankshaft, l |
13321-HB3-300 |
from US $212.61 |
||
|
9
|
9
13381-HF1-670 Pin, crank |
13381-HF1-670 |
from US $25.52 |
||
|
10
|
10
14312-HB3-300
Sprocket, timing
|
14312-HB3-300 |
— | ||
|
11
|
11
90701-HB6-010 Key (25x14x4) |
90701-HB6-010 |
from US $2.87 |
||
|
12
|
12
91009-HC0-003 Bearing (63/28) |
91009-HC0-003 |
from US $33.32 |
||
|
13
|
13
91002-437-004 Needle brg |
91002-437-004 |
from US $17.04 |
||
|
13
|
13
91002-440-003 Bearing a, conn rod |
91002-440-003 |
from US $16.46 |
||
|
13
|
13
91003-440-003 Bearing b, conn rod |
91003-440-003 |
US $17.04 |
||
|
13
|
13
91004-440-003 Bearing c, conn rod |
91004-440-003 |
US $15.91 |
||
|
14
|
14
91008-KAE-731 Bearing, radial ball |
91008-KAE-731 |
from US $17.24 |
||
|
15
|
15
94601-15000 Clip, piston pin, 15mm |
94601-15000 |
from US $0.44 |
||
