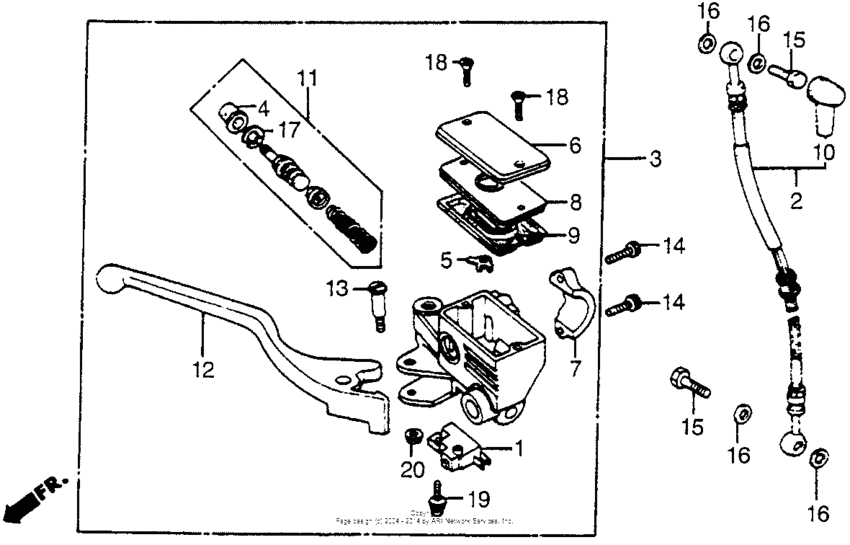

Front brake master cyl. Diagram Honda VF500 Magna V30
- Year
- 1984
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*EM000041 - JH2PC130*EM010105
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-MA5-671 Switch, fr. stop |
35340-MA5-671 |
from US $14.55 |
||
|
2
|
2
45126-MJ8-003
Hose,fr.brk.
|
45126-MJ8-003 |
— | ||
|
3
|
3
45510-MF5-405
Cylinder sub-assy.
|
45510-MF5-405 |
— | ||
|
4
|
4
45504-410-003 Boot |
45504-410-003 |
from US $4.90 |
||
|
5
|
5
45512-MA6-006 Protector |
45512-MA6-006 |
from US $3.11 |
||
|
6
|
6
45513-KE5-026 Cap, master cylinder |
45513-KE5-026 |
from US $18.50 |
||
|
7
|
7
45517-MB0-006 Holder |
45517-MB0-006 |
US $16.19 |
||
|
8
|
8
45518-MB4-671 Plate, diaphragm |
45518-MB4-671 |
from US $7.99 |
||
|
9
|
9
45520-MA5-672 Diaphragm |
45520-MA5-672 |
from US $12.88 |
||
|
10
|
10
45522-422-000 Boot |
45522-422-000 |
from US $9.77 |
||
|
11
|
11
45530-MA4-671 Master cylinder set |
45530-MA4-671 |
from US $36.58 |
||
|
12
|
12
53175-MK7-671 Lever, r. handle |
53175-MK7-671 |
from US $18.09 |
||
|
13
|
13
90114-MA5-671 Bolt, r |
90114-MA5-671 |
from US $4.07 |
||
|
14
|
14
90117-MB0-000
Bolt, socket (6x23)
|
90117-MB0-000 |
— | ||
|
15
|
15
90145-KM3-751 Bolt, oil (10x22) |
90145-KM3-751 |
from US $9.18 |
||
|
16
|
16
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
17
|
17
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
18
|
18
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
19
|
19
93893-040-120-8 Screw-washer4X12 |
93893-040-120-8 |
from US $0.58 |
||
|
20
|
20
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
