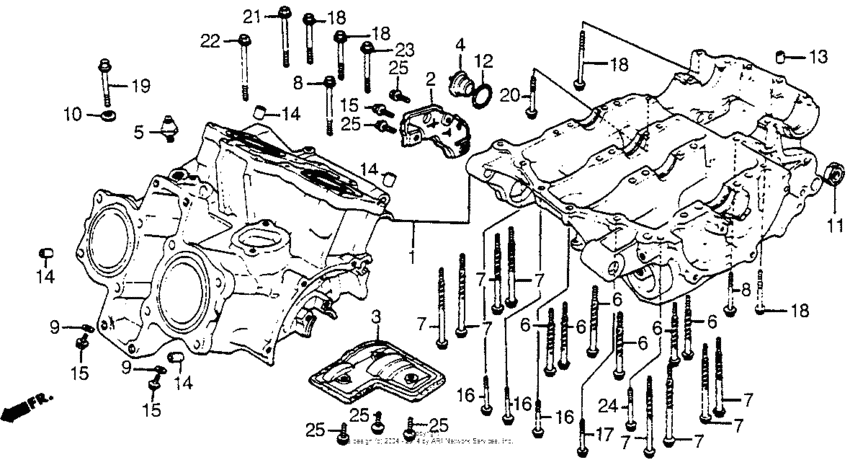

Cylinder block Diagram Honda VF500 Magna V30
- Year
- 1985
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*FM100001 - JH2PC130*FM107580
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-MJ8-040
Crankcase set
Use up to Engine SN 2101945 |
11000-MJ8-040 |
— | ||
|
2
|
2
11104-KE7-010
Plate, seal
|
11104-KE7-010 |
— | ||
|
3
|
3
11140-MF2-010
Plate, oil separate
Use up to Engine SN 2106251 |
11140-MF2-010 |
— | ||
|
4
|
4
11207-MB0-000 Cap, main gallery |
11207-MB0-000 |
US $10.46 |
||
|
5
|
5
35500-MJ4-024 Switch, oil pressureUse up to Engine SN 2106251 |
35500-MJ4-024 |
from US $35.50 |
||
|
6
|
6
90014-KE8-405
Bolt, ubs (8x74)
|
90014-KE8-405 |
— | ||
|
7
|
7
90016-KE7-003 Bolt,ubs.8x97 |
90016-KE7-003 |
US $6.21 |
||
|
8
|
8
90017-KE7-000
Bolt, flange (8x75)
|
90017-KE7-000 |
— | ||
|
9
|
9
90463-KRM-840 Washer (6.2mm)Use up to Engine SN 2108067 |
90463-KRM-840 |
from US $1.84 |
||
|
9
|
9
90463-ML7-000 Washer (6.5mm)Use from Engine SN 2108068 |
90463-ML7-000 |
from US $2.22 |
||
|
10
|
10
90525-001-000 WasherRR. BRAKE ARM |
90525-001-000 |
from US $1.78 |
||
|
11
|
11
91204-MB0-013 Oil seal (8x25x8) |
91204-MB0-013 |
from US $2.65 |
||
|
12
|
12
91314-MB0-003
O-ring,18x2.8
|
91314-MB0-003 |
— | ||
|
13
|
13
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
14
|
14
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
15
|
15
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
16
|
16
95701-0603207 Bolt, flange, 6x32 |
95701-0603207 |
from US $0.59 |
||
|
17
|
17
95701-060-400-7 BoltFLANGE, 6X40 |
95701-060-400-7 |
from US $0.59 |
||
|
18
|
18
95701-060-450-7 BoltFLANGE, 6X45 |
95701-060-450-7 |
from US $0.74 |
||
|
19
|
19
95701-0605007 Bolt, flange, 6x50 |
95701-0605007 |
from US $0.74 |
||
|
20
|
20
95701-060-550-0 BoltFLANGE, 6X55 |
95701-060-550-0 |
from US $0.74 |
||
|
21
|
21
95701-0606500 Bolt, flange, 6x65 |
95701-0606500 |
from US $0.81 |
||
|
22
|
22
95701-0608007 Bolt, flange (6x80) |
95701-0608007 |
from US $0.52 |
||
|
23
|
23
95701-0805007 Bolt, flange, 8x50Use up to Engine SN 2108739 |
95701-0805007 |
from US $0.86 |
||
|
23
|
23
95700-100-500-7 Bolt,flange 10x50Use from Engine SN 2108740 |
95700-100-500-7 |
US $0.89 |
||
|
24
|
24
95724-080-550-7 Bolt,flg.,8x55 |
95724-080-550-7 |
US $0.81 |
||
|
25
|
25
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
