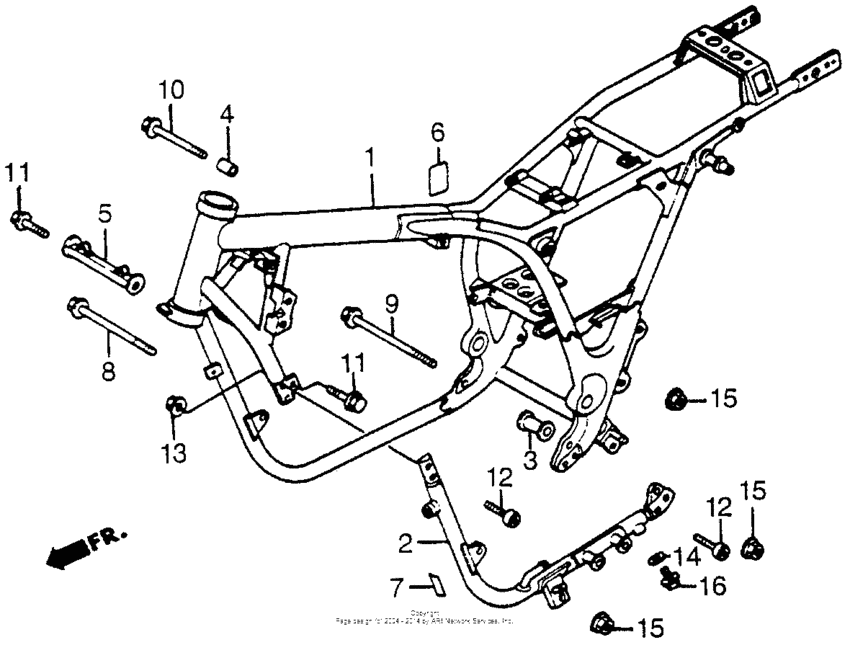

Frame Diagram Honda VF500 Magna V30
- Year
- 1985
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*FM100001 - JH2PC130*FM107580
- Engine Capacity
- 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50100-MJ8-010ZA
Body comp.,*nh-1*
|
50100-MJ8-010ZA |
— | ||
|
2
|
2
50210-MJ8-000ZA
Sub-frame *nh1*
|
50210-MJ8-000ZA |
— | ||
|
3
|
3
50213-KE7-000
Collar,eng mount
|
50213-KE7-000 |
— | ||
|
4
|
4
50218-KE8-000
Collar d,eng side
|
50218-KE8-000 |
— | ||
|
5
|
5
50220-MJ8-000
Stiffener, down tube
|
50220-MJ8-000 |
— | ||
|
6
|
6
87506-MJ8-670
Label
|
87506-MJ8-670 |
— | ||
|
7
|
7
87508-415-670 Mark |
87508-415-670 |
US $5.59 |
||
|
8
|
8
90101-KE8-000 Bolt, flg (10x260) |
90101-KE8-000 |
US $11.84 |
||
|
9
|
9
90102-KE7-000
Bolt,flg,10x282
|
90102-KE7-000 |
— | ||
|
10
|
10
90103-KE7-000 Bolt,flg,10x192 |
90103-KE7-000 |
US $9.40 |
||
|
11
|
11
90106-MJ8-000
Bolt
|
90106-MJ8-000 |
— | ||
|
12
|
12
90160-MJ8-000
Bolt,socket,8x27
|
90160-MJ8-000 |
— | ||
|
13
|
13
90208-425-870 Nut, flange, 8mm |
90208-425-870 |
from US $2.89 |
||
|
14
|
14
90441-028-010 Washer, sealing, 6mm |
90441-028-010 |
from US $2.15 |
||
|
15
|
15
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
16
|
16
96001-060-100-7 BoltFLANGE, 6X10 |
96001-060-100-7 |
from US $0.52 |
