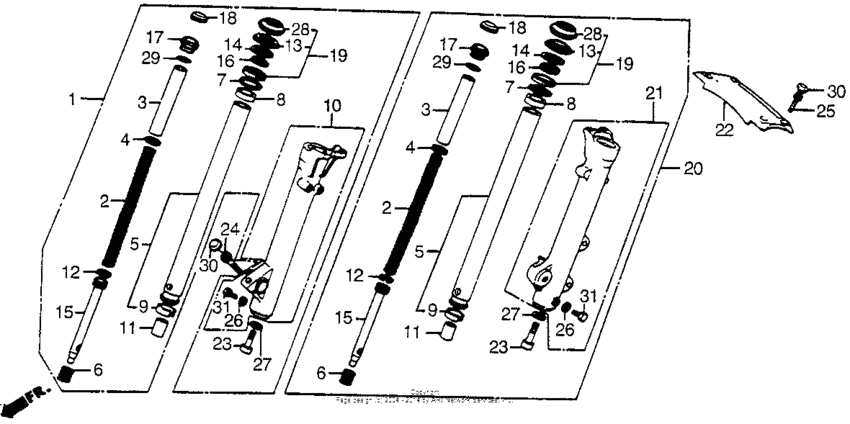

Front shock absorber Diagram Honda VF500 Magna V30
- Year
- 1985
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*FM100001 - JH2PC130*FM107580
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-MJ8-013
S/abs assy., r. fr.
|
51400-MJ8-013 |
— | ||
|
2
|
2
51401-MJ8-003
Spg,fr.cushion
|
51401-MJ8-003 |
— | ||
|
3
|
3
51402-MF8-003
Collar, spring
|
51402-MF8-003 |
— | ||
|
4
|
4
51403-ME4-003 Plate, spring joint |
51403-ME4-003 |
from US $3.11 |
||
|
5
|
5
51410-MJ8-013
Pipe comp.,fr.for
|
51410-MJ8-013 |
— | ||
|
6
|
6
51411-MG1-003 Spring, fr |
51411-MG1-003 |
US $9.66 |
||
|
7
|
7
51412-461-003 Ring, back-up |
51412-461-003 |
from US $4.28 |
||
|
8
|
8
51414-MN4-003 Bush, guide |
51414-MN4-003 |
from US $7.55 |
||
|
9
|
9
51415-461-003 Bush,slider |
51415-461-003 |
from US $12.49 |
||
|
10
|
10
51421-MJ8-003
Case,bottm
|
51421-MJ8-003 |
— | ||
|
11
|
11
51432-MJ8-003
Piece, oil lock
|
51432-MJ8-003 |
— | ||
|
12
|
12
51437-ME4-003 Ring, piston |
51437-ME4-003 |
from US $5.18 |
||
|
15
|
15
51440-MJ8-003
Pipe, seat
|
51440-MJ8-003 |
— | ||
|
16
|
16
51447-461-003 Circlip (50mm) |
51447-461-003 |
from US $3.78 |
||
|
17
|
17
51450-ME4-003
Bolt fr.fork
|
51450-ME4-003 |
— | ||
|
18
|
18
51457-MB1-003
Cap air valve
|
51457-MB1-003 |
— | ||
|
19
|
19
51490-KAZ-003 Seal set, fr. fork |
51490-KAZ-003 |
from US $26.85 |
||
|
20
|
20
51500-MJ8-013
S/abs assy., l. fr.
|
51500-MJ8-013 |
— | ||
|
21
|
21
51521-MJ8-003
Case,l.bottm
|
51521-MJ8-003 |
— | ||
|
22
|
22
53240-ME4-030
Brace.,fr.fork
Use up to Frame SN FM105840 |
53240-ME4-030 |
— | ||
|
23
|
23
90116-383-721 Bolt, socket (8mm)Use up to Frame SN FM105840 |
90116-383-721 |
from US $3.85 |
||
|
24
|
24
90152-ME5-000 Bolt, socket (8x28)Use up to Frame SN FM105840 |
90152-ME5-000 |
from US $3.48 |
||
|
24
|
24
96700-0802810 Bolt, socket (8x28)Use from Frame SN FM105841 |
96700-0802810 |
from US $0.81 |
||
|
25
|
25
90153-MB0-000
Bolt, socket (8x17)
|
90153-MB0-000 |
— | ||
| replacement | |||||
|
25
|
25
90153-MB0-405
Bolt, socket (8x17)
|
90153-MB0-405 |
— | ||
|
25
|
25
90153-MB0-405
Bolt, socket (8x17)
|
90153-MB0-405 |
— | ||
|
26
|
26
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.37 |
||
|
27
|
27
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
28
|
28
91254-KAZ-003 Dust seal |
91254-KAZ-003 |
from US $14.21 |
||
|
29
|
29
91307-MC8-005
O-ring,32.5x2.5
|
91307-MC8-005 |
— | ||
|
30
|
30
91455-MB0-010 Cap (8mm) |
91455-MB0-010 |
from US $1.48 |
||
|
31
|
31
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
