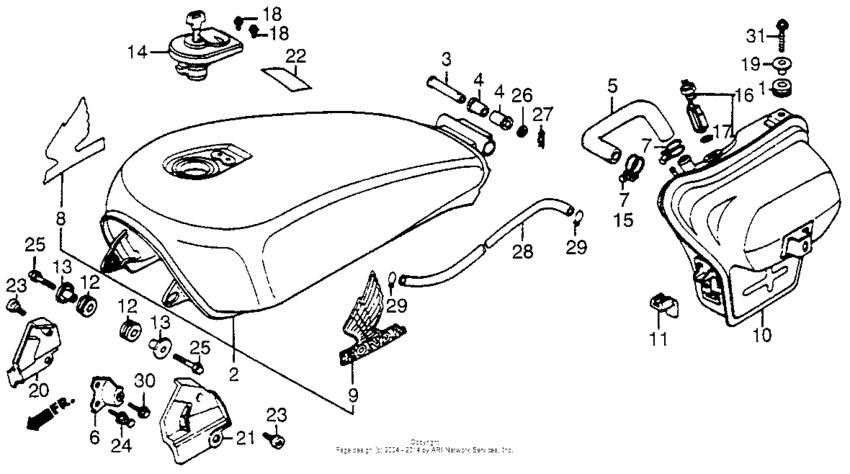

Fuel tank Diagram Honda VF500 Magna V30
- Year
- 1985
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*FM100001 - JH2PC130*FM107580
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
175A1-MJ8-770ZA
Tank, fuel *nh1z*
|
175A1-MJ8-770ZA |
— | ||
|
2
|
2
175A1-MJ8-770ZB
Tank se*r-114c-u*
|
175A1-MJ8-770ZB |
— | ||
|
3
|
3
17505-MB1-000
Shaft,tank pivot
|
17505-MB1-000 |
— | ||
|
4
|
4
17506-MB1-000 Cushion, fuel tank pivot |
17506-MB1-000 |
from US $5.48 |
||
|
5
|
5
17511-MJ8-000
Tube a.,fuel
|
17511-MJ8-000 |
— | ||
|
6
|
6
17515-MJ8-000
Brkt,l.fuel tank
|
17515-MJ8-000 |
— | ||
|
7
|
7
17519-ME9-003
Band (22mm)
|
17519-ME9-003 |
— | ||
|
8
|
8
17531-MB4-680
Mark,r,fuel tank
|
17531-MB4-680 |
— | ||
|
9
|
9
17532-MB4-680
Mark,l,fuel tank
|
17532-MB4-680 |
— | ||
|
10
|
10
17550-MJ8-000
Sub-tank, fuel
|
17550-MJ8-000 |
— | ||
|
11
|
11
17552-MB1-000
Rub,subtank mount
|
17552-MB1-000 |
— | ||
|
12
|
12
17611-MB1-000 Cushion, fr |
17611-MB1-000 |
from US $1.73 |
||
|
13
|
13
17612-MB1-000 Collar, fr |
17612-MB1-000 |
from US $11.99 |
||
|
14
|
14
17620-MB1-033 Cap, fuel filler |
17620-MB1-033 |
US $128.40 |
||
| replacement | |||||
|
14
|
14
17620-MB1-043 Cap, fuel filler |
17620-MB1-043 |
US $148.72 |
||
|
15
|
15
19517-MJ8-000
Clamp b,w/hose
|
19517-MJ8-000 |
— | ||
|
16
|
16
37810-MB1-008
Sensor,fuel reser
|
37810-MB1-008 |
— | ||
|
17
|
17
37811-MB1-008 Gasket |
37811-MB1-008 |
from US $2.56 |
||
|
18
|
18
45319-634-003 Screw-washer4X6 |
45319-634-003 |
from US $1.63 |
||
|
19
|
19
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
19
|
19
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.59 |
||
|
19
|
19
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
20
|
20
61403-MJ8-000
Cov r,fr.side
|
61403-MJ8-000 |
— | ||
|
21
|
21
61404-MJ8-000
Cov l,front side
|
61404-MJ8-000 |
— | ||
|
22
|
22
87560-ME9-670ZA Label *a73* (typeg) |
87560-ME9-670ZA |
from US $3.97 |
||
|
23
|
23
90104-MJ8-000
Bolt.socket 5x12
|
90104-MJ8-000 |
— | ||
|
24
|
24
90125-MJ8-000
Bolt (6x10)
|
90125-MJ8-000 |
— | ||
|
25
|
25
92600-06025-0B
Bolt,cap,6x25
|
92600-06025-0B |
— | ||
|
26
|
26
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
27
|
27
94251-08400 Pin, lock, 8mm |
94251-08400 |
US $0.59 |
||
|
28
|
28
95001-550-0850M *95001-55003-50m |
95001-550-0850M |
US $116.96 |
||
|
29
|
29
9500201120 Clip, tube (a12) |
9500201120 |
from US $0.89 |
||
|
30
|
30
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
30
|
30
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
30
|
30
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
31
|
31
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
