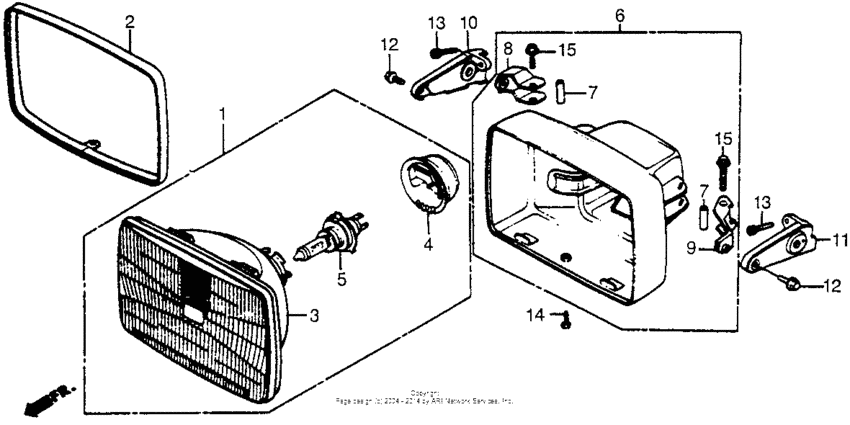

Headlight Diagram Honda VF500 Magna V30
- Year
- 1985
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*FM100001 - JH2PC130*FM107580
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-MB4-671
Light assy,head
|
33100-MB4-671 |
— | ||
|
2
|
2
33105-MB4-671
Ring,head light
|
33105-MB4-671 |
— | ||
|
3
|
3
33120-ME5-670
Headlight unit
|
33120-ME5-670 |
— | ||
|
4
|
4
33180-422-003 Cover, rubber |
33180-422-003 |
US $19.16 |
||
|
5
|
5
34901-MC7-601AH Bulb (12v60/55w) |
34901-MC7-601AH |
US $38.35 |
||
| replacement | |||||
|
5
|
5
34901-MC7-602 Bulb (12v 60/55w) |
34901-MC7-602 |
from US $45.32 |
||
|
6
|
6
61301-MJ8-671
Case head light
|
61301-MJ8-671 |
— | ||
|
7
|
7
61302-MB4-003
Collar
|
61302-MB4-003 |
— | ||
|
8
|
8
61303-MJ8-671
Braket comp.(r)
|
61303-MJ8-671 |
— | ||
|
9
|
9
61304-MJ8-671
Braket comp.(l)
|
61304-MJ8-671 |
— | ||
|
10
|
10
61312-MJ8-000
Stay,r.hdlt
|
61312-MJ8-000 |
— | ||
|
11
|
11
61313-MJ8-000
Stay,l.hdlt
|
61313-MJ8-000 |
— | ||
|
12
|
12
90106-MB2-000 Bolt, flange (8x16)Use up to Frame SN FM105840 |
90106-MB2-000 |
from US $2.96 |
||
|
13
|
13
90109-MB0-000 Bolt, socketUse up to Frame SN FM107130 |
90109-MB0-000 |
US $6.02 |
||
|
13
|
13
90157-MB1-000 Bolt, socket (8x18)Use up to Frame SN FM107130 |
90157-MB1-000 |
from US $4.88 |
||
|
13
|
13
96700-0801800 Bolt, socket (8x18)Use from Frame SN FM107131 |
96700-0801800 |
US $0.74 |
||
|
14
|
14
92301-05012-0B Bolt,recesse.5x12 |
92301-05012-0B |
from US $0.67 |
||
|
15
|
15
95701-0603502 Bolt, flange, 6x35 |
95701-0603502 |
from US $0.59 |
||
