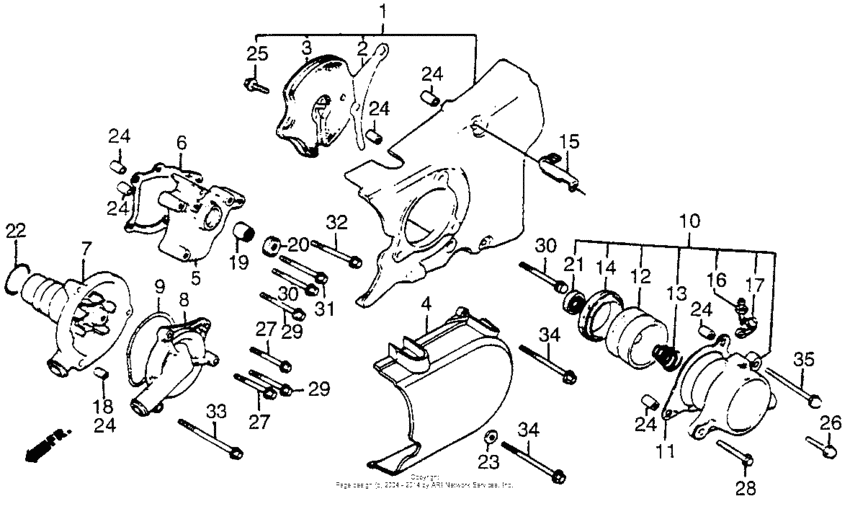

Left Crankcase Cover Diagram Honda VF500 Magna V30
- Year
- 1985
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*FM100001 - JH2PC130*FM107580
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11340-MJ8-010
Cover, l. crankcase
Use up to Engine SN 2103856 |
11340-MJ8-010 |
— | ||
|
2
|
2
11343-KE7-306
Gasket, l
|
11343-KE7-306 |
— | ||
|
3
|
3
11350-MJ8-000
Plate, l
|
11350-MJ8-000 |
— | ||
|
4
|
4
11360-MJ8-000
Cover, l. rr.
|
11360-MJ8-000 |
— | ||
|
5
|
5
11630-KE7-000
Cover, shift
|
11630-KE7-000 |
— | ||
|
6
|
6
11632-MY7-000 Gasket, shift cover |
11632-MY7-000 |
from US $10.51 |
||
|
7
|
7
19200-KE7-010
Pump comp.,water
Use up to Engine SN 2106937 |
19200-KE7-010 |
— | ||
|
8
|
8
19221-KE7-000
Cover,water pump
|
19221-KE7-000 |
— | ||
|
9
|
9
19226-KE7-010 Gasket |
19226-KE7-010 |
US $3.66 |
||
|
10
|
10
22860-MS2-870
Cylinder assy.
|
22860-MS2-870 |
— | ||
|
11
|
11
22862-MGJ-D00 Gasket, slave cylinder |
22862-MGJ-D00 |
from US $3.62 |
||
|
12
|
12
22863-MJ8-003 Piston |
22863-MJ8-003 |
from US $23.13 |
||
|
13
|
13
22864-MB0-003 Spring |
22864-MB0-003 |
from US $6.22 |
||
|
14
|
14
22865-MJ8-003 Cup, piston |
22865-MJ8-003 |
from US $7.22 |
||
|
15
|
15
30301-MB0-000 Clamp, pulser wire |
30301-MB0-000 |
US $4 |
||
|
16
|
16
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
17
|
17
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $3.70 |
||
|
18
|
18
90501-MB0-000 Pin, dowel (8x14) |
90501-MB0-000 |
from US $2.22 |
||
|
19
|
19
91002-459-773 Needle,brg |
91002-459-773 |
US $7.25 |
||
|
20
|
20
91204-KE8-003 Oil seal, 13x22x5 (arai) |
91204-KE8-003 |
from US $2.68 |
||
|
21
|
21
91209-MB0-003 Oil seal (8x18x5) |
91209-MB0-003 |
from US $2.23 |
||
|
22
|
22
91302-MB0-013 O-ring (32.95x2.62) |
91302-MB0-013 |
from US $3.03 |
||
|
23
|
23
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
24
|
24
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
25
|
25
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
26
|
26
96001-0602007 Bolt, flange (6x20) |
96001-0602007 |
from US $0.59 |
||
|
27
|
27
96001-0602507 Bolt, flange (6x25) |
96001-0602507 |
from US $0.59 |
||
|
28
|
28
96001-0602807 Bolt, flange (6x28) |
96001-0602807 |
from US $0.74 |
||
|
29
|
29
96001-0603207 Bolt, flange (6x32) |
96001-0603207 |
from US $0.74 |
||
|
30
|
30
96001-0603507 Bolt, flange (6x35) |
96001-0603507 |
from US $0.74 |
||
|
31
|
31
96001-0604007 Bolt, flange (6x40) |
96001-0604007 |
from US $0.74 |
||
|
32
|
32
96001-0604507 Bolt, flange (6x45) |
96001-0604507 |
from US $0.81 |
||
|
33
|
33
96001-0606507 Bolt, flange (6x65) |
96001-0606507 |
from US $0.81 |
||
|
34
|
34
96001-0609000 Bolt, flange (6x90) |
96001-0609000 |
from US $1.04 |
||
|
35
|
35
96001-0610007 Bolt, flange (6x100) |
96001-0610007 |
from US $1.04 |
