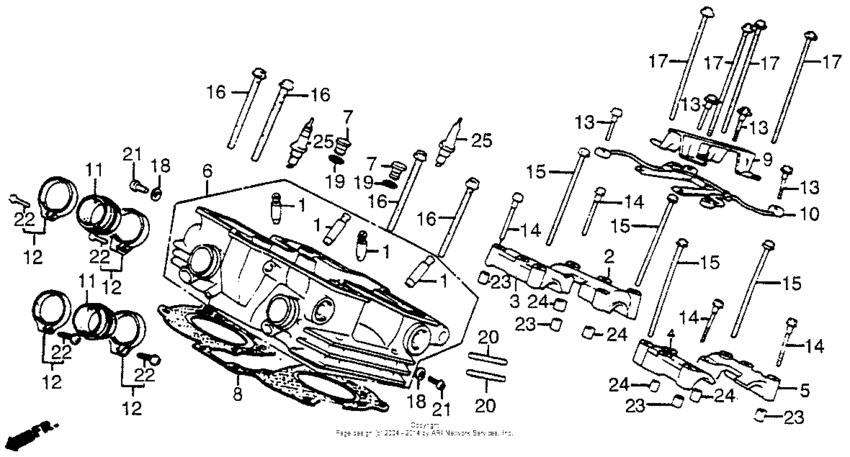

Rear cylinder head Diagram Honda VF500 Magna V30
- Year
- 1985
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*FM100001 - JH2PC130*FM107580
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12204-KE7-305 Guide, valve (os) |
12204-KE7-305 |
US $13.02 |
||
|
2
|
2
12211-KM3-010
Holder a, camshaft
|
12211-KM3-010 |
— | ||
|
2
|
2
12211-KM3-000 Holder a, camshaftUse up to Engine SN 2106937 |
12211-KM3-000 |
US $46.05 |
||
|
3
|
3
12212-KM3-010
Holder b, camshaft
|
12212-KM3-010 |
— | ||
|
3
|
3
12212-KM3-000 Holder b, camshaftUse up to Engine SN 2106937 |
12212-KM3-000 |
US $46.05 |
||
|
4
|
4
12213-KE7-020
Holder c, camshaft
Use up to Engine SN 2106937 |
12213-KE7-020 |
— | ||
|
5
|
5
12214-KE7-020
Holder d, camshaft
Use up to Engine SN 2106937 |
12214-KE7-020 |
— | ||
|
6
|
6
12220-MJ8-010 Head, rrUse up to Engine SN 2106937 |
12220-MJ8-010 |
US $1,327.76 |
||
|
6
|
6
12220-MJ8-040
Head, rr.
Use up to Engine SN 2106937 |
12220-MJ8-040 |
— | ||
|
7
|
7
12229-KE7-000
Cap, water jacket
|
12229-KE7-000 |
— | ||
|
8
|
8
12252-MJ8-406
Gasket, rr. cyl hd
Use up to Engine SN 2106937 |
12252-MJ8-406 |
— | ||
|
9
|
9
14544-MJ8-010
Guide c,cam chain
|
14544-MJ8-010 |
— | ||
|
10
|
10
15311-MJ8-000
Pipe,oil path
|
15311-MJ8-000 |
— | ||
|
11
|
11
16211-MJ8-000 Insulator,carb. |
16211-MJ8-000 |
from US $13.52 |
||
|
12
|
12
16223-KS5-000 Band, insulator |
16223-KS5-000 |
from US $8.14 |
||
|
13
|
13
90009-HA0-000 Bolt, flange (6x52) |
90009-HA0-000 |
from US $3.85 |
||
|
14
|
14
90003-KE8-000
Bolt,flg.,6x54
|
90003-KE8-000 |
— | ||
|
15
|
15
90008-KE8-010 Bolt,ubs.,8x130 |
90008-KE8-010 |
US $6.81 |
||
|
16
|
16
90011-KE8-000 Bolt,ubs,8x80 |
90011-KE8-000 |
from US $4.88 |
||
|
17
|
17
90012-KE8-000
Bolt,ubs,8x151
|
90012-KE8-000 |
— | ||
|
18
|
18
90452-323-000 Washer, sealing, 5mm |
90452-323-000 |
from US $2.22 |
||
|
19
|
19
91312-107-000 O-ring (7x1.7) |
91312-107-000 |
from US $2.37 |
||
|
20
|
20
92700-06050-0E Bolt,stud,6x50 |
92700-06050-0E |
from US $0.74 |
||
|
21
|
21
93500-050-080-G ScrewPAN, 5X8 |
93500-050-080-G |
from US $0.37 |
||
|
22
|
22
93500-050280G Screw, pan, 5x28 |
93500-050280G |
from US $0.44 |
||
|
23
|
23
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
24
|
24
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
25
|
25
98069-57916 Spark plug (dpr7ea-9) |
98069-57916 |
from US $3.49 |
||
|
25
|
25
9806957926 S/plg (x22epr-u9) |
9806957926 |
from US $3.71 |
||
|
25
|
25
98069-58916 Spark plug (NGK dpr8ea-9) |
98069-58916 |
from US $3.84 |
||
|
25
|
25
98069-58926 Spark plug (Denso x24epr-u9) |
98069-58926 |
from US $3.71 |
||
|
25
|
25
9806959916 S/plg (dpr9ea-9) |
9806959916 |
from US $4.08 |
||
|
25
|
25
9806959926 S/plg (x27epr-u9) |
9806959926 |
from US $3.71 |
