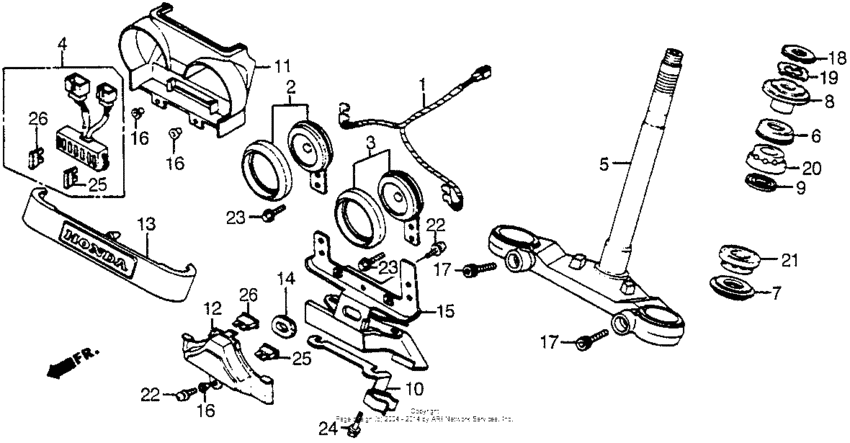

Steering stem Diagram Honda VF500 Magna V30
- Year
- 1985
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*FM100001 - JH2PC130*FM107580
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32106-MJ8-000
Sub-harness, horn
|
32106-MJ8-000 |
— | ||
|
2
|
2
38110-MJ8-672 Horn assy. (high) |
38110-MJ8-672 |
US $57.36 |
||
| replacement | |||||
|
2
|
2
38110-MJ8-673 Horn assy. (high) |
38110-MJ8-673 |
US $41.48 |
||
|
3
|
3
38120-MJ8-672 Horn assy,low |
38120-MJ8-672 |
US $42.68 |
||
|
4
|
4
38200-MJ8-672
Plat assy fuse
|
38200-MJ8-672 |
— | ||
|
5
|
5
53200-MJ8-000
Stem comp.,strg
|
53200-MJ8-000 |
— | ||
|
6
|
6
53213-MB4-771 Dust seal |
53213-MB4-771 |
from US $5.69 |
||
|
7
|
7
53214-371-010 Dust seal |
53214-371-010 |
from US $6.50 |
||
|
8
|
8
53220-MB2-000 Thred,strg.hndl. |
53220-MB2-000 |
from US $21.62 |
||
|
9
|
9
53223-371-010
Holder, grease
|
53223-371-010 |
— | ||
|
11
|
11
61305-MJ8-000
Case,fuse holder
|
61305-MJ8-000 |
— | ||
|
12
|
12
61306-MJ8-000
Cover,fuse holder
|
61306-MJ8-000 |
— | ||
|
13
|
13
61401-MJ8-770
Cover,bott.bridge
|
61401-MJ8-770 |
— | ||
|
14
|
14
61402-MJ8-000
Grom bottom cover
|
61402-MJ8-000 |
— | ||
|
15
|
15
61405-MJ8-000
Stay horn&fuse bx
|
61405-MJ8-000 |
— | ||
|
16
|
16
61406-MB1-000 Collar,fr.side |
61406-MB1-000 |
US $2.63 |
||
|
17
|
17
90152-MB0-000
Bolt, socket (10x30)
|
90152-MB0-000 |
— | ||
|
18
|
18
90302-425-830 Thread |
90302-425-830 |
from US $10.82 |
||
|
19
|
19
90506-425-830 Washer, lock |
90506-425-830 |
from US $4.74 |
||
|
20
|
20
91015-KT8-005 Bearing, head pipe |
91015-KT8-005 |
from US $18.77 |
||
|
21
|
21
91016-KT8-005 Bearing, head pipe |
91016-KT8-005 |
from US $20.25 |
||
|
22
|
22
93891-050-120-7 Screw-washer5X12 |
93891-050-120-7 |
from US $0.44 |
||
|
23
|
23
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
23
|
23
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
23
|
23
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
25
|
25
98200-31000 FuseBLADE (10A) |
98200-31000 |
from US $0.52 |
||
|
26
|
26
98200-31500 FuseBLADE (15A) |
98200-31500 |
from US $0.52 |
||
