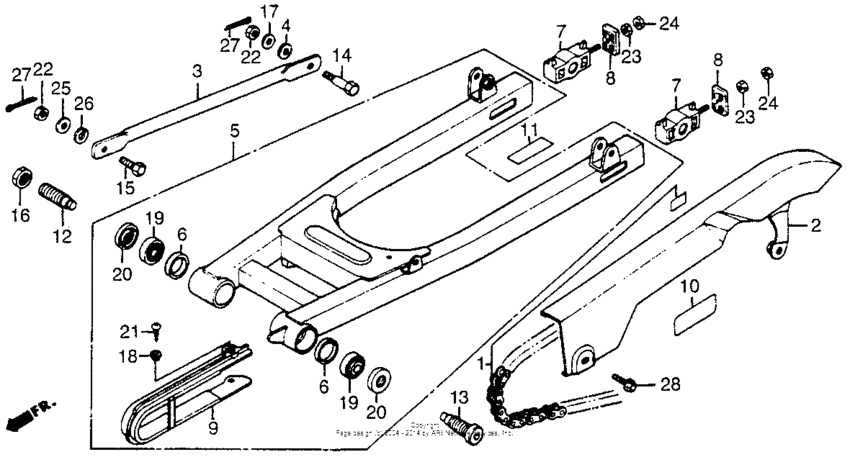

Swingarm Diagram Honda VF500 Magna V30
- Year
- 1985
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*FM100001 - JH2PC130*FM107580
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
405A3-MJ8-003
Chain set,drive
|
405A3-MJ8-003 |
— | ||
|
1
|
1
405A3-MJ8-005
Chain set,drive
|
405A3-MJ8-005 |
— | ||
|
2
|
2
40510-MJ8-000
Case,drive chain
|
40510-MJ8-000 |
— | ||
|
3
|
3
43431-415-010
Arm, rr.
|
43431-415-010 |
— | ||
|
4
|
4
43434-ME1-670 Rubber, stopper arm |
43434-ME1-670 |
from US $2.96 |
||
|
5
|
5
52100-MJ8-000ZA
Swingarm, rr. *nh1*
|
52100-MJ8-000ZA |
— | ||
|
6
|
6
52118-MJ8-003
Cap,rr.fork pivot
|
52118-MJ8-003 |
— | ||
|
7
|
7
52120-KG4-000 Coll,chain tensio |
52120-KG4-000 |
US $34.78 |
||
|
8
|
8
52121-KG4-000
Plat chain tensio
|
52121-KG4-000 |
— | ||
|
9
|
9
52170-MJ8-000
Slider,chain
|
52170-MJ8-000 |
— | ||
|
10
|
10
87505-MJ8-670
Label, tire caution
|
87505-MJ8-670 |
— | ||
|
11
|
11
87507-MJ8-670
Label
|
87507-MJ8-670 |
— | ||
|
12
|
12
90121-MJ8-000
Bolt,r pivot
|
90121-MJ8-000 |
— | ||
|
13
|
13
90122-MJ8-000
Bolt,l pivot
|
90122-MJ8-000 |
— | ||
|
14
|
14
90127-393-000 Bolt, rr |
90127-393-000 |
from US $4.59 |
||
|
15
|
15
90133-286-000 Bolt, rr |
90133-286-000 |
from US $4.59 |
||
|
16
|
16
90301-KE8-000 Nut, pivot lock |
90301-KE8-000 |
from US $6.60 |
||
|
17
|
17
90505-425-000 Washer, 8mm |
90505-425-000 |
from US $1.68 |
||
| replacement | |||||
|
17
|
17
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
17
|
17
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
18
|
18
90556-044-000 Washer, fr |
90556-044-000 |
from US $1.35 |
||
|
19
|
19
91066-MC7-004 R/brg.tap n/com. |
91066-MC7-004 |
US $61.20 |
||
|
20
|
20
91268-KE8-003
Dust seal,22x40x5
|
91268-KE8-003 |
— | ||
|
21
|
21
93901-25220 ScrewTAPPING, 5X12 |
93901-25220 |
from US $0.38 |
||
|
22
|
22
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
23
|
23
94030-08000 NutHEX., 8MM |
94030-08000 |
from US $0.44 |
||
|
24
|
24
9403108000 Nut, hex. (8mm) |
9403108000 |
from US $0.45 |
||
|
25
|
25
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
26
|
26
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
||
|
27
|
27
94201-29220
Pin
|
94201-29220 |
— | ||
| replacements | |||||
|
27
|
27
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
27
|
27
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
27
|
27
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
|
27
|
27
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
28
|
28
96001-0601002 Bolt, flange (6x10) |
96001-0601002 |
from US $0.74 |
||
