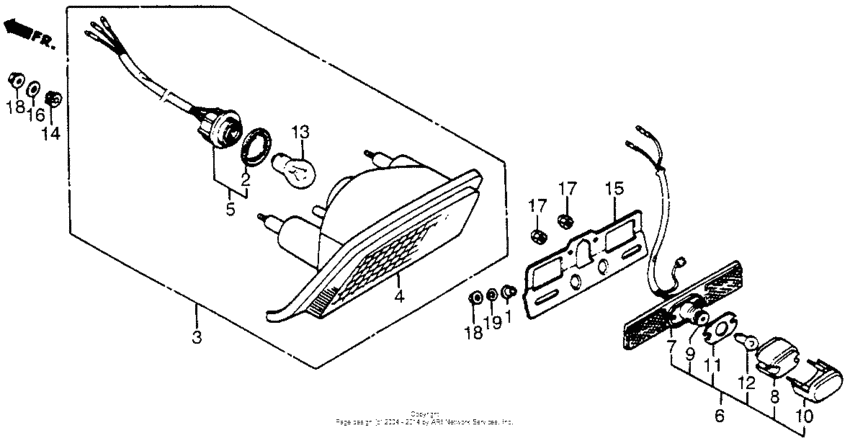

Taillight Diagram Honda VF500 Magna V30
- Year
- 1985
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*FM100001 - JH2PC130*FM107580
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31215-MJ3-000
Collar b, rod end
|
31215-MJ3-000 |
— | ||
|
2
|
2
33518-SA2-003 GasketSEAL |
33518-SA2-003 |
from US $2.24 |
||
|
3
|
3
33701-MJ8-671
Unit,tail light
|
33701-MJ8-671 |
— | ||
|
4
|
4
33704-MJ8-671
Sub tail light
|
33704-MJ8-671 |
— | ||
|
5
|
5
33705-MJ8-671
Wire, taillight
|
33705-MJ8-671 |
— | ||
|
6
|
6
33720-MJ8-670
Light assy licen
|
33720-MJ8-670 |
— | ||
|
7
|
7
33721-MJ8-670
Base comp.
|
33721-MJ8-670 |
— | ||
|
8
|
8
33722-MB1-013 Lens, license |
33722-MB1-013 |
from US $15.37 |
||
|
9
|
9
33725-MB4-671
Wire, license light
|
33725-MB4-671 |
— | ||
|
10
|
10
33727-MB1-003 Cover |
33727-MB1-003 |
from US $17.95 |
||
|
11
|
11
33729-MB1-003 Gasket, lens |
33729-MB1-003 |
from US $3.85 |
||
|
12
|
12
34909-505-003 Bulb12V8W |
34909-505-003 |
US $37.40 |
||
| replacement | |||||
|
12
|
12
34904-634-611 BULB (12V 5W) (ECE)(12V, 5W) ECE |
34904-634-611 |
from US $1.41 |
||
|
13
|
13
34906-MG9-771 Bulb (12v27/7w) |
34906-MG9-771 |
from US $5.10 |
||
|
14
|
14
80201-MJ8-000 Rubber, taillight |
80201-MJ8-000 |
from US $4.47 |
||
|
15
|
15
84701-MJ8-670
Brkt.,number plat
|
84701-MJ8-670 |
— | ||
|
16
|
16
90136-428-870 Washer, tank setting |
90136-428-870 |
from US $2.37 |
||
|
17
|
17
94021-040200S Nut, cap (4mm) |
94021-040200S |
US $0.52 |
||
|
18
|
18
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
19
|
19
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
