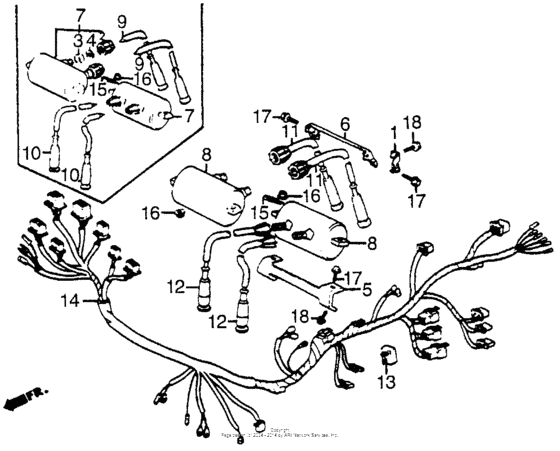

Wire harness Diagram Honda VF500 Magna V30
- Year
- 1985
- Model code
- VF500C A
- Sales region
- USA
- Frame
- JH2PC130*FM100001 - JH2PC130*FM107580
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16716-MJ8-010
Clamp, fuel tube
|
16716-MJ8-010 |
— | ||
|
5
|
5
30506-MJ8-300
Stay
|
30506-MJ8-300 |
— | ||
|
6
|
6
30507-MJ8-000
Stay b
|
30507-MJ8-000 |
— | ||
|
8
|
8
30510-MB0-703
Coil comp.,ign.
Use up to Frame SN FM105816 |
30510-MB0-703 |
— | ||
|
11
|
11
30751-MB0-950
Cap,assy,high/t 1
|
30751-MB0-950 |
— | ||
|
12
|
12
30752-MJ8-670
Cap assy,high/t 2
|
30752-MJ8-670 |
— | ||
|
13
|
13
31700-124-003
Rectifier assy., silicon (stanley)
|
31700-124-003 |
— | ||
| replacement | |||||
|
13
|
13
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
13
|
13
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
14
|
14
32100-MJ8-000
Harness wire
|
32100-MJ8-000 |
— | ||
|
15
|
15
32925-958-000 Clip, pulser cord |
32925-958-000 |
from US $2.29 |
||
|
16
|
16
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
17
|
17
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
17
|
17
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
17
|
17
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
18
|
18
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
