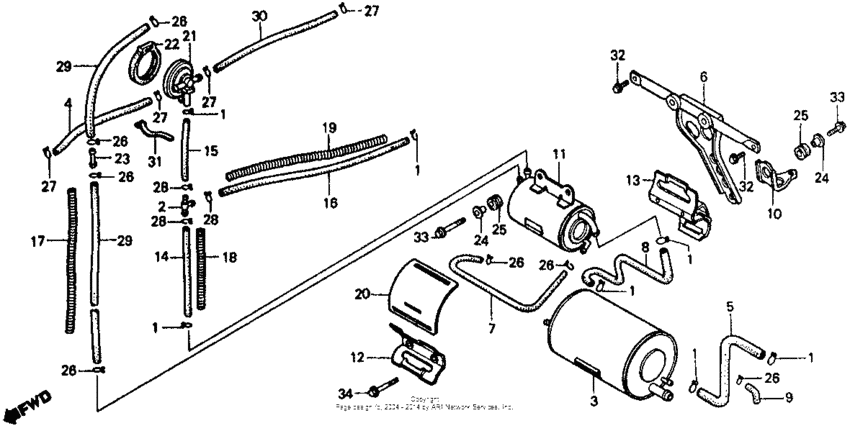

Canister ii + purge controlvalve ii Diagram Honda VF500 Interceptor
- Year
- 1986
- Model code
- VF500F AC
- Sales region
- USA
- Frame
- JH2PC121*GM200001 - JH2PC121*GM202293
- Engine Capacity
- 500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15772-500-010 Clip, breather tube |
15772-500-010 |
from US $4.44 |
||
|
2
|
2
16958-MB0-000 Joint, fuel tube |
16958-MB0-000 |
from US $13.32 |
||
|
3
|
3
17410-MM1-750
Canister a
|
17410-MM1-750 |
— | ||
|
4
|
4
17411-MM1-750
Tube, purge
|
17411-MM1-750 |
— | ||
|
5
|
5
17413-MF2-680
Tube, joint
|
17413-MF2-680 |
— | ||
|
6
|
6
17415-MM1-750
Bracket, canister
|
17415-MM1-750 |
— | ||
|
7
|
7
17416-MM1-750
Tube a, canister
|
17416-MM1-750 |
— | ||
|
8
|
8
17417-MM1-750
Tube b, canister
|
17417-MM1-750 |
— | ||
|
9
|
9
17418-MM1-750
Tube, canister drain
|
17418-MM1-750 |
— | ||
|
10
|
10
17419-MM1-750
Bracket, canister
|
17419-MM1-750 |
— | ||
|
11
|
11
17420-MM1-750
Canister b
|
17420-MM1-750 |
— | ||
|
12
|
12
17421-MM1-750
Band, fr. canister
|
17421-MM1-750 |
— | ||
|
13
|
13
17422-MM1-750
Band, fr. canister
|
17422-MM1-750 |
— | ||
|
14
|
14
17423-MM1-750
Tube a, purge
|
17423-MM1-750 |
— | ||
|
15
|
15
17424-MM1-750
Tube b, purge
|
17424-MM1-750 |
— | ||
|
16
|
16
17425-MM1-750
Tube c, purge
|
17425-MM1-750 |
— | ||
|
17
|
17
17426-MM1-750
Spring
|
17426-MM1-750 |
— | ||
|
18
|
18
17427-MM1-750
Spring a
|
17427-MM1-750 |
— | ||
|
19
|
19
17428-MM1-750
Spring b
|
17428-MM1-750 |
— | ||
|
20
|
20
17429-MM1-750
Guard, canister
|
17429-MM1-750 |
— | ||
|
21
|
21
17440-MJ4-770
Valve, purge control
|
17440-MJ4-770 |
— | ||
|
22
|
22
17451-ME5-760 Rubber |
17451-ME5-760 |
from US $7.10 |
||
|
23
|
23
38562-663-920 Joint bWASHER TUBE (MITSUBA) |
38562-663-920 |
from US $3.26 |
||
|
24
|
24
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
24
|
24
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.59 |
||
|
24
|
24
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
25
|
25
61304-415-000 Rubber |
61304-415-000 |
from US $2.96 |
||
|
26
|
26
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
27
|
27
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
28
|
28
9500202130 Clip, tube (b12.5) |
9500202130 |
from US $0.52 |
||
|
29
|
29
95005-450-0120M Bulk hose (4.5x1000) |
95005-450-0120M |
from US $6.96 |
||
|
30
|
30
95005-550-0320M Bulk hose (5.5mm x 3000mm)Length 3000mm |
95005-550-0320M |
from US $24.48 |
||
|
31
|
31
9501461200 Band a2, wire |
9501461200 |
from US $1.24 |
||
|
32
|
32
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
33
|
33
95701-060-220-7 BoltFLANGE, 6X22 |
95701-060-220-7 |
from US $0.59 |
||
|
34
|
34
95701-060-400-7 BoltFLANGE, 6X40 |
95701-060-400-7 |
from US $0.59 |
||
