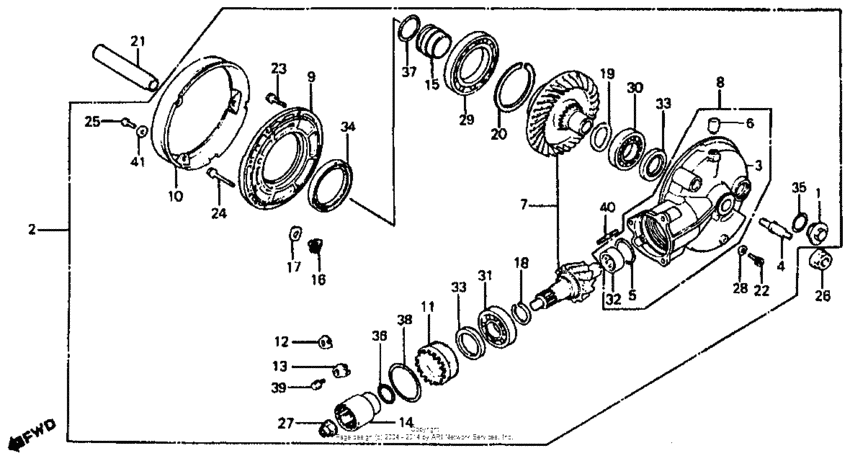

Final driven gear Diagram Honda VF700 Magna
- Year
- 1985
- Model code
- VF700C AC
- Sales region
- USA
- Frame
- JH2RC211*FM100007 - JH2RC211*FM101325
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41511-ME5-000 Cap, gear case oil |
41511-ME5-000 |
from US $6.53 |
||
|
2
|
2
41300-MK3-670
Gear assy., final
|
41300-MK3-670 |
— | ||
|
3
|
3
41301-MK3-000
Case, final gear
|
41301-MK3-000 |
— | ||
|
4
|
4
41303-463-300
Stay, rubber (lower)
|
41303-463-300 |
— | ||
|
5
|
5
41305-MB4-770 Ring, stopper |
41305-MB4-770 |
from US $3.70 |
||
|
6
|
6
41306-MB0-020 Cap, breather |
41306-MB0-020 |
from US $11.10 |
||
|
6
|
6
41306-ME5-305 Breather assy |
41306-ME5-305 |
US $15.33 |
||
|
7
|
7
41310-MK3-670
Gear set,final
|
41310-MK3-670 |
— | ||
|
8
|
8
41311-MK3-305
Case set, final
|
41311-MK3-305 |
— | ||
|
9
|
9
41321-ME5-770 Cover, gear case |
41321-ME5-770 |
US $134.50 |
||
| replacement | |||||
|
9
|
9
41321-ME5-771 Cover, gear case |
41321-ME5-771 |
from US $150.67 |
||
|
10
|
10
41324-MB0-010 Plate, dust guard |
41324-MB0-010 |
from US $91.53 |
||
|
11
|
11
41331-MB0-000 Retainer,bearing |
41331-MB0-000 |
from US $87.31 |
||
|
12
|
12
41332-415-000 Lock a, bearing adj. |
41332-415-000 |
from US $2.44 |
||
|
13
|
13
41333-415-000 Lock b, bearing adj. |
41333-415-000 |
from US $2.44 |
||
|
14
|
14
41410-ME5-000 Joint,pinion |
41410-ME5-000 |
from US $83.08 |
||
|
15
|
15
41433-MB0-010 Holder, o-ring |
41433-MB0-010 |
from US $7.25 |
||
|
16
|
16
41436-MB0-310 Pin |
41436-MB0-310 |
from US $15.64 |
||
|
17
|
17
41437-MB0-310 Shim a (0.10) |
41437-MB0-310 |
from US $4 |
||
|
17
|
17
41438-MB0-310 Shim b (0.15) |
41438-MB0-310 |
from US $4 |
||
|
18
|
18
41450-MB0-000
Shim a (1.82)
|
41450-MB0-000 |
— | ||
|
18
|
18
41451-MB0-000
Shim b (1.88)
|
41451-MB0-000 |
— | ||
|
18
|
18
41452-MB0-000
Shim c (1.94)
|
41452-MB0-000 |
— | ||
|
18
|
18
41453-MB0-000
Shim d (2.00)
|
41453-MB0-000 |
— | ||
|
18
|
18
41454-MB0-000
Shim e (2.06)
|
41454-MB0-000 |
— | ||
|
18
|
18
41455-MB0-000
Shim f (2.12)
|
41455-MB0-000 |
— | ||
|
18
|
18
41456-MB0-000
Shim g (2.18)
|
41456-MB0-000 |
— | ||
|
19
|
19
41510-MB0-003 Washer (35x40) |
41510-MB0-003 |
from US $7.62 |
||
|
20
|
20
41530-MB0-000 Spacer a (1.82) |
41530-MB0-000 |
from US $10.06 |
||
|
20
|
20
41531-MB0-000 Spacer b (1.88) |
41531-MB0-000 |
from US $10.06 |
||
|
20
|
20
41532-MB0-000 Spacer c (1.94) |
41532-MB0-000 |
from US $10.06 |
||
|
20
|
20
41533-MB0-000 Spacer d (2.00) |
41533-MB0-000 |
from US $10.06 |
||
|
20
|
20
41534-MB0-000 Spacer e (2.06) |
41534-MB0-000 |
US $17.92 |
||
|
20
|
20
41535-MB0-000 Spacer f (2.12) |
41535-MB0-000 |
US $17.92 |
||
|
20
|
20
41536-MB0-000 Spacer g (2.18) |
41536-MB0-000 |
US $17.92 |
||
|
20
|
20
41537-MB0-000 Spacer h (2.24) |
41537-MB0-000 |
US $17.92 |
||
|
20
|
20
41538-MB0-000 Spacer i (2.30) |
41538-MB0-000 |
US $17.92 |
||
|
21
|
21
42625-MAH-000 Collar b, rr. |
42625-MAH-000 |
from US $18.18 |
||
|
22
|
22
90109-ME5-770 Bolt, socket (8x11) |
90109-ME5-770 |
from US $3.85 |
||
|
23
|
23
90133-MB0-000 Bolt, flange (8x27) |
90133-MB0-000 |
from US $5.77 |
||
|
24
|
24
90134-371-000 Bolt, flange (10x38) |
90134-371-000 |
US $6.94 |
||
|
25
|
25
90170-MB0-000 Bolt, hex. (6x16) |
90170-MB0-000 |
from US $2.29 |
||
|
26
|
26
90305-MB4-003 Nut, flange (18mm) |
90305-MB4-003 |
from US $7.15 |
||
|
27
|
27
90381-MB0-010 Nut, hex. (16mm) |
90381-MB0-010 |
from US $5.10 |
||
|
28
|
28
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.48 |
||
|
29
|
29
91051-MB0-005 Bearing (16012c3) |
91051-MB0-005 |
from US $74.12 |
||
|
30
|
30
91052-MB0-003 Bearing (57/34c3) |
91052-MB0-003 |
from US $24.28 |
||
|
31
|
31
91061-MB0-005 Bearing (6305) |
91061-MB0-005 |
from US $80.24 |
||
|
32
|
32
91062-MG8-005 Bearing (19/18) |
91062-MG8-005 |
from US $21.08 |
||
|
33
|
33
91261-MB0-003 Oil seal (34x50x7) |
91261-MB0-003 |
from US $9.77 |
||
|
34
|
34
91265-MB0-003 Oil seal (60x80x8) |
91265-MB0-003 |
from US $12.28 |
||
|
35
|
35
91302-001-020 O-ring, 30.8mm |
91302-001-020 |
from US $3.63 |
||
|
36
|
36
91305-679-003 O-ring22.1X2 |
91305-679-003 |
from US $3.58 |
||
|
37
|
37
91356-MB0-005 O-ring (35.2x2.4) |
91356-MB0-005 |
from US $2.74 |
||
|
38
|
38
91353-MB0-003 O-ring (58.5x3.5) |
91353-MB0-003 |
from US $4 |
||
|
38
|
38
91359-MB0-000 O-ring, 58.5x3.5 |
91359-MB0-000 |
from US $3.74 |
||
|
39
|
39
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
39
|
39
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
39
|
39
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
40
|
40
90125-ME5-000
Bolt stud 8x38
|
90125-ME5-000 |
— | ||
|
41
|
41
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
