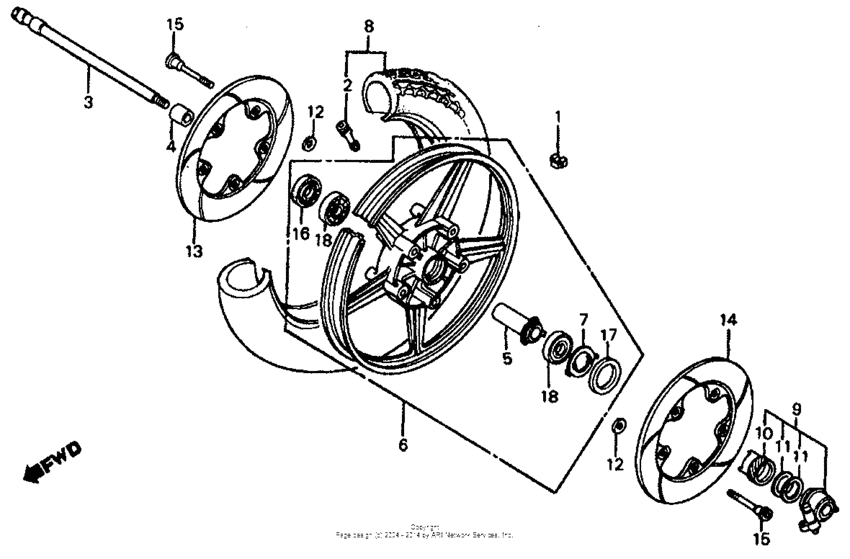

Front wheel 85-86 Diagram Honda VF700 Magna
- Year
- 1985
- Model code
- VF700C AC
- Sales region
- USA
- Frame
- JH2RC211*FM100007 - JH2RC211*FM101325
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42704-MB0-000 Weight (10g) |
42704-MB0-000 |
from US $9.03 |
||
| replacement | |||||
|
1
|
1
42704-MCF-D60 Weight, balance (10) |
42704-MCF-D60 |
from US $9.03 |
||
|
1
|
1
42704-MCF-D60 Weight, balance (10) |
42704-MCF-D60 |
from US $9.03 |
||
|
1
|
1
42705-MB0-000 Weight (20g) |
42705-MB0-000 |
US $14.50 |
||
| replacement | |||||
|
1
|
1
42705-MCF-D60 Weight, balance (20) |
42705-MCF-D60 |
from US $10.95 |
||
|
1
|
1
42705-MCF-D60 Weight, balance (20) |
42705-MCF-D60 |
from US $10.95 |
||
|
1
|
1
42706-MB0-000 Weight (30g) |
42706-MB0-000 |
US $17.65 |
||
| replacement | |||||
|
1
|
1
42706-MCF-D60 Weight, balance (30) |
42706-MCF-D60 |
from US $10.95 |
||
|
1
|
1
42706-MCF-D60 Weight, balance (30) |
42706-MCF-D60 |
from US $10.95 |
||
|
2
|
2
42753-GC7-821 Valve, rim |
42753-GC7-821 |
US $13.26 |
||
|
2
|
2
42753-VM0-003 Valve, rim |
42753-VM0-003 |
from US $10.06 |
||
|
3
|
3
44301-461-770 Axle, fr. wheel |
44301-461-770 |
US $71.81 |
||
|
4
|
4
44311-460-840 Colr, fr. wheel side |
44311-460-840 |
US $14.51 |
||
|
5
|
5
44620-MB0-000 Collar, fr |
44620-MB0-000 |
US $10.58 |
||
|
6
|
6
44650-MK3-305
Wheel comp.,front
|
44650-MK3-305 |
— | ||
|
7
|
7
44680-410-000 Retainer, gear box |
44680-410-000 |
from US $4.48 |
||
|
8
|
8
44710-MG8-673
Tire (110/90-18)
|
44710-MG8-673 |
— | ||
|
9
|
9
44800-MB0-013 Gear box assy.,sp |
44800-MB0-013 |
from US $55.55 |
||
|
10
|
10
44806-MB0-003 Gear,speedometer |
44806-MB0-003 |
from US $19.34 |
||
|
11
|
11
44809-402-000 Washer |
44809-402-000 |
from US $2.44 |
||
|
12
|
12
45128-ME2-003 Shim, damping |
45128-ME2-003 |
from US $3.03 |
||
|
13
|
13
45251-MK3-010
Disk,r.fr.brake
|
45251-MK3-010 |
— | ||
|
14
|
14
45351-MK3-010
Disk,l.fr.brake
|
45351-MK3-010 |
— | ||
|
15
|
15
90106-MF2-010 Bolt, fr. (8x57) |
90106-MF2-010 |
from US $8.16 |
||
|
16
|
16
91252-MC7-003 Dust seal (22x42x7) |
91252-MC7-003 |
from US $6.07 |
||
|
17
|
17
91258-410-013 Dust seal (40x50x5) |
91258-410-013 |
from US $3.60 |
||
|
18
|
18
96150-6302010 Bearing (6302uu) |
96150-6302010 |
from US $9.18 |
||
