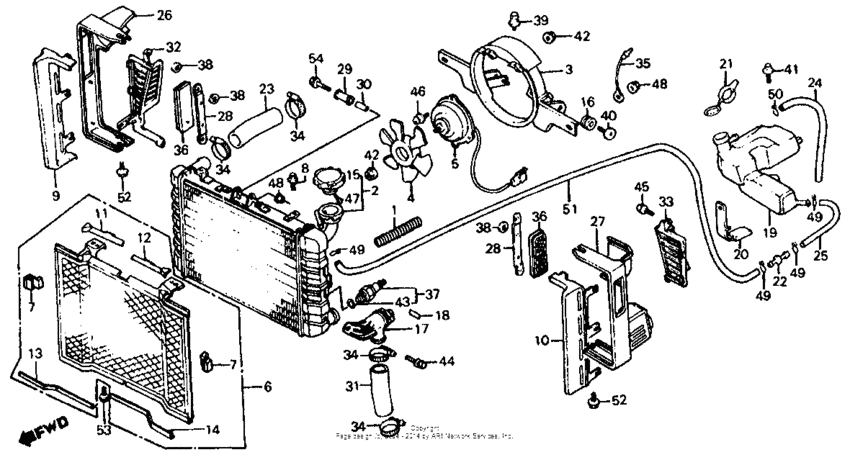

Radiator 85-86 Diagram Honda VF700 Magna
- Year
- 1985
- Model code
- VF700C AC
- Sales region
- USA
- Frame
- JH2RC211*FM100007 - JH2RC211*FM101325
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17532-404-000 Spring, fuel tube cover |
17532-404-000 |
US $11.99 |
||
|
2
|
2
19010-MK3-003
Radiator comp
|
19010-MK3-003 |
— | ||
|
3
|
3
19015-MK3-003
Shroud comp.
|
19015-MK3-003 |
— | ||
|
4
|
4
19020-MK3-003
Fan.comp,cooling
|
19020-MK3-003 |
— | ||
|
5
|
5
19030-MK3-024
Motor assy,fan
|
19030-MK3-024 |
— | ||
|
6
|
6
19032-MK3-000
Grill,radiator
|
19032-MK3-000 |
— | ||
|
7
|
7
19033-MK3-300
Cush.rad.grill
|
19033-MK3-300 |
— | ||
|
8
|
8
19034-MK3-000
Bolt-washer,6x10
|
19034-MK3-000 |
— | ||
|
9
|
9
19035-MK3-000
Guide,r.air
|
19035-MK3-000 |
— | ||
|
10
|
10
19036-MK3-000 Guide,l.air |
19036-MK3-000 |
US $28.57 |
||
|
11
|
11
19041-MK3-300
Moulding r up rad
|
19041-MK3-300 |
— | ||
|
12
|
12
19042-MK3-300
Molding, l.
|
19042-MK3-300 |
— | ||
|
13
|
13
19043-MK3-300
Moulding r low ra
|
19043-MK3-300 |
— | ||
|
14
|
14
19044-MK3-300
Moulding l low ra
|
19044-MK3-300 |
— | ||
|
15
|
15
19045-MB0-702 Cap comp., radiator (toyo) |
19045-MB0-702 |
US $27.10 |
||
| replacement | |||||
|
15
|
15
19045-MZ3-405 Cap, radiator |
19045-MZ3-405 |
from US $38.22 |
||
|
16
|
16
19051-KA4-000 Rubber, radiator mounting |
19051-KA4-000 |
from US $3.40 |
||
|
17
|
17
19060-MK3-003
Cock assy.,rodiat
|
19060-MK3-003 |
— | ||
|
18
|
18
19063-MK3-300
Label
|
19063-MK3-300 |
— | ||
|
19
|
19
19101-MK3-000
Tank,reserve
|
19101-MK3-000 |
— | ||
|
20
|
20
19102-MK3-000
Stay, reserve tank
|
19102-MK3-000 |
— | ||
|
21
|
21
19104-MB0-700 Cap, reserve tank |
19104-MB0-700 |
from US $5.27 |
||
|
22
|
22
19106-MJ8-000 Joint, overflow tube |
19106-MJ8-000 |
from US $4.40 |
||
|
23
|
23
19107-MB1-000
Hose, radiator
|
19107-MB1-000 |
— | ||
|
24
|
24
19108-MK3-000
Tube
|
19108-MK3-000 |
— | ||
|
25
|
25
19109-MK3-000
Tube, overflow
|
19109-MK3-000 |
— | ||
|
26
|
26
19110-MK3-000
Cover,r rad
|
19110-MK3-000 |
— | ||
|
27
|
27
19111-MK3-000
Cover,l rad
|
19111-MK3-000 |
— | ||
|
28
|
28
19112-MJ8-300 Plate,side rr set |
19112-MJ8-300 |
US $6.04 |
||
|
29
|
29
19113-MB0-000
Rubber, radiator mounting
|
19113-MB0-000 |
— | ||
|
30
|
30
19114-MB0-000
Collar, radiator mounting
|
19114-MB0-000 |
— | ||
|
31
|
31
19115-MK3-000
Hose a,radiator
|
19115-MK3-000 |
— | ||
|
32
|
32
19118-MK3-000
Cover,r rad.rr.
|
19118-MK3-000 |
— | ||
|
33
|
33
19119-MK3-000
Cover,l rad.rr.
|
19119-MK3-000 |
— | ||
|
34
|
34
19503-MB1-870 Clamp, water hose |
19503-MB1-870 |
from US $10.66 |
||
|
35
|
35
32111-MK3-000
Sub-cable
|
32111-MK3-000 |
— | ||
|
36
|
36
33741-MB3-671
Reflex refl.fr.
|
33741-MB3-671 |
— | ||
|
37
|
37
37760-MR1-003 Switch assy., thermo |
37760-MR1-003 |
from US $42.79 |
||
|
38
|
38
77201-ME5-000 Clip,rr cowl set |
77201-ME5-000 |
US $2.70 |
||
|
39
|
39
90046-MB0-003
Bolt-washer,5x8
|
90046-MB0-003 |
— | ||
|
40
|
40
90111-MB1-000
Bolt,radiator set
|
90111-MB1-000 |
— | ||
|
41
|
41
90111-187-000 BoltFLANGE, 6MM |
90111-187-000 |
from US $4 |
||
|
42
|
42
90315-MK3-003 Nut, serrate (5mm) |
90315-MK3-003 |
from US $2.15 |
||
|
43
|
43
91307-PH7-660 O-ring13.5X1.4 |
91307-PH7-660 |
from US $2.44 |
||
|
44
|
44
93493-060-100-0 Bolt-washer6X10 |
93493-060-100-0 |
from US $0.59 |
||
|
45
|
45
93891-040-120-7 Screw-washer4X12 |
93891-040-120-7 |
from US $0.44 |
||
|
46
|
46
93893-050-100-8 Screw-washer5X10 |
93893-050-100-8 |
from US $0.52 |
||
|
47
|
47
93901-22180 ScrewTAPPING, 3X8 |
93901-22180 |
from US $0.37 |
||
|
48
|
48
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
49
|
49
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
50
|
50
95002-70000 ClipTUBE (C11) |
95002-70000 |
from US $0.44 |
||
|
51
|
51
95005-750-0120M Bulk hose (7.3x1000) |
95005-750-0120M |
from US $11.69 |
||
|
52
|
52
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
||
|
53
|
53
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
||
|
54
|
54
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
