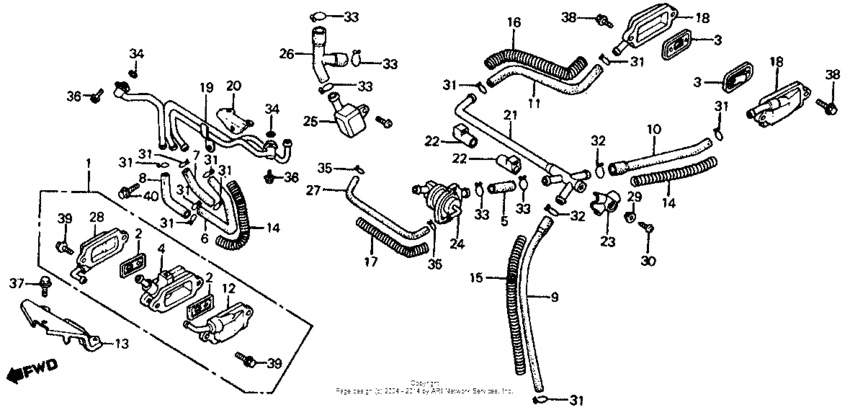

Air inj. control valve Diagram Honda VF700 Magna
- Year
- 1986
- Model code
- VF700C AC
- Sales region
- USA
- Frame
- JH2RC211*GM200001 - JH2RC211*GM201250
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18600-MK3-781
Valve, air suction
|
18600-MK3-781 |
— | ||
|
2
|
2
18601-MJ1-791 Valve, reed |
18601-MJ1-791 |
US $25.40 |
||
|
3
|
3
18601-MJ1-791 Valve, reed |
18601-MJ1-791 |
US $25.40 |
||
|
4
|
4
18610-MK3-781
Body
|
18610-MK3-781 |
— | ||
|
5
|
5
18613-MK3-780
Tube
|
18613-MK3-780 |
— | ||
|
6
|
6
18614-MK3-780
Tube a,fr.air
|
18614-MK3-780 |
— | ||
|
7
|
7
18615-MK3-780
Pipe,r.fr.air int
|
18615-MK3-780 |
— | ||
|
8
|
8
18616-MK3-780
Pipe,l.fr.air int
|
18616-MK3-780 |
— | ||
|
9
|
9
18617-MK3-780
Tube d, fr. air
|
18617-MK3-780 |
— | ||
|
10
|
10
18618-MK3-780
Tube a, rr. air
|
18618-MK3-780 |
— | ||
|
11
|
11
18619-MK3-780
Tube b, rr. air
|
18619-MK3-780 |
— | ||
|
12
|
12
18620-MK3-781
Cover
|
18620-MK3-781 |
— | ||
|
13
|
13
18625-MK3-782
Stay
|
18625-MK3-782 |
— | ||
|
14
|
14
18626-MK3-780
Wire a,guard
|
18626-MK3-780 |
— | ||
|
15
|
15
18627-MK3-781
Wire b, guard
|
18627-MK3-781 |
— | ||
|
16
|
16
18628-MK3-780
Wire c,guard
|
18628-MK3-780 |
— | ||
|
17
|
17
18629-MK3-780
Wire d, guard
|
18629-MK3-780 |
— | ||
|
18
|
18
18630-MK3-781
Cover b
|
18630-MK3-781 |
— | ||
|
19
|
19
18640-MK3-781
Pipe, fr. air
|
18640-MK3-781 |
— | ||
|
20
|
20
18644-MK3-780
Plate set,air pip
|
18644-MK3-780 |
— | ||
|
21
|
21
18645-MK3-780
Joint
|
18645-MK3-780 |
— | ||
|
22
|
22
18646-MK3-780
Rubber,pipe joint
|
18646-MK3-780 |
— | ||
|
23
|
23
18647-MK3-780
Cvr, air pipe joint
|
18647-MK3-780 |
— | ||
|
24
|
24
18650-MK3-783
Valve assy.,air i
Use up to Engine SN 2202573 |
18650-MK3-783 |
— | ||
|
25
|
25
18652-MK3-780 Tank,air intake c |
18652-MK3-780 |
US $51.97 |
||
|
26
|
26
18653-MK3-780
Tube (three-way)
|
18653-MK3-780 |
— | ||
|
27
|
27
18654-MK3-780
Tube, boost
|
18654-MK3-780 |
— | ||
|
28
|
28
18660-MK3-781
Cover c
|
18660-MK3-781 |
— | ||
|
29
|
29
61315-MJ4-000 Colar radiat dact |
61315-MJ4-000 |
US $3.40 |
||
|
30
|
30
90190-MJ8-000 Screw,specia.6x10 |
90190-MJ8-000 |
US $2.03 |
||
|
31
|
31
90641-MK3-780 Clip, tube (b14) |
90641-MK3-780 |
US $1.58 |
||
|
32
|
32
90643-MK3-781 Clip, tube (b16) |
90643-MK3-781 |
from US $1.70 |
||
|
33
|
33
90653-MK3-780 Clip, tube (b20) |
90653-MK3-780 |
from US $1.55 |
||
|
34
|
34
91305-PE2-003 O-ring (9.8x1.9) |
91305-PE2-003 |
from US $2.15 |
||
|
35
|
35
9500202650 Clip, tube (b6.5) |
9500202650 |
from US $0.44 |
||
|
36
|
36
95701-060-160-7 BoltFLANGE, 6X16 |
95701-060-160-7 |
from US $0.58 |
||
|
37
|
37
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
|
38
|
38
96001-0601807 Bolt, flange (6x18) |
96001-0601807 |
from US $0.59 |
||
|
39
|
39
96001-0602007 Bolt, flange (6x20) |
96001-0602007 |
from US $0.59 |
||
|
40
|
40
96001-060-100-7 BoltFLANGE, 6X10 |
96001-060-100-7 |
from US $0.52 |
