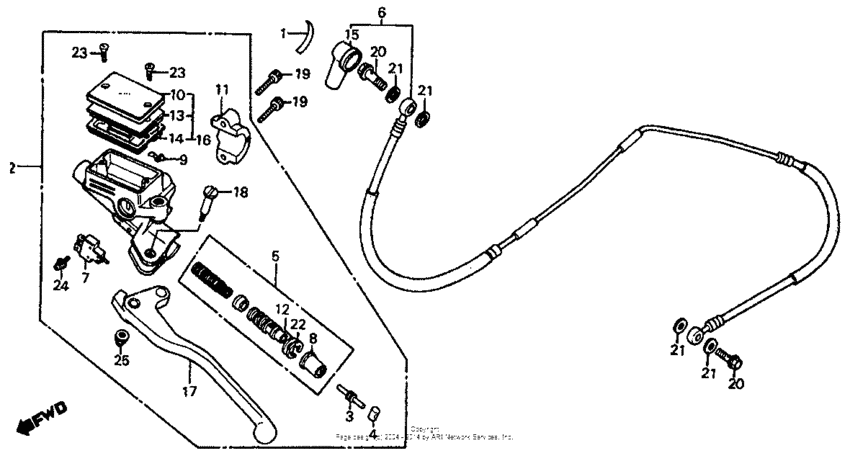

Clutch master cylinder Diagram Honda VF700 Magna
- Year
- 1986
- Model code
- VF700C AC
- Sales region
- USA
- Frame
- JH2RC211*GM200001 - JH2RC211*GM201250
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
22880-ME9-772
M/cyl assy., clutch
|
22880-ME9-772 |
— | ||
|
3
|
3
22884-MB0-006 Rod, push |
22884-MB0-006 |
from US $17.14 |
||
|
4
|
4
22885-MB0-006 Bush |
22885-MB0-006 |
from US $5.42 |
||
|
5
|
5
22886-MB0-305 Piston set |
22886-MB0-305 |
from US $40.54 |
||
|
6
|
6
22900-MK3-000
Pipe assy.,clutch
|
22900-MK3-000 |
— | ||
|
7
|
7
35330-MB0-003 Switch assy., clutch |
35330-MB0-003 |
from US $10.21 |
||
|
8
|
8
45504-410-003 Boot |
45504-410-003 |
from US $4.90 |
||
|
9
|
9
45512-MA6-006 Protector |
45512-MA6-006 |
from US $3.11 |
||
|
10
|
10
45540-MA6-621
Cap set m/c.,fr
|
45540-MA6-621 |
— | ||
|
11
|
11
45517-MB0-006 Holder |
45517-MB0-006 |
US $16.19 |
||
|
12
|
12
45518-MB0-006 Plate, stopper |
45518-MB0-006 |
from US $2.44 |
||
|
13
|
13
45518-MB4-671 Plate, diaphragm |
45518-MB4-671 |
from US $7.99 |
||
|
14
|
14
45520-MA5-672 Diaphragm |
45520-MA5-672 |
from US $12.88 |
||
|
15
|
15
45522-422-000 Boot |
45522-422-000 |
from US $9.77 |
||
|
16
|
16
45540-MA6-621
Cap set m/c.,fr
|
45540-MA6-621 |
— | ||
|
17
|
17
53178-KE8-006 Lever, l. handlebar |
53178-KE8-006 |
from US $17.27 |
||
|
18
|
18
90114-MA5-671 Bolt, r |
90114-MA5-671 |
from US $4.07 |
||
|
19
|
19
90117-MB0-000
Bolt, socket (6x23)
|
90117-MB0-000 |
— | ||
|
20
|
20
90145-300-010 Bolt, oil |
90145-300-010 |
from US $8.58 |
||
|
21
|
21
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
22
|
22
90651-377-003 Circlip (18mm) |
90651-377-003 |
from US $1.92 |
||
|
23
|
23
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
24
|
24
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
|
25
|
25
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
