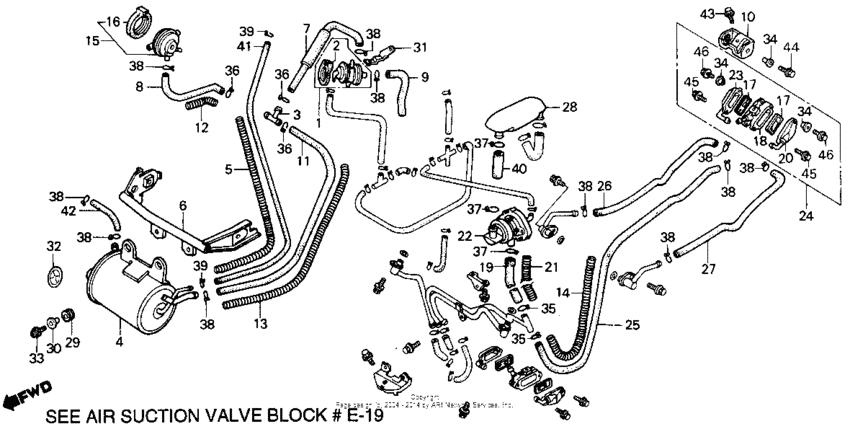

Canister Diagram Honda VF700 Magna
- Year
- 1987
- Model code
- VF700C AC
- Sales region
- USA
- Frame
- 1HFRC211*HA305003 - 1HFRC211*HA311015
- Engine Capacity
- 700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17300-MN0-681
Valve assy.
|
17300-MN0-681 |
— | ||
|
2
|
2
17305-MJ4-771 Rubber, setting |
17305-MJ4-771 |
from US $7.70 |
||
|
3
|
3
17373-399-760 JointBREATHER THREE WAY |
17373-399-760 |
from US $11.87 |
||
|
4
|
4
17410-MN0-681
Canister
|
17410-MN0-681 |
— | ||
|
5
|
5
17414-MN0-680
Spring
|
17414-MN0-680 |
— | ||
|
6
|
6
17415-MN0-680
Bracket, canister
|
17415-MN0-680 |
— | ||
|
7
|
7
17416-MN0-680
Tube (three-way)
|
17416-MN0-680 |
— | ||
|
8
|
8
17418-MN0-680
Tube,purge contro
|
17418-MN0-680 |
— | ||
|
9
|
9
17419-MN0-680
Tube
|
17419-MN0-680 |
— | ||
|
10
|
10
17420-MN0-680
Stay,rr a/c valv
|
17420-MN0-680 |
— | ||
|
11
|
11
17421-MN0-680
Tube (three-way)
|
17421-MN0-680 |
— | ||
|
12
|
12
17422-MN0-680
Spring a
|
17422-MN0-680 |
— | ||
|
13
|
13
17423-MN0-680
Spring b
|
17423-MN0-680 |
— | ||
|
14
|
14
17424-MN0-680
Spring,rr.air tub
|
17424-MN0-680 |
— | ||
|
15
|
15
17440-MN0-680
Valve, purge control
|
17440-MN0-680 |
— | ||
|
16
|
16
17451-ME5-760 Rubber |
17451-ME5-760 |
from US $7.10 |
||
|
17
|
17
18601-MJ1-791 Valve, reed |
18601-MJ1-791 |
US $25.40 |
||
|
18
|
18
18610-MN0-680
Body comp.,air su
|
18610-MN0-680 |
— | ||
|
19
|
19
18613-MN0-680
Tube,air injectio
|
18613-MN0-680 |
— | ||
|
20
|
20
18620-MN0-680
Cover a comp,air
|
18620-MN0-680 |
— | ||
|
21
|
21
18627-MN0-680 Wire,tube cuard |
18627-MN0-680 |
US $12.55 |
||
|
22
|
22
18650-MK3-783
Valve assy.,air i
|
18650-MK3-783 |
— | ||
|
23
|
23
18660-MN0-680
Cover c comp,air
|
18660-MN0-680 |
— | ||
|
24
|
24
18700-MN0-680
Vavle assy,rr air
|
18700-MN0-680 |
— | ||
|
25
|
25
18741-MN0-680
Tube a,rr.air
|
18741-MN0-680 |
— | ||
|
26
|
26
18742-MN0-680
Tube b,rr.air
|
18742-MN0-680 |
— | ||
|
27
|
27
18743-MN0-680
Tube c,rr.air
|
18743-MN0-680 |
— | ||
|
28
|
28
18750-MN0-680
Tank,air intake
|
18750-MN0-680 |
— | ||
|
29
|
29
19051-MB4-880 Rubber, canister mounting |
19051-MB4-880 |
from US $2.39 |
||
|
30
|
30
19052-MB4-880 Collar, canister mounting |
19052-MB4-880 |
from US $3.85 |
||
|
31
|
31
50246-MN0-680
Stay
|
50246-MN0-680 |
— | ||
|
32
|
32
87200-MB1-870 Label, jack warning |
87200-MB1-870 |
US $2.74 |
||
|
33
|
33
90097-MB4-880
Bolt,flg.
|
90097-MB4-880 |
— | ||
|
34
|
34
90522-KF0-000 Collar |
90522-KF0-000 |
from US $3.11 |
||
|
35
|
35
90643-MK3-781 Clip, tube (b16) |
90643-MK3-781 |
from US $1.70 |
||
|
36
|
36
90651-MK3-780 Clip, tube (b12.5) |
90651-MK3-780 |
from US $1.55 |
||
|
37
|
37
90653-MK3-780 Clip, tube (b20) |
90653-MK3-780 |
from US $1.55 |
||
|
38
|
38
90654-MK3-780 Clip, tube (b14) |
90654-MK3-780 |
from US $2.89 |
||
|
39
|
39
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
40
|
40
95005-120-0110M Bulk hose (12x1000) |
95005-120-0110M |
from US $34 |
||
|
41
|
41
95005-450-0120M Bulk hose (4.5x1000) |
95005-450-0120M |
from US $6.96 |
||
|
42
|
42
95005-800-0120M Bulk hose (8x1000) |
95005-800-0120M |
from US $11.25 |
||
|
43
|
43
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
43
|
43
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
43
|
43
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
44
|
44
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
45
|
45
96001-060-200-0 BoltFLANGE, 6X20 |
96001-060-200-0 |
from US $0.59 |
||
|
46
|
46
96001-060-300-0 Bolt, flange (6x30) |
96001-060-300-0 |
from US $0.74 |
||
