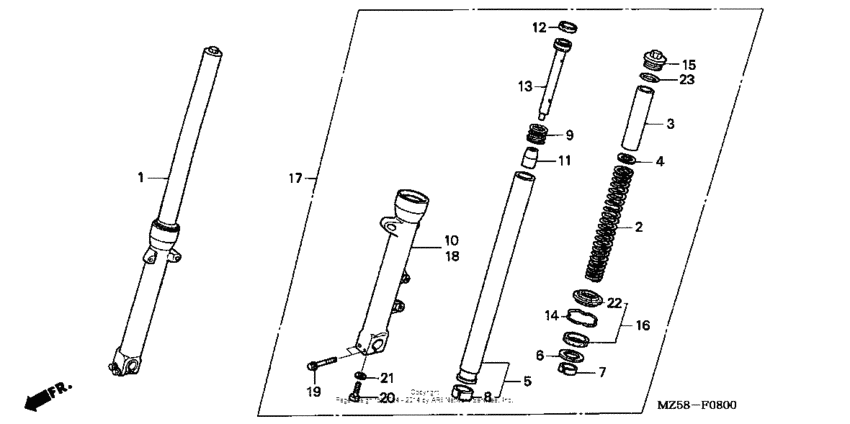

Front fork Diagram Honda VF750 Magna
- Year
- 2003
- Model code
- VF750C A
- Sales region
- USA
- Frame
- JH2RC430*3M900001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-MZ5-912
Fork assy., r. fr.
|
51400-MZ5-912 |
— | ||
|
2
|
2
51401-MZ5-671
Spring, fr. fork
|
51401-MZ5-671 |
— | ||
|
3
|
3
51402-KV3-701 Collar, spring |
51402-KV3-701 |
from US $14.50 |
||
|
4
|
4
51403-KF0-003 Seat, spring |
51403-KF0-003 |
from US $4.74 |
||
|
5
|
5
51410-MZ5-671 Pipe, fr. fork |
51410-MZ5-671 |
from US $259.07 |
||
|
6
|
6
51412-MB4-003 Ring, back-up |
51412-MB4-003 |
from US $5.62 |
||
|
7
|
7
51414-KCR-003 Bush, guide |
51414-KCR-003 |
from US $6.07 |
||
|
8
|
8
51415-KCR-003 Bush, slider |
51415-KCR-003 |
from US $6.89 |
||
|
9
|
9
51416-KF0-003 Spring, fr. rebound |
51416-KF0-003 |
from US $4.37 |
||
|
10
|
10
51420-MZ5-912 Case, r. (lower) |
51420-MZ5-912 |
from US $318.22 |
||
|
11
|
11
51432-MV9-003 Piece, oil lock |
51432-MV9-003 |
from US $18.63 |
||
|
12
|
12
51437-MM5-003 Ring, piston |
51437-MM5-003 |
from US $5.77 |
||
|
13
|
13
51440-MZ5-671
Pipe, seat
|
51440-MZ5-671 |
— | ||
|
14
|
14
51447-KA4-711 Ring |
51447-KA4-711 |
from US $3.33 |
||
|
15
|
15
51454-MM9-671 Bolt, fr. fork |
51454-MM9-671 |
from US $32.50 |
||
|
16
|
16
51490-MN8-305 Seal set, fr. fork |
51490-MN8-305 |
from US $17.24 |
||
|
17
|
17
51500-MZ5-912
Fork Assy., L. Fr.
|
51500-MZ5-912 |
— | ||
|
18
|
18
51520-MZ5-912 Case, l. (lower) |
51520-MZ5-912 |
from US $318.22 |
||
|
19
|
19
90109-MR7-000 Bolt, flange (8x45) |
90109-MR7-000 |
from US $3.40 |
||
|
20
|
20
90116-KV3-701 Bolt, socket (8mm) |
90116-KV3-701 |
from US $1.55 |
||
|
21
|
21
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
22
|
22
91254-MM8-003 Dust seal |
91254-MM8-003 |
from US $9.02 |
||
|
23
|
23
91356-KF0-003 O-ring (21.7x3.5) |
91356-KF0-003 |
from US $3.11 |
