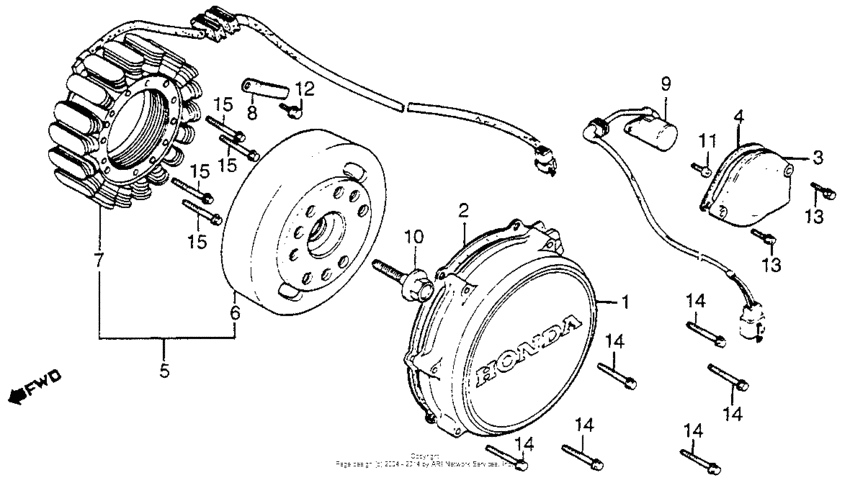

Alternator Diagram Honda VF750 Magna V45
- Year
- 1982
- Model code
- VF750C A
- Sales region
- USA
- Frame
- JH2RC071*CM000033 - JH2RC071*CM027062
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11631-MB0-505
Cover, alternator
|
11631-MB0-505 |
— | ||
|
2
|
2
11636-MB0-306 Gasket |
11636-MB0-306 |
US $16.46 |
||
|
3
|
3
11641-MB0-000
Cover
|
11641-MB0-000 |
— | ||
|
4
|
4
11642-MB0-306
Gasket
|
11642-MB0-306 |
— | ||
|
5
|
5
31100-MB1-014
Generator a c
Use up to Engine SN 4025944 |
31100-MB1-014 |
— | ||
|
6
|
6
31110-MB1-870
Flywheel comp
|
31110-MB1-870 |
— | ||
|
7
|
7
31120-MB1-024
Stator comp
Use up to Engine SN 4025944 |
31120-MB1-024 |
— | ||
|
8
|
8
31130-MB0-000
Clamp,ac.gen cord
|
31130-MB0-000 |
— | ||
|
9
|
9
35759-MB1-000
Sw assy.change
|
35759-MB1-000 |
— | ||
|
10
|
10
90024-MT3-000 Bolt, flange (12x45) |
90024-MT3-000 |
from US $8.01 |
||
|
11
|
11
93500-060-120-A ScrewPAN, 6X12 |
93500-060-120-A |
from US $0.49 |
||
|
12
|
12
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.65 |
||
|
13
|
13
96001-060-200-0 BoltFLANGE, 6X20 |
96001-060-200-0 |
from US $0.59 |
||
|
14
|
14
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.49 |
||
|
15
|
15
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.50 |
