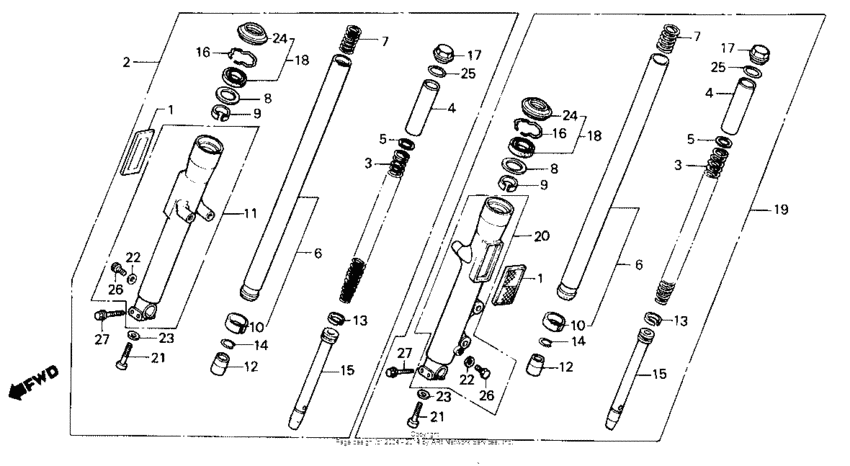

Front fork Diagram Honda VF750 Magna V45
- Year
- 1988
- Model code
- VF750C A
- Sales region
- USA
- Frame
- 1HFRC280*JA100001 -
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33740-KR3-671 Reflector, fr. |
33740-KR3-671 |
from US $21.76 |
||
|
2
|
2
51400-MN0-003
Fork assy.r fr
|
51400-MN0-003 |
— | ||
|
3
|
3
51401-MN0-003
Spring,fr.cushion
|
51401-MN0-003 |
— | ||
|
4
|
4
51402-MN0-003 Collar, spring |
51402-MN0-003 |
from US $14.96 |
||
|
5
|
5
51403-ME5-003 Plate, spring joint |
51403-ME5-003 |
US $3.78 |
||
|
6
|
6
51410-MN0-003
Pipe comp.,rr.for
|
51410-MN0-003 |
— | ||
|
7
|
7
51411-ME5-003
Spring, rebound
|
51411-ME5-003 |
— | ||
|
8
|
8
51412-463-003 Ring, back-up |
51412-463-003 |
from US $6.07 |
||
|
9
|
9
51414-463-003 Bush, fork pipe |
51414-463-003 |
from US $10.95 |
||
|
10
|
10
51415-MN0-003
Bush,slider
|
51415-MN0-003 |
— | ||
|
11
|
11
51421-MN0-003
Case comp.,r.bott
|
51421-MN0-003 |
— | ||
|
12
|
12
51432-MN0-003
Piece,oil lock (s
|
51432-MN0-003 |
— | ||
|
13
|
13
51437-MN0-003
Ring,piston (show
|
51437-MN0-003 |
— | ||
|
14
|
14
51439-340-300
Ring, piston stopper
|
51439-340-300 |
— | ||
|
15
|
15
51440-MN0-003
Pipe comp.,seat (
|
51440-MN0-003 |
— | ||
|
16
|
16
51447-MK7-671
Ring,oil seal sto
|
51447-MK7-671 |
— | ||
|
17
|
17
51454-MN0-003
Bolt,fr.fork (sho
|
51454-MN0-003 |
— | ||
|
18
|
18
51490-MB9-782 Seal set, fr. fork |
51490-MB9-782 |
from US $17.24 |
||
|
19
|
19
51500-MN0-003
Fork assy.l fr.
|
51500-MN0-003 |
— | ||
|
20
|
20
51521-MN0-003
Case comp.,l.bott
|
51521-MN0-003 |
— | ||
|
21
|
21
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
22
|
22
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.37 |
||
|
23
|
23
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
24
|
24
91254-463-003 Dust seal |
91254-463-003 |
from US $14.55 |
||
|
25
|
25
91356-MK3-003
O-ring,31.2x2.4
|
91356-MK3-003 |
— | ||
|
26
|
26
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
27
|
27
96300-0804500 Bolt, flange (8x45) |
96300-0804500 |
from US $0.89 |
