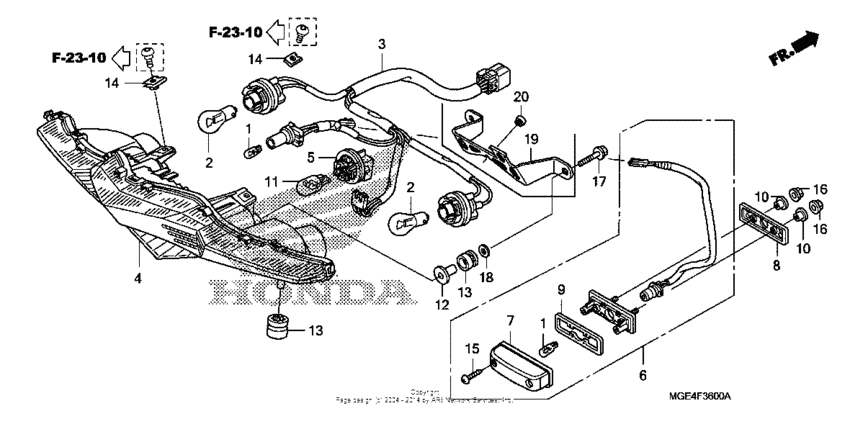

Taillight (1) Diagram Honda VFR1200 VFR
- Year
- 2010
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631*AK000001 - JH2SC631*AK099999
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
2
|
2
33301-S04-004 BulbFR. TURN(12V 21W) (STANLEY)(AMBER) |
33301-S04-004 |
from US $5.92 |
||
|
3
|
3
33708-MGE-641 Socket |
33708-MGE-641 |
US $71.84 |
||
|
4
|
4
33710-MGE-305 Comb unit, rr. (c00) |
33710-MGE-305 |
from US $347.79 |
||
|
5
|
5
33720-GZ9-003 Socket |
33720-GZ9-003 |
from US $7.22 |
||
|
6
|
6
33720-MGE-305 Light assy., license |
33720-MGE-305 |
from US $57.12 |
||
|
7
|
7
33721-GET-671 Cover, license |
33721-GET-671 |
from US $14.01 |
||
|
8
|
8
33728-MFL-000 Rub, license light |
33728-MFL-000 |
from US $3.51 |
||
|
9
|
9
33729-MCZ-003 Gasket, lens |
33729-MCZ-003 |
from US $5.77 |
||
|
10
|
10
33731-MJ0-940 Collar |
33731-MJ0-940 |
from US $2.96 |
||
|
11
|
11
34906-MBB-611 Bulb (12v 21/5w ece) |
34906-MBB-611 |
from US $3.01 |
||
|
12
|
12
61104-422-000 Collar, setting |
61104-422-000 |
from US $5.18 |
||
|
13
|
13
37244-MM4-000 Rubber |
37244-MM4-000 |
from US $3.92 |
||
|
14
|
14
90677-KAN-961 Nut, clip (5mm) |
90677-KAN-961 |
from US $2.16 |
||
|
15
|
15
93901-24480 ScrewTAPPING, 4X16 |
93901-24480 |
from US $0.41 |
||
|
16
|
16
94050-05000 NutFLANGE, 5MM |
94050-05000 |
from US $0.29 |
||
|
17
|
17
96001-0602507 Bolt, flange (6x25) |
96001-0602507 |
from US $0.59 |
||
|
18
|
18
94103-06700 WasherPLAIN, 6MM |
94103-06700 |
from US $0.37 |
