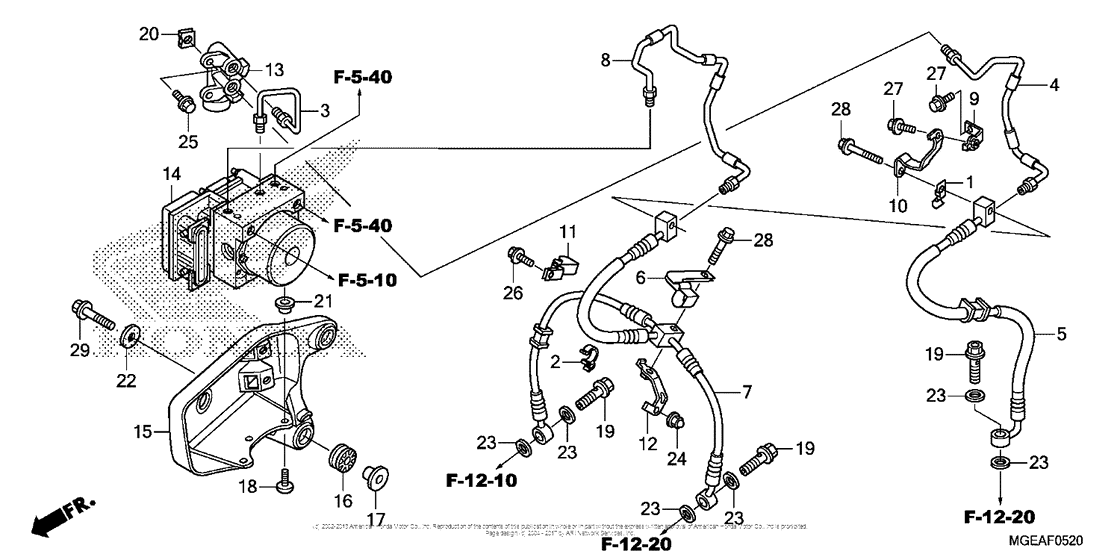

Abs Modulator Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38514-MEJ-J00 Clamp b, sensor wire |
38514-MEJ-J00 |
from US $2.59 |
||
|
2
|
2
38517-MGE-003 Clamp, abs wire (12) |
38517-MGE-003 |
from US $2.59 |
||
|
3
|
3
43320-MGE-000 Sub-pipe a, brake |
43320-MGE-000 |
US $11.49 |
||
|
4
|
4
43321-MGE-000 Sub-pipe b, brake |
43321-MGE-000 |
US $18.21 |
||
|
5
|
5
43322-MGE-003 Sub-hose a, brake |
43322-MGE-003 |
US $67.88 |
||
|
6
|
6
43323-MGE-000 Clamp, fr, |
43323-MGE-000 |
from US $5.56 |
||
|
7
|
7
45124-MGE-003 Hose b, fr, brake |
45124-MGE-003 |
from US $130.94 |
||
|
8
|
8
45126-MGE-000 Pipe b, fr. brake |
45126-MGE-000 |
from US $12.80 |
||
|
9
|
9
45161-MGE-000 Stay, fr, hose |
45161-MGE-000 |
from US $6.51 |
||
|
10
|
10
45162-MGE-000 Stay, fr, brake |
45162-MGE-000 |
from US $5.92 |
||
|
11
|
11
45164-MGE-000 Clamp, r, fr, |
45164-MGE-000 |
from US $5.40 |
||
|
12
|
12
45165-MGE-000 Stay, l, fr, brake |
45165-MGE-000 |
US $6.58 |
||
|
13
|
13
46300-MGE-006 Valve assy,, delay |
46300-MGE-006 |
from US $157.76 |
||
|
14
|
14
57110-MGE-003 Modulator assy |
57110-MGE-003 |
from US $1,151.92 |
||
|
15
|
15
57150-MGE-000 Guard, abs |
57150-MGE-000 |
from US $30.74 |
||
|
16
|
16
57156-MGE-000 Cushion, rubber |
57156-MGE-000 |
from US $2.70 |
||
|
17
|
17
77216-KG1-920 Collar, seat mounting |
77216-KG1-920 |
from US $2.96 |
||
|
18
|
18
90106-MAV-000 Screw, pan (6x12) |
90106-MAV-000 |
from US $1.06 |
||
|
19
|
19
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
20
|
20
90320-747-000 Nut, spring, 6mm |
90320-747-000 |
from US $1.72 |
||
|
21
|
21
90522-170-700 Collar, gearshift lever setting |
90522-170-700 |
from US $1.57 |
||
|
22
|
22
90524-030-000 Washer aHANDLE HOLDER SETTING |
90524-030-000 |
from US $2 |
||
|
23
|
23
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
24
|
24
94021-060-700-S NutCAP, 6MM |
94021-060-700-S |
from US $0.59 |
||
|
25
|
25
95701-060-160-7 BoltFLANGE, 6X16 |
95701-060-160-7 |
from US $0.58 |
||
|
26
|
26
96001-060-100-7 BoltFLANGE, 6X10 |
96001-060-100-7 |
from US $0.52 |
||
|
27
|
27
96001-060-120-7 BoltFLANGE, 6X12 |
96001-060-120-7 |
from US $0.59 |
||
|
28
|
28
96001-0602807 Bolt, flange (6x28) |
96001-0602807 |
from US $0.74 |
||
|
29
|
29
96300-0803200 Bolt, flange (8x32) |
96300-0803200 |
from US $0.81 |
