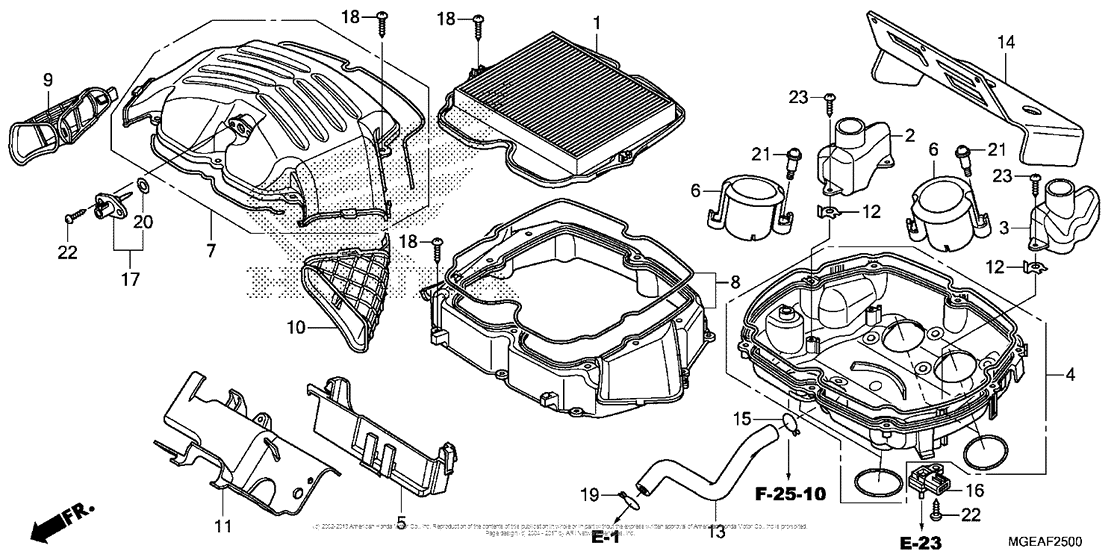

Air Cleaner Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17210-MGH-640 Element, air cleaner |
17210-MGH-640 |
from US $69.88 |
||
|
2
|
2
17215-MGE-000 Resonator, r, |
17215-MGE-000 |
from US $20.15 |
||
|
3
|
3
17216-MGE-000 Resonator, l, |
17216-MGE-000 |
from US $20.15 |
||
|
4
|
4
17220-MGH-640 Housing, air cleaner |
17220-MGH-640 |
from US $112.64 |
||
|
5
|
5
17221-MGE-000 Tray |
17221-MGE-000 |
from US $9.77 |
||
|
6
|
6
17225-MGE-000 Funnel, air |
17225-MGE-000 |
from US $13.17 |
||
|
8
|
8
17240-MGE-000 Housing |
17240-MGE-000 |
from US $78.86 |
||
|
9
|
9
17255-MGE-000 Duct, r, air |
17255-MGE-000 |
from US $30.19 |
||
|
10
|
10
17265-MGE-000 Duct, l, air |
17265-MGE-000 |
from US $28.70 |
||
|
11
|
11
17290-MGE-000 Guard, fr |
17290-MGE-000 |
from US $13.94 |
||
|
12
|
12
17390-MGE-000 Washer, tongued |
17390-MGE-000 |
US $4.49 |
||
|
13
|
13
17551-MGE-000 Tube, breather |
17551-MGE-000 |
from US $4.88 |
||
|
14
|
14
17560-MGE-D40 Rubber, tank (lower) |
17560-MGE-D40 |
from US $44.51 |
||
|
15
|
15
17724-102-700 ClipSUB TANK HOSE |
17724-102-700 |
from US $2.44 |
||
|
16
|
16
37830-MEL-003 Sensor assy., map |
37830-MEL-003 |
from US $111.52 |
||
|
17
|
17
37880-P05-A00 Sensor assyAIR TEMP |
37880-P05-A00 |
from US $27.74 |
||
|
18
|
18
90105-MFJ-D00 Screw, tap (4x18) |
90105-MFJ-D00 |
from US $1.42 |
||
|
19
|
19
90646-657-000 ClipAIR HOSE, 16MM |
90646-657-000 |
from US $2.89 |
||
|
20
|
20
91303-PK2-005 O-ring (7.5X1.5)7.5X1.5 |
91303-PK2-005 |
from US $1.63 |
||
|
21
|
21
91508-MGP-D00 New Genuine Part |
91508-MGP-D00 |
from US $2.89 |
||
|
21
|
21
91508-MM5-000 Screw, pan (5mm) |
91508-MM5-000 |
from US $1.89 |
||
|
22
|
22
9390125420 Screw, tap (5x20) |
9390125420 |
from US $0.37 |
||
|
23
|
23
93903-24320 ScrewTAPPING, 4X12 |
93903-24320 |
from US $0.13 |
