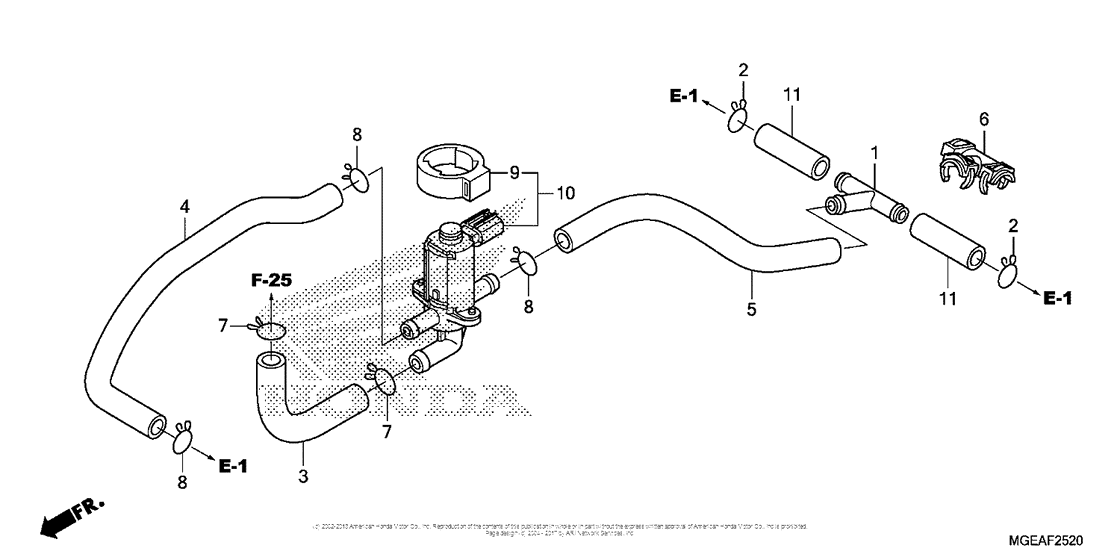

Air Injection Control Valve Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15772-HA7-670 Joint |
15772-HA7-670 |
from US $7.99 |
||
|
2
|
2
17316-MN1-670 Clip A |
17316-MN1-670 |
from US $2.15 |
||
|
3
|
3
17460-MGE-000 Tube, air suction |
17460-MGE-000 |
US $6.82 |
||
|
4
|
4
17465-MGE-000 Tube, fr, |
17465-MGE-000 |
US $10.61 |
||
|
5
|
5
17466-MGE-000 Tube, rr, |
17466-MGE-000 |
US $9.47 |
||
|
6
|
6
17467-MGE-000 Guard |
17467-MGE-000 |
from US $5.25 |
||
|
7
|
7
17554-MB0-000 Clip, breather tube |
17554-MB0-000 |
from US $2.66 |
||
|
8
|
8
17724-102-700 ClipSUB TANK HOSE |
17724-102-700 |
from US $2.44 |
||
|
9
|
9
36172-MCA-A61 Suspension |
36172-MCA-A61 |
US $4.69 |
||
|
10
|
10
36450-MGE-641 Valve assy |
36450-MGE-641 |
US $63.39 |
||
|
11
|
11
95005-120-0120M
Bulk hose (12x1000)
|
95005-120-0120M |
— |
