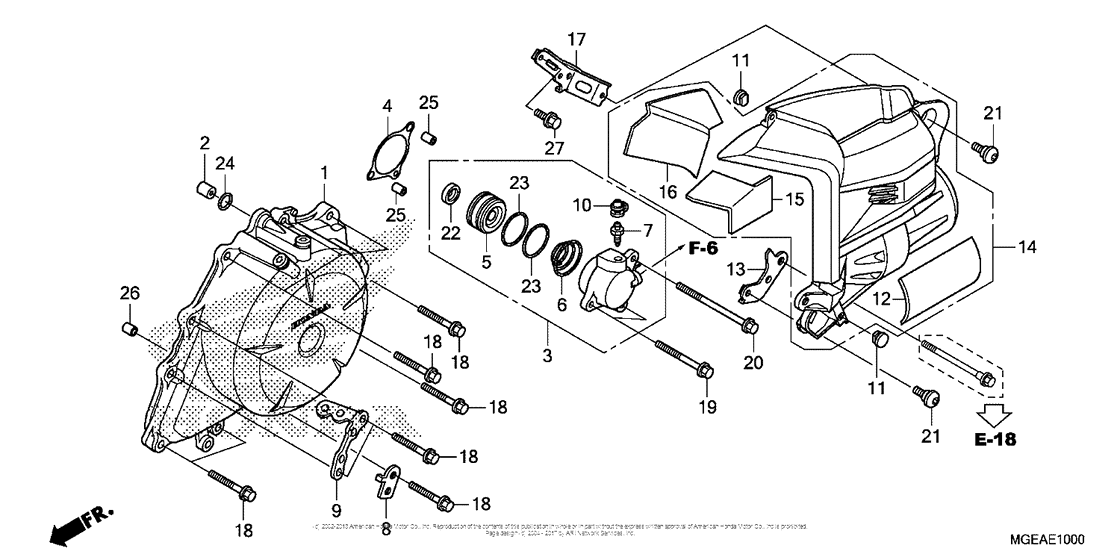

Alternator Cover Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11320-MGE-010 Cover, alternator |
11320-MGE-010 |
from US $186.32 |
||
|
2
|
2
15516-MGE-000 Orifice b |
15516-MGE-000 |
from US $5.10 |
||
|
3
|
3
22860-MGE-013 Cylinder, slave |
22860-MGE-013 |
from US $107.44 |
||
|
4
|
4
22862-MGE-010 New Genuine Part |
22862-MGE-010 |
US $7.17 |
||
| replacement | |||||
|
4
|
4
22862-MGE-020 New Genuine Part |
22862-MGE-020 |
from US $5.18 |
||
|
5
|
5
22863-MGE-003 Piston |
22863-MGE-003 |
from US $21.08 |
||
|
6
|
6
22864-MGE-003 Spring |
22864-MGE-003 |
from US $6.81 |
||
|
7
|
7
22866-MF2-711 Screw, bleeder |
22866-MF2-711 |
from US $4.07 |
||
|
8
|
8
32157-MFJ-D00 Stay, harness clip |
32157-MFJ-D00 |
from US $3.48 |
||
|
9
|
9
32158-MGE-000 Stay, harness clip |
32158-MGE-000 |
from US $2.96 |
||
|
10
|
10
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
18
|
18
90016-GHB-680 Bolt, flange (6x28) |
90016-GHB-680 |
from US $2.74 |
||
|
19
|
19
90016-GHB-720 Bolt, flange (6x45) |
90016-GHB-720 |
from US $2.24 |
||
|
20
|
20
90016-GHB-780 Bolt, flange (6x75) |
90016-GHB-780 |
from US $2.39 |
||
|
22
|
22
91209-MB0-003 Oil seal (8x18x5) |
91209-MB0-003 |
from US $2.23 |
||
|
23
|
23
91309-MGE-003 O-ring (29x2,4) |
91309-MGE-003 |
from US $2.52 |
||
|
24
|
24
91316-MJ8-003 O-ring (8.4x2.4) |
91316-MJ8-003 |
from US $2.52 |
||
|
25
|
25
94301-08100 Dowel pin8X10 |
94301-08100 |
from US $0.89 |
||
|
26
|
26
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
