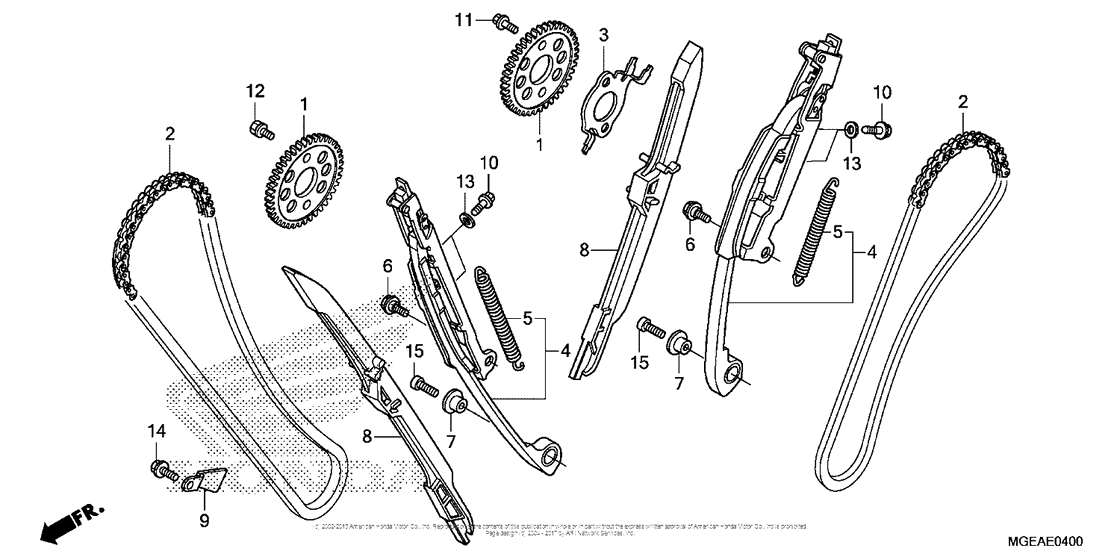

Cam Chain + Tensioner Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14321-MGE-000 Sprocket, cam (40t) |
14321-MGE-000 |
US $99.69 |
||
|
2
|
2
14401-MGE-003 Chain, cam (120l) |
14401-MGE-003 |
from US $74.80 |
||
|
3
|
3
14405-MGE-000 Rotor, cam pulse |
14405-MGE-000 |
from US $18.18 |
||
|
4
|
4
14510-MGE-030 Tensioner, cam chain |
14510-MGE-030 |
from US $146.88 |
||
|
5
|
5
14516-MGE-310 Spring |
14516-MGE-310 |
from US $5.62 |
||
|
6
|
6
14519-MGE-000 Bolt, special (6x17) |
14519-MGE-000 |
from US $5.33 |
||
|
7
|
7
14521-MGE-010 Collar, tensioner |
14521-MGE-010 |
from US $8.16 |
||
|
8
|
8
14620-MGE-000 Guide, cam chain |
14620-MGE-000 |
from US $33.05 |
||
|
9
|
9
14623-MBA-000 Plate |
14623-MBA-000 |
from US $4 |
||
|
10
|
10
90001-MZ8-U40 Bolt, flange (6x18) |
90001-MZ8-U40 |
from US $2 |
||
|
11
|
11
90027-MY9-690 New Genuine Part |
90027-MY9-690 |
from US $2.29 |
||
|
12
|
12
90082-HA0-000 Bolt (7x10.5) |
90082-HA0-000 |
from US $2.59 |
||
|
13
|
13
90488-425-000 Washer (6mm) |
90488-425-000 |
from US $2.96 |
||
|
14
|
14
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
15
|
15
96600-0602000 Bolt, socket (6x20) |
96600-0602000 |
from US $0.59 |
