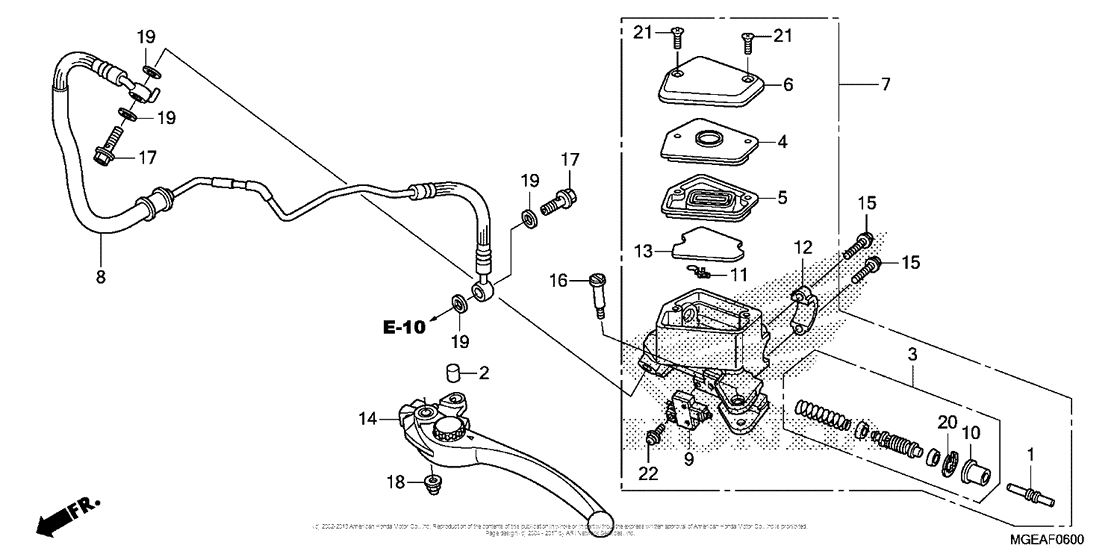

Clutch Master Cylinder Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22884-MAT-E01 Rod, push |
22884-MAT-E01 |
from US $17.14 |
||
|
2
|
2
22885-MB0-006 Bush |
22885-MB0-006 |
from US $5.27 |
||
|
3
|
3
22886-MAT-E01 Piston set |
22886-MAT-E01 |
from US $56.44 |
||
|
4
|
4
22887-MGE-006 Plate, diaphragm |
22887-MGE-006 |
from US $8.32 |
||
|
5
|
5
22888-MGE-006 Diaphragm |
22888-MGE-006 |
from US $11.25 |
||
|
6
|
6
22889-MGE-006 Cap, master cylinder |
22889-MGE-006 |
from US $20.40 |
||
|
7
|
7
22890-MGE-305 M/cyl sub-assy (c00) |
22890-MGE-305 |
from US $290.06 |
||
|
8
|
8
22900-MGE-003 Pipe, clutch |
22900-MGE-003 |
from US $145.04 |
||
|
9
|
9
35330-MB0-003 Switch assy., clutch |
35330-MB0-003 |
from US $10.21 |
||
|
10
|
10
45504-MAT-E01 Boot |
45504-MAT-E01 |
from US $8.29 |
||
|
11
|
11
45512-MA6-006 Protector |
45512-MA6-006 |
from US $3.11 |
||
|
12
|
12
45517-166-006 Holder |
45517-166-006 |
from US $11.81 |
||
|
13
|
13
45523-MGE-006 Float, fr, |
45523-MGE-006 |
from US $5.87 |
||
|
14
|
14
53180-MEJ-305 Lever, l. handle |
53180-MEJ-305 |
US $44.12 |
||
| replacement | |||||
|
14
|
14
53180-MEJ-016 LEVER ASSY L HAND |
53180-MEJ-016 |
from US $41.33 |
||
|
15
|
15
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
|
16
|
16
90114-MA5-671 Bolt, r |
90114-MA5-671 |
from US $4.07 |
||
|
17
|
17
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
18
|
18
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.03 |
||
|
19
|
19
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
20
|
20
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
21
|
21
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
22
|
22
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
