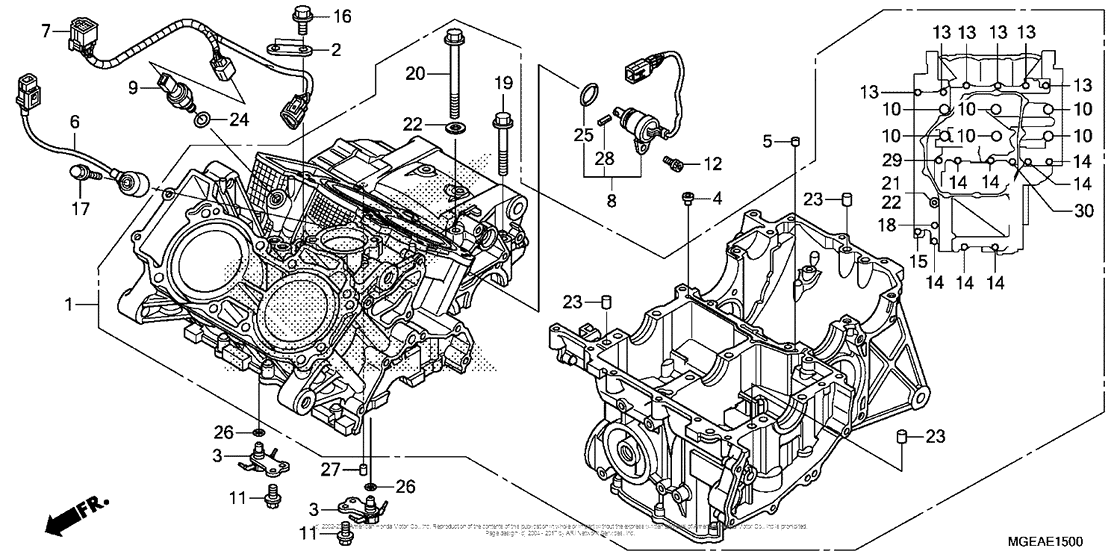

Crankcase (1) Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-MGE-D40 Crankcase set |
11000-MGE-D40 |
US $4,396.22 |
||
|
2
|
2
11180-MGE-000 Bridge, knock sensor |
11180-MGE-000 |
from US $3.78 |
||
|
3
|
3
15310-MGE-000 Jet, oil |
15310-MGE-000 |
from US $32.38 |
||
|
4
|
4
15515-MGE-000 Orifice a |
15515-MGE-000 |
from US $5.10 |
||
|
5
|
5
15517-MGE-000 Orifice c |
15517-MGE-000 |
from US $5.10 |
||
|
6
|
6
30530-MGE-641 Sensor, knock |
30530-MGE-641 |
from US $51.40 |
||
|
7
|
7
32111-MGE-640 Sub-harness, engine |
32111-MGE-640 |
US $56.25 |
||
|
8
|
8
35759-MGH-641 Switch assy., change |
35759-MGH-641 |
US $101.39 |
||
| replacement | |||||
|
8
|
8
35759-MGH-642 Sw Assy,Change |
35759-MGH-642 |
from US $91.12 |
||
|
9
|
9
37260-MGE-641 Sensor, oil pressure |
37260-MGE-641 |
from US $126.16 |
||
|
10
|
10
90001-MGE-003 Bolt, flange (9x109) |
90001-MGE-003 |
from US $8.29 |
||
|
11
|
11
90011-MFJ-D00 Bolt, knock (6mm) |
90011-MFJ-D00 |
from US $2.74 |
||
|
12
|
12
90011-MGP-000 Bolt (6mm) |
90011-MGP-000 |
from US $6.07 |
||
|
13
|
13
90018-MGE-000 Bolt, flange (7x40) |
90018-MGE-000 |
from US $2.55 |
||
|
14
|
14
90033-MGE-000 Bolt, flange (6x28) |
90033-MGE-000 |
from US $2.09 |
||
|
15
|
15
90034-MGE-000 Bolt, flange (6x35) |
90034-MGE-000 |
from US $2.09 |
||
|
16
|
16
90061-MGE-000 Bolt, flange (8x14) |
90061-MGE-000 |
from US $2.24 |
||
|
17
|
17
90062-MGE-000 Bolt, flange (8x30) |
90062-MGE-000 |
from US $2.55 |
||
|
18
|
18
90063-MGE-000 Bolt, flange (8x40) |
90063-MGE-000 |
from US $2.55 |
||
|
19
|
19
90064-MGE-000 Bolt, flange (8x70) |
90064-MGE-000 |
from US $3.32 |
||
|
20
|
20
90065-MGE-010 Bolt, flange (8x120) |
90065-MGE-010 |
from US $4.93 |
||
|
21
|
21
90066-MGE-010 Bolt, flange (8x125) |
90066-MGE-010 |
from US $4.93 |
||
|
22
|
22
90442-MR1-770 Washer (8mm) |
90442-MR1-770 |
from US $2.22 |
||
|
23
|
23
90701-MV9-670 Pin, dowel (10x16) |
90701-MV9-670 |
from US $2.59 |
||
|
24
|
24
91301-MEH-003 O-ring (13x1.5) |
91301-MEH-003 |
from US $2.22 |
||
|
25
|
25
91305-KC1-850 O-ring (16.5x2.5) |
91305-KC1-850 |
from US $2.66 |
||
|
26
|
26
91305-MG7-003 O-ring (5x1.7) |
91305-MG7-003 |
from US $2.52 |
||
|
27
|
27
94302-08100 Pin bDOWEL, 8X10 |
94302-08100 |
from US $0.98 |
||
|
28
|
28
94305-20102 PinSPRING, 2X10 |
94305-20102 |
from US $0.59 |
||
|
29
|
29
95701-0806500 Bolt, flange, 8x65 |
95701-0806500 |
from US $0.89 |
||
|
30
|
30
95701-0811000 Bolt, flange, 8x110 |
95701-0811000 |
from US $1.48 |
||
