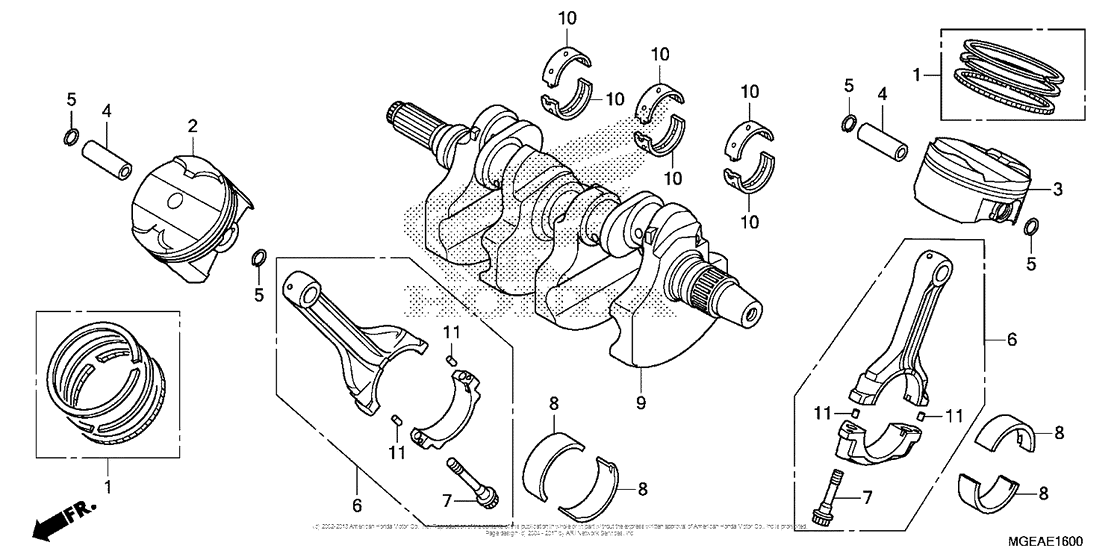

Crankshaft + Piston Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13011-MGE-305 Ring set (std) |
13011-MGE-305 |
from US $60.38 |
||
|
1
|
1
13021-MGE-305 Ring set (0,25) |
13021-MGE-305 |
US $67.44 |
||
|
1
|
1
13031-MGE-305 Ring set (0,50) |
13031-MGE-305 |
US $64.53 |
||
|
2
|
2
13101-MGE-030 Piston, fr. (std) |
13101-MGE-030 |
from US $114.92 |
||
|
2
|
2
13102-MGE-335 Piston, fr. (0.25) |
13102-MGE-335 |
US $145.49 |
||
|
2
|
2
13103-MGE-335 Piston, fr. (0.50) |
13103-MGE-335 |
US $145.49 |
||
|
3
|
3
13105-MGE-030 Piston, rr. (std) |
13105-MGE-030 |
from US $98.60 |
||
|
3
|
3
13106-MGE-335 Piston, rr. (0.25) |
13106-MGE-335 |
US $145.49 |
||
|
3
|
3
13107-MGE-335 Piston, rr. (0.50) |
13107-MGE-335 |
US $145.49 |
||
|
4
|
4
13111-MGE-010 Pin, piston |
13111-MGE-010 |
from US $49.23 |
||
|
5
|
5
13112-MGE-000 Clip (18mm) |
13112-MGE-000 |
from US $2 |
||
|
6
|
6
13210-MGE-000 Rod, connecting |
13210-MGE-000 |
from US $167.28 |
||
|
7
|
7
13213-MGE-003 Bolt, connecting rod |
13213-MGE-003 |
from US $7.84 |
||
|
8
|
8
13224-MGE-013 Bearing a, conn rod |
13224-MGE-013 |
from US $10.64 |
||
|
8
|
8
13225-MGE-013 Bearing b, conn rod |
13225-MGE-013 |
from US $10.64 |
||
|
8
|
8
13226-MGE-013 Bearing c, conn rod |
13226-MGE-013 |
from US $10.80 |
||
|
8
|
8
13227-MGE-013 Bearing d, conn rod |
13227-MGE-013 |
from US $10.80 |
||
|
8
|
8
13228-MGE-013 Bearing e, conn rod |
13228-MGE-013 |
from US $10.64 |
||
|
9
|
9
13300-MGE-020 Crankshaft |
13300-MGE-020 |
from US $1,238.96 |
||
|
10
|
10
13313-MGE-013 BEARING A |
13313-MGE-013 |
from US $10.79 |
||
|
10
|
10
13314-MGE-013 BEARING B, CRANKSHAFT |
13314-MGE-013 |
from US $10.95 |
||
|
10
|
10
13315-MGE-013 BEARING C, CRANKSHAFT |
13315-MGE-013 |
from US $10.95 |
||
|
10
|
10
13316-MGE-013 BEARING D, CRANKSHAFT |
13316-MGE-013 |
from US $10.95 |
||
|
10
|
10
13317-MGE-013 BEARING E, CRANKSHAFT |
13317-MGE-013 |
from US $10.95 |
||
|
11
|
11
94303-04065 Pin cDOWEL, 4X6.5 |
94303-04065 |
from US $0.81 |
