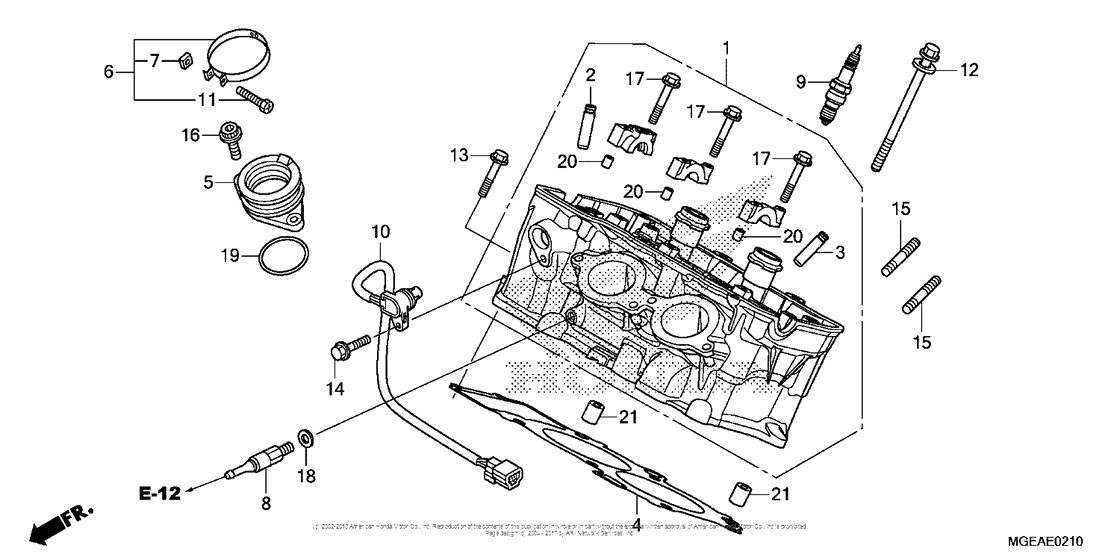

Cylinder Head (Rr.) Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12020-MGE-020 Cylinder head, rr, |
12020-MGE-020 |
from US $1,458.70 |
||
|
2
|
2
12204-MFL-305 Guide, valve (os) |
12204-MFL-305 |
from US $14.21 |
||
|
3
|
3
12205-MGE-305 Guide, ex vlv (os) |
12205-MGE-305 |
from US $13.24 |
||
|
4
|
4
12261-MGE-013 Gasket, rr, cyl hd |
12261-MGE-013 |
from US $51.95 |
||
|
5
|
5
16210-MGE-000 Insulator |
16210-MGE-000 |
from US $40.12 |
||
|
6
|
6
16218-MEL-000 Band, insulator |
16218-MEL-000 |
from US $6.51 |
||
|
7
|
7
16222-MV4-300 Nut, square (5mm) |
16222-MV4-300 |
from US $1.48 |
||
|
8
|
8
19410-MFG-D00 Joint, bleeding |
19410-MFG-D00 |
from US $25.78 |
||
|
9
|
9
31912-MFL-003 Spark plug (NGK IMR9E-9HES) |
31912-MFL-003 |
from US $21.93 |
||
|
9
|
9
31922-MEL-003 Spark-plug vuh27e |
31922-MEL-003 |
from US $41.48 |
||
|
10
|
10
36140-MGE-003 Sensor assy,, cam |
36140-MGE-003 |
from US $66.60 |
||
|
11
|
11
90005-MEL-000 Bolt (5x22) |
90005-MEL-000 |
from US $1.48 |
||
|
12
|
12
90007-MAT-000 Bolt-washer (10x105) |
90007-MAT-000 |
from US $8.14 |
||
|
12
|
12
90007-MBB-003 Bolt-washer (10x105) |
90007-MBB-003 |
from US $8.14 |
||
| replacement | |||||
|
12
|
12
90007-MAT-000 Bolt-washer (10x105) |
90007-MAT-000 |
from US $8.14 |
||
|
13
|
13
90016-GHB-700 Bolt, flange (6x35) |
90016-GHB-700 |
from US $2.09 |
||
|
14
|
14
90032-MGE-000 Bolt, flange (6x22) |
90032-MGE-000 |
from US $2.09 |
||
|
15
|
15
90035-MGE-000 Bolt, stud (6x25) |
90035-MGE-000 |
from US $4.29 |
||
|
16
|
16
90071-MEL-000 Bolt (6x16) |
90071-MEL-000 |
from US $2.22 |
||
|
17
|
17
90102-KE5-000 Bolt, flange, 6x40 |
90102-KE5-000 |
from US $2.59 |
||
|
18
|
18
90544-439-930 Gasket |
90544-439-930 |
from US $2.15 |
||
|
19
|
19
91301-MCH-003 O-ring (48.5x2.5) |
91301-MCH-003 |
from US $6.66 |
||
|
20
|
20
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
21
|
21
94301-12160 Pin aDOWEL, 12X16 |
94301-12160 |
from US $1.04 |
||
