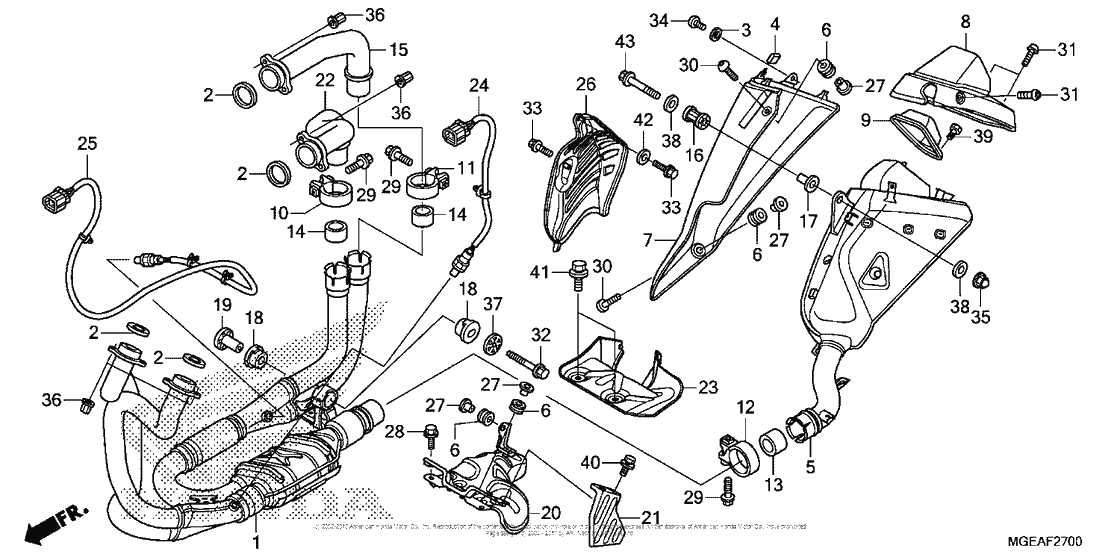

Exhaust Muffler Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18150-MGE-D40 Pipe, ex. |
18150-MGE-D40 |
from US $2,121.86 |
||
|
2
|
2
18291-MM5-860 Gasket, ex. pipe |
18291-MM5-860 |
from US $3.13 |
||
|
3
|
3
18292-KBR-000 Gasket, protector |
18292-KBR-000 |
from US $3.33 |
||
|
4
|
4
18293-MN0-000 Rubber, protector |
18293-MN0-000 |
from US $3.11 |
||
|
5
|
5
18310-MGE-315 New Genuine Part |
18310-MGE-315 |
from US $1,664.27 |
||
|
6
|
6
18345-MBT-610 Rubber |
18345-MBT-610 |
from US $2.52 |
||
|
7
|
7
18350-MGE-003 Guard, muffler |
18350-MGE-003 |
from US $233.92 |
||
|
8
|
8
18360-MGE-003 Guard, rr, muffler |
18360-MGE-003 |
from US $179.52 |
||
|
9
|
9
18370-MGE-003 Cover, valve |
18370-MGE-003 |
from US $24.62 |
||
|
10
|
10
18373-413-000 Band, r. fr. muffler |
18373-413-000 |
from US $19 |
||
|
11
|
11
18374-413-000 Band,l.fr.muffler |
18374-413-000 |
from US $19.18 |
||
|
12
|
12
18375-MCF-D30 Band, r. rr. muffler |
18375-MCF-D30 |
from US $29.24 |
||
|
13
|
13
18392-MCF-003 Packing,muffler |
18392-MCF-003 |
from US $13.32 |
||
|
14
|
14
18392-MK4-000 Gasket, muffler |
18392-MK4-000 |
from US $8.68 |
||
|
15
|
15
18420-MGE-003 Pipe, r, rr, ex, |
18420-MGE-003 |
from US $171.79 |
||
|
16
|
16
18421-KV3-950 Rubber,silencer m |
18421-KV3-950 |
from US $4 |
||
|
17
|
17
18422-MA6-000 Collar |
18422-MA6-000 |
from US $4.28 |
||
|
18
|
18
18422-MGE-000 Rubber |
18422-MGE-000 |
from US $17.46 |
||
|
19
|
19
18423-MGE-000 Collar |
18423-MGE-000 |
from US $6.17 |
||
|
20
|
20
18425-MGE-010 Protector, ex. pipe |
18425-MGE-010 |
from US $99.28 |
||
|
21
|
21
18426-MGE-000 Sub-protector |
18426-MGE-000 |
US $12.55 |
||
|
22
|
22
18470-MGE-003 Pipe, l, rr, ex, |
18470-MGE-003 |
from US $171.79 |
||
|
23
|
23
18475-MGE-000 Protector, ex, pipe |
18475-MGE-000 |
from US $42.82 |
||
|
24
|
24
36531-MGE-641 Sensor (#1-4) |
36531-MGE-641 |
from US $222.46 |
||
|
25
|
25
36532-MGH-641 Sensor (#2-3) |
36532-MGH-641 |
from US $222.46 |
||
|
26
|
26
50606-MGE-000 Protector, heat |
50606-MGE-000 |
from US $73.93 |
||
|
27
|
27
50609-MCW-D00 Collar |
50609-MCW-D00 |
from US $2.59 |
||
|
28
|
28
90004-GHB-630 Bolt, flange (6x16) |
90004-GHB-630 |
from US $1.19 |
||
|
29
|
29
90103-KCM-620 Bolt, flange (8x35) |
90103-KCM-620 |
from US $1.06 |
||
|
30
|
30
90106-KRG-000 Screw,pan,6x12 |
90106-KRG-000 |
from US $1.55 |
||
|
31
|
31
90119-MGE-000 Bolt, special (5x10) |
90119-MGE-000 |
from US $4.07 |
||
|
32
|
32
90127-MGE-000 Bolt, flange (8x65) |
90127-MGE-000 |
from US $3.63 |
||
|
33
|
33
90128-MGE-000 Bolt, flange (6x16) |
90128-MGE-000 |
from US $1.60 |
||
| replacement | |||||
|
33
|
33
90101-MJN-A00 BOLT,FLANGE SH 6X |
90101-MJN-A00 |
from US $2.09 |
||
|
34
|
34
90170-MEB-670 Bolt, special (6mm) |
90170-MEB-670 |
from US $2 |
||
|
35
|
35
90443-KF9-900 Nut, cap (8mm) |
90443-KF9-900 |
from US $5.33 |
||
|
36
|
36
90304-HB3-771 Nut, special (6mm) |
90304-HB3-771 |
from US $4.29 |
||
|
37
|
37
90505-MGE-000 Washer (8,5x38) |
90505-MGE-000 |
US $3.21 |
||
|
38
|
38
90509-642-000 WasherPLAIN, 8.5X22X2.3 |
90509-642-000 |
from US $2.81 |
||
|
39
|
39
92101-05008-4J Bolt, hex. (5x8) |
92101-05008-4J |
from US $0.81 |
||
|
40
|
40
93401-0501000 Bolt-washer, 5x10 |
93401-0501000 |
from US $0.58 |
||
|
41
|
41
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
42
|
42
94103-06000 WasherPLAIN, 6MM |
94103-06000 |
from US $0.37 |
||
|
43
|
43
96300-080-450-4 Bolt, flange (8x45) |
96300-080-450-4 |
from US $0.89 |
||
