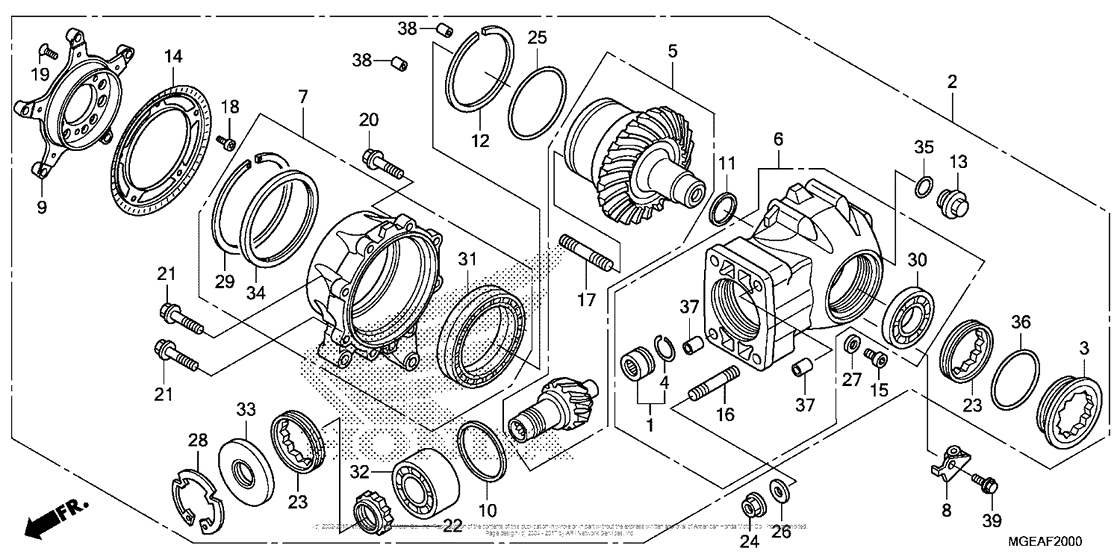

Final Driven Gear Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06910-MCA-000 Bearing set, needle |
06910-MCA-000 |
from US $18.50 |
||
|
2
|
2
41300-MGE-040 Gear assy,, final |
41300-MGE-040 |
from US $2,581.28 |
||
|
3
|
3
41302-MGE-020 Bolt, gear case |
41302-MGE-020 |
from US $70.72 |
||
|
4
|
4
41305-MB4-770 Ring, stopper |
41305-MB4-770 |
from US $3.70 |
||
|
5
|
5
41310-MGE-000 Gear set, final |
41310-MGE-000 |
from US $1,150.34 |
||
|
6
|
6
41311-MGE-010 Case sub-assy, |
41311-MGE-010 |
from US $1,060.22 |
||
|
7
|
7
41320-MGE-010 Cvr sub, final gear |
41320-MGE-010 |
from US $530.82 |
||
|
8
|
8
41352-MGE-010 Stay |
41352-MGE-010 |
US $6.29 |
||
|
9
|
9
41441-MGE-000 Flange |
41441-MGE-000 |
from US $304.14 |
||
|
10
|
10
41450-MGE-000 Shim a (1,32) |
41450-MGE-000 |
US $12.50 |
||
|
10
|
10
41451-MGE-000 Shim b (1,38) |
41451-MGE-000 |
US $12.50 |
||
|
10
|
10
41452-MGE-000 Shim c (1,44) |
41452-MGE-000 |
US $12.50 |
||
|
10
|
10
41453-MGE-000 Shim d (1,50) |
41453-MGE-000 |
US $12.50 |
||
|
10
|
10
41454-MGE-000 Shim e (1,56) |
41454-MGE-000 |
US $12.50 |
||
|
10
|
10
41455-MGE-000 Shim f (1,62) |
41455-MGE-000 |
US $12.50 |
||
|
10
|
10
41456-MGE-000 Shim g (1,68) |
41456-MGE-000 |
US $12.50 |
||
|
11
|
11
41505-MGE-000 Shim q,ring gear |
41505-MGE-000 |
US $12.97 |
||
|
11
|
11
41506-MGE-000 Shim r,ring gear |
41506-MGE-000 |
US $12.97 |
||
|
11
|
11
41507-MGE-000 Shim s,ring gear |
41507-MGE-000 |
US $12.97 |
||
|
11
|
11
41508-MGE-000 Shim t,ring gear |
41508-MGE-000 |
US $12.97 |
||
|
11
|
11
41509-MGE-000 Shim u,ring gear |
41509-MGE-000 |
US $12.97 |
||
|
11
|
11
41510-MGE-000 Shim a (1,73) |
41510-MGE-000 |
US $13.16 |
||
|
11
|
11
41511-MGE-000 Shim b (1,76) |
41511-MGE-000 |
US $13.16 |
||
|
11
|
11
41512-MGE-000 Shim c (1,79) |
41512-MGE-000 |
US $13.16 |
||
|
11
|
11
41513-MGE-000 Shim d (1,82) |
41513-MGE-000 |
US $13.16 |
||
|
11
|
11
41514-MGE-000 Shim e (1,85) |
41514-MGE-000 |
US $13.16 |
||
|
11
|
11
41515-MGE-000 Shim f (1,88) |
41515-MGE-000 |
US $13.16 |
||
|
11
|
11
41516-MGE-000 Shim g (1,91) |
41516-MGE-000 |
US $13.16 |
||
|
11
|
11
41517-MGE-000 Shim h (1,94) |
41517-MGE-000 |
US $13.16 |
||
|
11
|
11
41518-MGE-000 Shim i (1,97) |
41518-MGE-000 |
US $13.16 |
||
|
11
|
11
41519-MGE-000 Shim j (2,00) |
41519-MGE-000 |
US $13.16 |
||
|
11
|
11
41520-MGE-000 Shim k (2,03) |
41520-MGE-000 |
US $13.16 |
||
|
11
|
11
41521-MGE-000 Shim l (2,06) |
41521-MGE-000 |
US $13.16 |
||
|
11
|
11
41522-MGE-000 Shim m (2,09) |
41522-MGE-000 |
US $13.16 |
||
|
11
|
11
41523-MGE-000 Shim n (2,12) |
41523-MGE-000 |
US $13.16 |
||
|
11
|
11
41524-MGE-000 Shim o (2,15) |
41524-MGE-000 |
US $13.16 |
||
|
11
|
11
41525-MGE-000 Shim p (0,45) |
41525-MGE-000 |
US $13.16 |
||
|
12
|
12
41530-MCA-000 Shim a, ring gear |
41530-MCA-000 |
US $10.03 |
||
|
12
|
12
41531-MCA-000 Shim b, ring gear |
41531-MCA-000 |
US $10.03 |
||
|
12
|
12
41532-MCA-000 Shim c, ring gear |
41532-MCA-000 |
US $10.03 |
||
|
12
|
12
41533-MCA-000 Shim d, ring gear |
41533-MCA-000 |
US $10.03 |
||
|
12
|
12
41534-MCA-000 Shim e, ring gear |
41534-MCA-000 |
US $10.03 |
||
|
12
|
12
41535-MCA-000 Shim f, ring gear |
41535-MCA-000 |
US $10.03 |
||
|
12
|
12
41536-MCA-000 Shim g, ring gear |
41536-MCA-000 |
US $10.03 |
||
|
12
|
12
41537-MCA-000 Shim h, ring gear |
41537-MCA-000 |
US $10.03 |
||
|
12
|
12
41538-MCA-000 Shim i, ring gear |
41538-MCA-000 |
US $10.03 |
||
|
12
|
12
41539-MCA-000 Shim j, ring gear |
41539-MCA-000 |
US $10.03 |
||
|
12
|
12
41540-MCA-000 Shim k, ring gear |
41540-MCA-000 |
US $10.03 |
||
|
12
|
12
41541-MCA-000 Shim l, ring gear |
41541-MCA-000 |
US $10.03 |
||
|
12
|
12
41542-MCA-000 Shim m, ring gear |
41542-MCA-000 |
US $9.57 |
||
|
12
|
12
41543-MCA-000 Shim n, ring gear |
41543-MCA-000 |
US $10.17 |
||
|
12
|
12
41545-MCA-000 Shim q,ring gear |
41545-MCA-000 |
US $9.71 |
||
|
12
|
12
41546-MCA-000 Shim r,ring gear |
41546-MCA-000 |
US $9.89 |
||
|
12
|
12
41547-MCA-000 Shim s,ring gear |
41547-MCA-000 |
US $9.76 |
||
|
13
|
13
41530-MGE-000 Cap |
41530-MGE-000 |
from US $15.84 |
||
|
14
|
14
42515-MGE-000 Ring, rr, pulser |
42515-MGE-000 |
from US $54.35 |
||
|
15
|
15
90109-ME5-770 Bolt, socket (8x11) |
90109-ME5-770 |
from US $3.85 |
||
|
16
|
16
90124-MGE-300 Bolt, stud (12x48) |
90124-MGE-300 |
from US $10.49 |
||
|
17
|
17
90125-MCA-300 Bolt, stud (12x46) |
90125-MCA-300 |
from US $3.67 |
||
|
18
|
18
90131-MGE-000 Bolt, torx (5x8) |
90131-MGE-000 |
from US $2.89 |
||
|
19
|
19
90132-MCA-000 Screw, flat (6x16) |
90132-MCA-000 |
from US $1.41 |
||
|
20
|
20
90133-MCA-000 Bolt, flange (8x30) |
90133-MCA-000 |
from US $1.23 |
||
|
21
|
21
90134-MGE-000 Bolt, flange (10x35) |
90134-MGE-000 |
from US $2.70 |
||
|
22
|
22
90241-MCH-000 Nut, lock (35mm) |
90241-MCH-000 |
from US $9.81 |
||
|
23
|
23
90242-MCH-000 Nut, lock (75mm) |
90242-MCH-000 |
from US $25.78 |
||
|
24
|
24
90309-375-003 Nut, flange (12mm) |
90309-375-003 |
from US $7.40 |
||
|
25
|
25
90351-MCA-003 O-ring (94.5x2) |
90351-MCA-003 |
from US $4.70 |
||
|
26
|
26
90440-GT4-970 Washer, plain (12mm) |
90440-GT4-970 |
from US $2.96 |
||
|
27
|
27
90471-580-000 Packing8MM |
90471-580-000 |
from US $1.92 |
||
|
28
|
28
90653-MGE-000 Ring, stopper |
90653-MGE-000 |
from US $13.47 |
||
|
29
|
29
90655-MGE-000 Circlip (124,5mm) |
90655-MGE-000 |
from US $9.32 |
||
|
30
|
30
91002-KCW-J11 Bearing (6207) |
91002-KCW-J11 |
from US $19.87 |
||
|
31
|
31
91051-MCA-003 Bearing (100x125x26) |
91051-MCA-003 |
from US $105.40 |
||
|
32
|
32
91052-MGE-003 Bearing (de07) |
91052-MGE-003 |
from US $68.57 |
||
|
33
|
33
91261-MGE-003 Oil seal (32x77x6) |
91261-MGE-003 |
from US $22.30 |
||
|
34
|
34
91265-MGE-013 Oil seal (110x124x7) |
91265-MGE-013 |
from US $34.14 |
||
|
35
|
35
91352-MGE-003 O-ring (21,5x2,9) |
91352-MGE-003 |
from US $2 |
||
|
36
|
36
91353-MGE-003 O-ring (76,5x2) |
91353-MGE-003 |
from US $3.63 |
||
|
37
|
37
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
38
|
38
94303-10160 Dowel pin10X16 |
94303-10160 |
from US $1.04 |
||
|
39
|
39
96001-060-120-7 BoltFLANGE, 6X12 |
96001-060-120-7 |
from US $0.59 |
