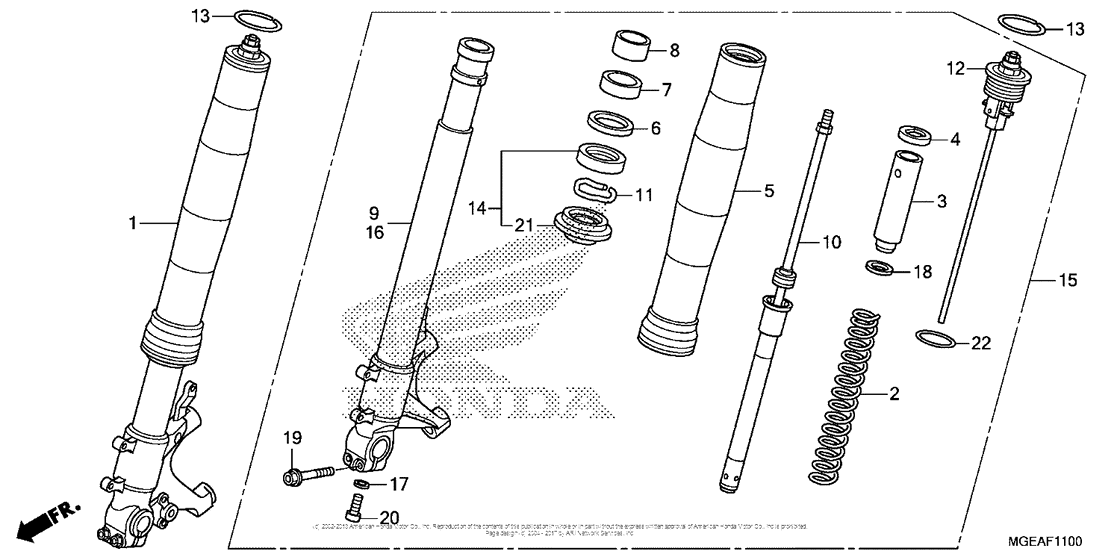

Front Fork Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-MGE-305 Fork, r, fr, (c00) |
51400-MGE-305 |
from US $1,099.65 |
||
|
2
|
2
51401-MGE-003 Spring, fr, fork |
51401-MGE-003 |
US $79.42 |
||
|
3
|
3
51403-MGE-003 Collar, spring |
51403-MGE-003 |
from US $11.41 |
||
|
4
|
4
51406-MGE-003 Seat, spring collar |
51406-MGE-003 |
from US $2.59 |
||
|
5
|
5
51410-MGE-003 Tube (outer) |
51410-MGE-003 |
US $678.15 |
||
|
6
|
6
51412-MGE-003 Ring, back-up |
51412-MGE-003 |
from US $8.29 |
||
|
7
|
7
51414-MGE-003 Bush, guide |
51414-MGE-003 |
from US $8.29 |
||
|
8
|
8
51415-MGE-003 Bush, slider |
51415-MGE-003 |
from US $9.47 |
||
|
9
|
9
51425-MGE-003 Pipe, r, slide |
51425-MGE-003 |
from US $300.56 |
||
|
10
|
10
51430-MGE-003 Damper, fr. |
51430-MGE-003 |
from US $454.78 |
||
|
11
|
11
51447-KZ4-711 Ring, oil seal stop |
51447-KZ4-711 |
from US $3.48 |
||
|
12
|
12
51450-MGE-003 Bolt, fr. fork |
51450-MGE-003 |
from US $108.12 |
||
|
13
|
13
51455-MW4-003 Ring, stopper |
51455-MW4-003 |
from US $6.66 |
||
|
14
|
14
51490-MGE-003 Seal set, fr, fork |
51490-MGE-003 |
from US $20.45 |
||
|
15
|
15
51500-MGE-305 Fork, l, fr, (c00) |
51500-MGE-305 |
from US $1,099.65 |
||
|
16
|
16
51525-MGE-003 Pipe, l, slide |
51525-MGE-003 |
from US $300.56 |
||
|
17
|
17
52442-KA3-731 Washer, oil bolt |
52442-KA3-731 |
from US $2 |
||
|
18
|
18
52442-MGE-003 Washer |
52442-MGE-003 |
from US $1.92 |
||
|
19
|
19
90107-MGE-000 Bolt, flange (8x40) |
90107-MGE-000 |
from US $2.44 |
||
|
20
|
20
90116-KK0-004 Bolt, socket (10x25) |
90116-KK0-004 |
from US $3.77 |
||
|
21
|
21
91254-MGE-003 Dust seal |
91254-MGE-003 |
from US $12.88 |
||
|
22
|
22
91258-KZ4-711 O-ring (39.7x3.5) |
91258-KZ4-711 |
from US $5.03 |
