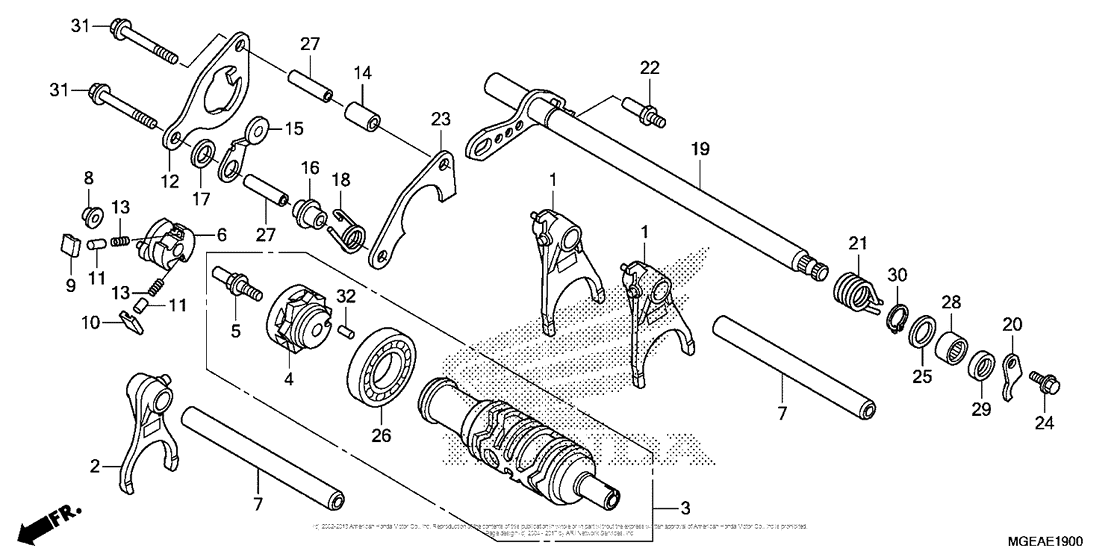

Gearshift Drum (1) Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-MGE-000 Fork, gearshift |
24211-MGE-000 |
from US $62.70 |
||
|
2
|
2
24212-MGE-000 Fork |
24212-MGE-000 |
from US $62.70 |
||
|
3
|
3
24310-MGH-640 Drum, gearshift |
24310-MGH-640 |
from US $145.04 |
||
|
4
|
4
24312-MGE-003 Center, shift drum |
24312-MGE-003 |
from US $28.58 |
||
|
5
|
5
24315-HA0-000 Pin, shifter |
24315-HA0-000 |
from US $4.77 |
||
|
6
|
6
24321-KT8-030 Shifter, drum |
24321-KT8-030 |
from US $37.67 |
||
|
7
|
7
24321-MGE-000 Shaft |
24321-MGE-000 |
from US $14.14 |
||
|
8
|
8
24322-MM4-000 Collar, shifter |
24322-MM4-000 |
from US $2.07 |
||
|
9
|
9
24324-KA3-711 Pawl a, ratchet |
24324-KA3-711 |
from US $4.95 |
||
|
10
|
10
24325-KA3-711 Pawl b, ratchet |
24325-KA3-711 |
from US $6.96 |
||
|
11
|
11
24326-KBH-901 Plunger, pawl |
24326-KBH-901 |
from US $3.74 |
||
|
12
|
12
24328-MGE-000 Plate, change guide |
24328-MGE-000 |
from US $5.25 |
||
|
13
|
13
24329-KA3-740 Spring, pawl plunger |
24329-KA3-740 |
from US $1.92 |
||
|
14
|
14
24329-KT8-000 Collar |
24329-KT8-000 |
from US $3.70 |
||
|
15
|
15
24430-MGE-000 Stopper, drum |
24430-MGE-000 |
from US $11.25 |
||
|
16
|
16
24434-MGE-000 Collar, drum stopper |
24434-MGE-000 |
from US $5.56 |
||
|
17
|
17
24435-MGE-000 Collar |
24435-MGE-000 |
from US $2.59 |
||
|
18
|
18
24436-MGE-000 Spring |
24436-MGE-000 |
from US $3.18 |
||
|
19
|
19
24610-MGE-010 Spindle, gearshift |
24610-MGE-010 |
US $115.18 |
||
|
20
|
20
24612-MAL-600 Plate, spindle |
24612-MAL-600 |
from US $4.74 |
||
|
21
|
21
24651-MAS-E00 Spring, shift return |
24651-MAS-E00 |
from US $4.07 |
||
|
22
|
22
24652-035-000 Pin |
24652-035-000 |
from US $4.04 |
||
|
23
|
23
24655-MGE-000 Plate |
24655-MGE-000 |
from US $5.45 |
||
|
24
|
24
90031-MGE-000 Bolt, flange (6x14) |
90031-MGE-000 |
from US $2 |
||
|
25
|
25
90451-155-000 Washer, 14mm |
90451-155-000 |
from US $3.03 |
||
|
26
|
26
91008-374-003 Bearing (16005) |
91008-374-003 |
from US $10.21 |
||
|
27
|
27
91104-KT7-000 Pin, dowel (8x31.5) |
91104-KT7-000 |
from US $2.66 |
||
|
28
|
28
91106-MCF-003 Bearing (14x22x16) |
91106-MCF-003 |
from US $10.06 |
||
|
29
|
29
91203-KK3-830 Oil seal, 14x22x5 |
91203-KK3-830 |
from US $1.60 |
||
|
30
|
30
94510-14000 CirclipEXTERNAL, 14MM |
94510-14000 |
from US $0.22 |
||
|
31
|
31
95701-060-450-7 BoltFLANGE, 6X45 |
95701-060-450-7 |
from US $0.74 |
||
|
32
|
32
9622040080 Roller, 4x8 |
9622040080 |
from US $0.22 |
