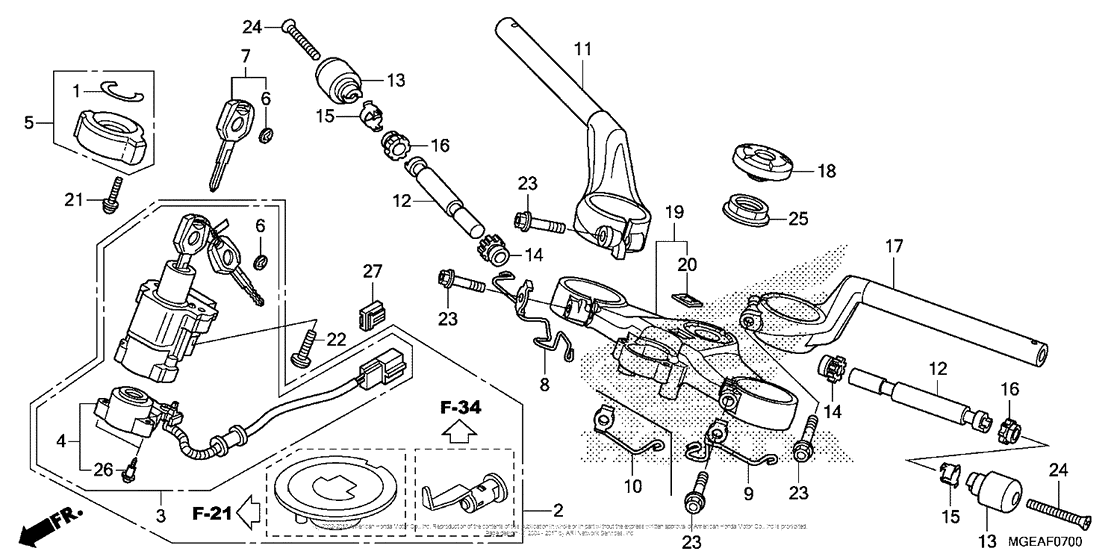

Handlebar + Top Bridge Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30433-MBW-602 Seal |
30433-MBW-602 |
from US $3.18 |
||
|
2
|
2
35010-MGE-C30 Lock set |
35010-MGE-C30 |
from US $426.62 |
||
|
3
|
3
35100-MGE-671 Switch assy |
35100-MGE-671 |
US $271.35 |
||
|
4
|
4
35101-MGE-641 Base, contact |
35101-MGE-641 |
from US $63.51 |
||
|
5
|
5
35106-MAT-A00 Cover |
35106-MAT-A00 |
from US $6.70 |
||
|
6
|
6
35113-MGP-000 Emblem, key |
35113-MGP-000 |
from US $3.85 |
||
|
7
|
7
35121-MGE-C31 Key, blank |
35121-MGE-C31 |
from US $40.39 |
||
|
8
|
8
45159-MGE-020 Guide comp r, fr h |
45159-MGE-020 |
from US $13.66 |
||
|
9
|
9
45160-MGE-000 Guide, l, fr, hose |
45160-MGE-000 |
from US $12.97 |
||
|
11
|
11
53100-MGE-307 Handlebar, r. |
53100-MGE-307 |
from US $225.28 |
||
|
12
|
12
53104-MV4-000 Weight b, handlebar |
53104-MV4-000 |
from US $23.39 |
||
|
13
|
13
53105-MEE-940 Weight, handlebar |
53105-MEE-940 |
from US $15.64 |
||
|
14
|
14
53107-MB6-630 Rubber |
53107-MB6-630 |
from US $1.87 |
||
|
15
|
15
53108-MJ0-000 Ring |
53108-MJ0-000 |
from US $4.44 |
||
|
16
|
16
53109-MV4-000 Rubber b |
53109-MV4-000 |
from US $2.66 |
||
|
17
|
17
53150-MGE-305 Handlebar, l. (c00) |
53150-MGE-305 |
from US $225.28 |
||
|
18
|
18
53232-MGE-010 Cap, steering nut |
53232-MGE-010 |
from US $8.29 |
||
|
19
|
19
53300-MGE-D40 Bridge, fork top |
53300-MGE-D40 |
from US $165.92 |
||
|
20
|
20
86150-KPG-901 Emblem, product |
86150-KPG-901 |
from US $2.07 |
||
|
20
|
20
86150-KPG-902 Emblem, product |
86150-KPG-902 |
from US $1.89 |
||
|
21
|
21
90020-MBW-610 Screw-washer (5x22) |
90020-MBW-610 |
from US $1.55 |
||
|
22
|
22
90107-MBG-000 Bolt, one-way (8mm) |
90107-MBG-000 |
from US $2.37 |
||
|
23
|
23
90108-MR7-000 Bolt, flange (8x40) |
90108-MR7-000 |
from US $2.03 |
||
|
24
|
24
90191-MGE-000 Screw, oval (6x60) |
90191-MGE-000 |
from US $2.74 |
||
|
25
|
25
90304-MJ4-670 Nut, steering stem |
90304-MJ4-670 |
from US $10.74 |
||
|
26
|
26
91059-KY2-711 Screw, tap (3x16) |
91059-KY2-711 |
from US $2.15 |
||
|
27
|
27
91554-SM4-003 HolderBRACKET (RED) |
91554-SM4-003 |
from US $2.52 |
