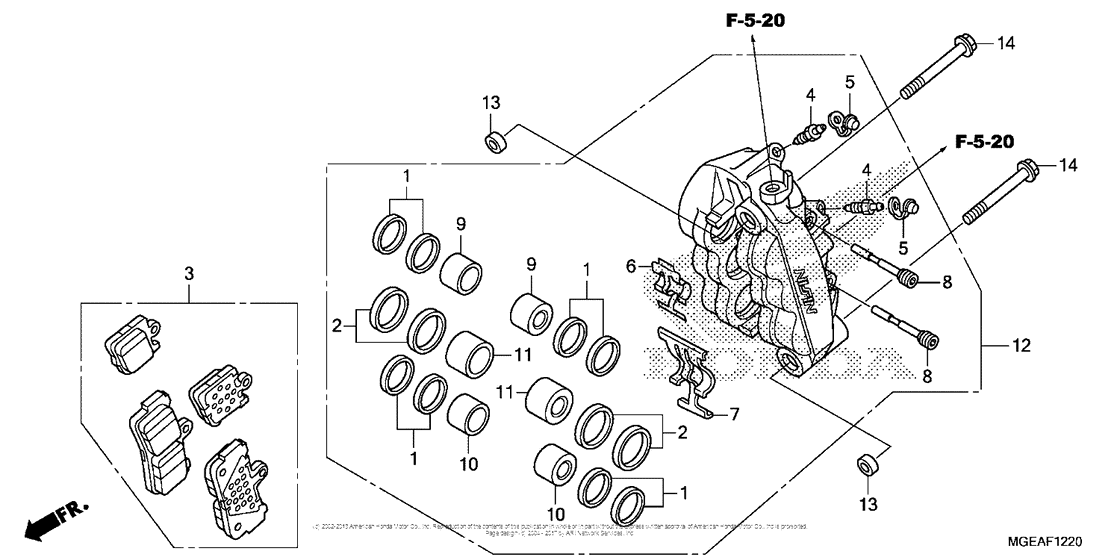

Left Front Brake Caliper Diagram Honda VFR1200 VFR
- Year
- 2014
- Model code
- VFR1200F AC
- Sales region
- USA
- Frame
- JH2SC631 - EK400001
- Engine Capacity
- 1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06451-MGE-006 Seal set (27) |
06451-MGE-006 |
from US $6.53 |
||
|
2
|
2
06452-MGE-006 Seal set (30) |
06452-MGE-006 |
from US $6.53 |
||
|
3
|
3
06455-MGE-006 Pad Set, Fr. |
06455-MGE-006 |
from US $91.29 |
||
| replacement | |||||
|
3
|
3
06455-MGE-016 Pad Set, Fr. |
06455-MGE-016 |
from US $94.03 |
||
|
4
|
4
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
5
|
5
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
6
|
6
45113-MGE-006 Spring, pad |
45113-MGE-006 |
US $9.67 |
||
|
7
|
7
45114-MGE-006 Spring, pad |
45114-MGE-006 |
US $9.67 |
||
|
8
|
8
45115-MGE-006 Pin, hanger |
45115-MGE-006 |
from US $6.36 |
||
|
9
|
9
45116-MGE-006 Piston (27mm) |
45116-MGE-006 |
from US $21.08 |
||
|
10
|
10
45118-MGE-006 Piston (27mm) |
45118-MGE-006 |
from US $22.96 |
||
|
11
|
11
45119-MGE-006 Piston (30mm) |
45119-MGE-006 |
from US $21.90 |
||
|
12
|
12
45150-MGE-006 Caliper sub-assy, |
45150-MGE-006 |
from US $557.57 |
||
|
13
|
13
51497-MEL-000 Spacer, fr. fork |
51497-MEL-000 |
from US $6.36 |
||
|
14
|
14
90133-MGE-000 Bolt, flange (10x67) |
90133-MGE-000 |
from US $4.88 |
||
